9.13.2 Update the inverter
NOTE
Make sure that there is sufficient DC power (100 W). Also note that the sequence of the firmware update
for the associated *bin files must be observed. This process takes approx. 10 minutes. The files must not be
renamed.
Before updating the inverter, the firmware of the communication unit needs to be updated.
NOTE
With the communication unit plugged in, no communication via RS485 is possible during the firmware
update.
The firmware update for the communication unit has been carried out successfully.
1. Select <Firmware Update>.
2. Select the <Inverter> tab and call up <Local upgrade> for inverters.
3. In the firmware path, locate and open the file masterVxxx-xxxxx-xx.bin. The upload begins.
6. Open <Local upgrade> for the <Safety> file.
7. In the firmware path, locate and open the file safetyVxxx-xxxxx-xx.bin . The upload begins.
8. After completing the update, check the uploaded firmware versions of each *bin file against the version in your
firmware path. Repeat the corresponding process if any deviation is found.
9. The upgrade process must be confirmed.
Caution: During the upgrade, the info – Update in progress – is displayed. Only after restarting the device does the
message appear – Update completed successfully.
» Following successful update, the device is ready for operation.

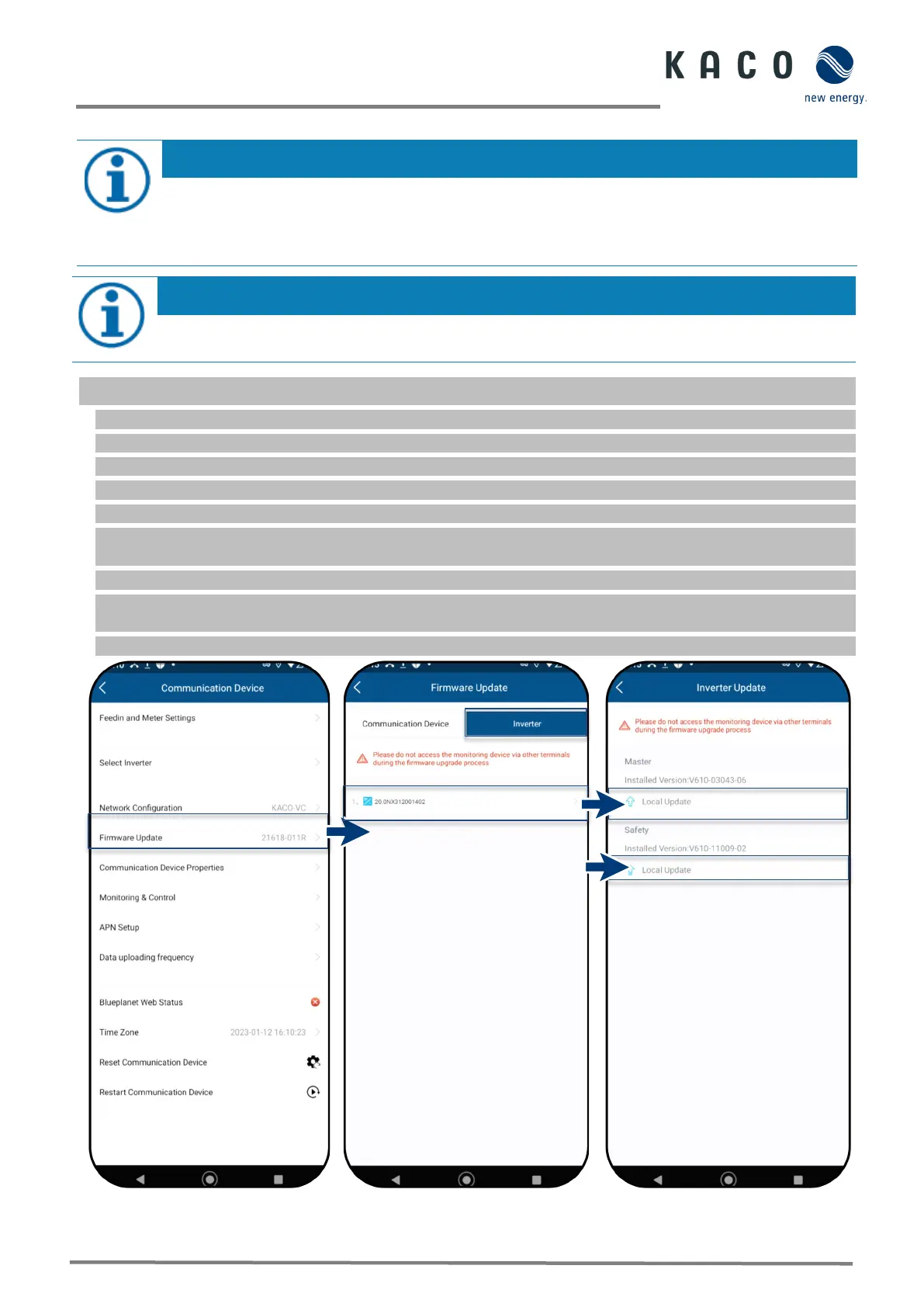

Fig. 135. Select firmware update
Fig. 136. Select firmware update for
inverters
Fig. 137. Firmware for inverters and
associated security update
