Page 13 KACO blueplanet 3.0 NX3 M2 KACO blueplanet 5.0 NX3 M2 KACO blueplanet 8.0 NX3 M2 KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2 KACO blueplanet 20.0 NX3 M2
6.4 Installing and securing the device
CAUTION
Risk of injury from improper lifting and transport.
If the device is lifted improperly, it can tilt and result in a fall.
› Always lift the device vertically using the openings provided.
› Use a climbing aid for the chosen installation height.
› Wear protective gloves and safety shoes when lifting and lowering the device.

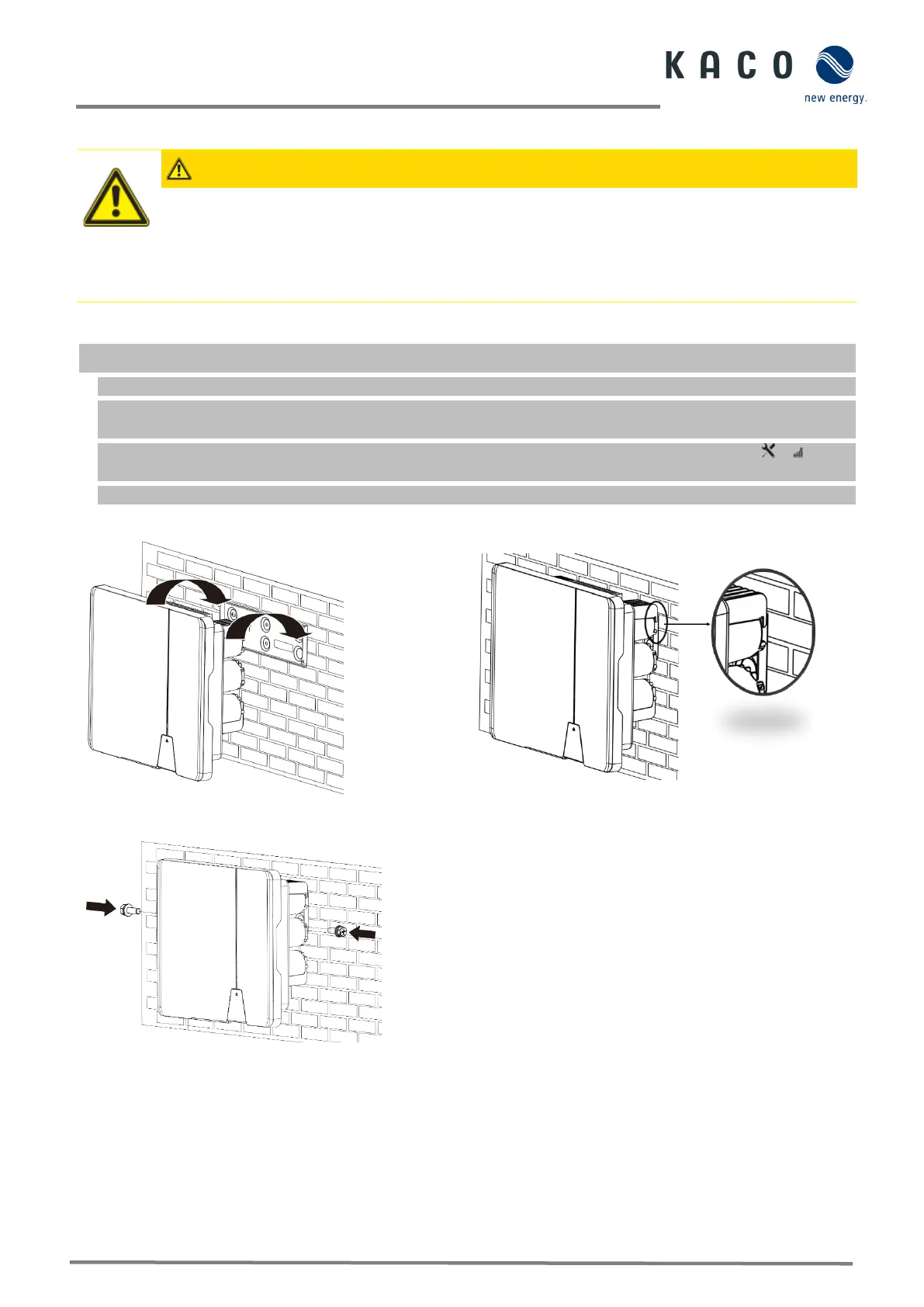

Lifting and installing the device
The mount has been installed.
1 Lift the device using the recesses. Observe the centre of gravity!
2 Fit the device onto the mounting bracket. Check both sides of the heat sink to ensure that it is securely in place.
[see Figure 10].
3 Insert the screw provided into the wall bracket and fasten the device to secure against displacement. [ P / 2.5
Nm]
NOTE: At this point, the screw described above can also be replaced by a special screw as anti-theft protection.
» Device is installed. Proceed with the electrical installation.
Fig. 10. Mount the inverter to the wall bracket
Fig. 11. Check that the device is secure.
Fig. 12. Secure the inverter
