Page 21 KACO blueplanet 3.0 NX3 M2 KACO blueplanet 5.0 NX3 M2 KACO blueplanet 8.0 NX3 M2 KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2 KACO blueplanet 20.0 NX3 M2
The device has been installed on the mount.
1 Insert the grounding conductor into the suitable terminal lug and crimp
the contact.
2 Align the terminal lug with the grounding conductor on the screw.
3 Tighten it firmly into the housing [ P_2/ 2.5 Nm].
» The housing is included in the equipotential bonding
Earthing ground conductor

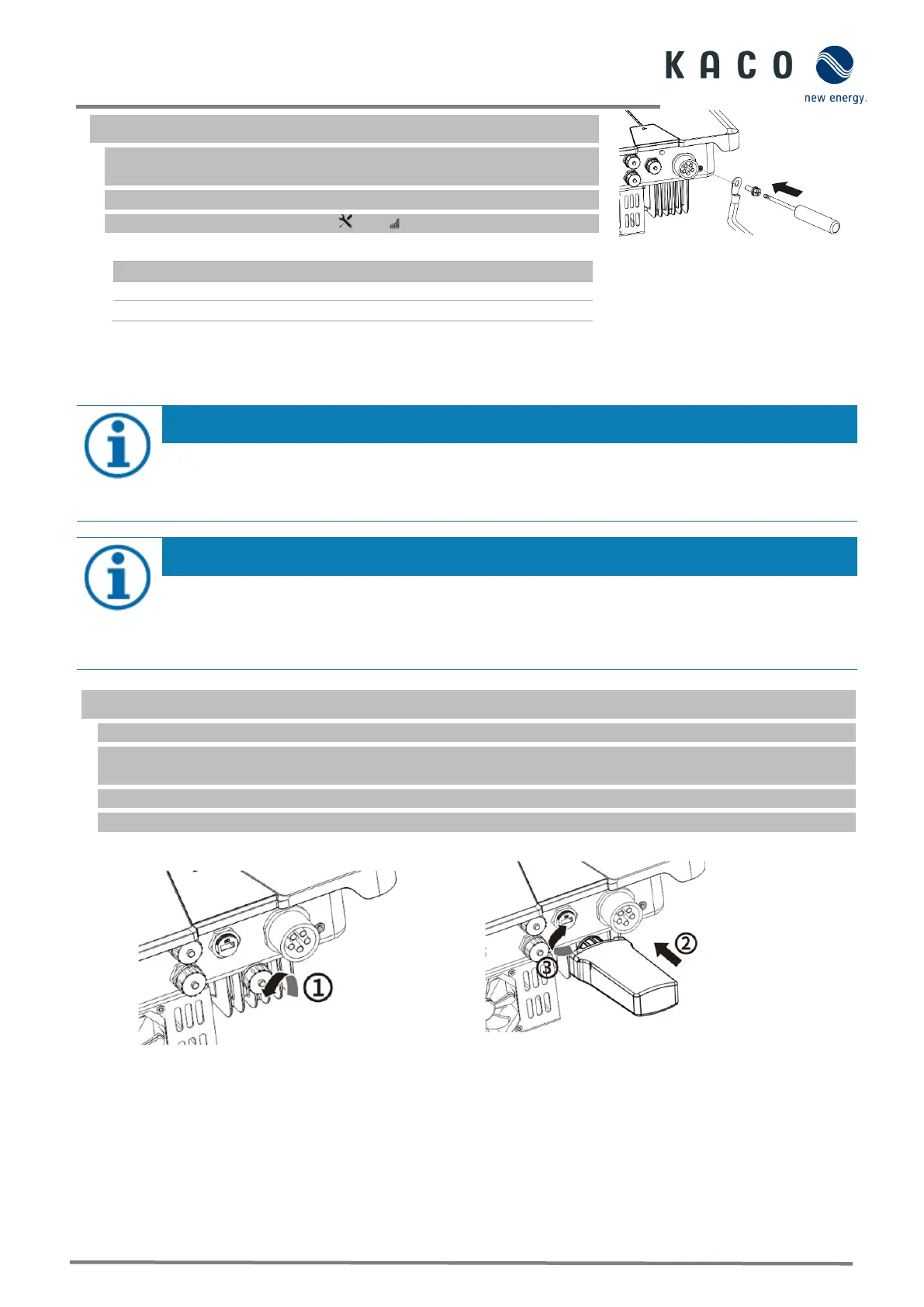

Fig. 27. Connect the grounding
7.7 Connecting the interfaces
7.7.1 Connection for communication unit
NOTE
Damage to the inverter due to electrostatic discharge
Components inside the inverter can be damaged beyond repair by electrostatic discharge.
› Earth yourself before touching the components.
NOTE
Damage to the communication unit due to rotation of the stick housing
When the communication unit is attached to the inverter, the nut on the stick must be turned. The
communication unit can be damaged if you rotate the housing of the stick.
› Do not rotate the actual communication unit when attaching it to the device.
The device has been installed on the mount.
1 Remove the cap on the COM3 connector.
2 Insert the communication unit into the existing connection and screw it tightly into the connection using the nut on
the module.
NOTE: Do not rotate the actual communication unit when attaching it to the device.
3 Ensure that the communication unit is securely connected and the label on the module can be seen.
» The communication unit is connected to the device.
Fig. 29. Connect the communication unit
