9.12.1 Connection conditions
Note: The suitable voltage and frequency
range for grid operation can be set in
accordance with the requirements of the
local grid operator.
 The <Settings for> menu is opened.
1. Select <Connection conditions>.
2. Set parameters for min./max. start
voltage and start frequency.
3. Save settings with <Confirm>.
» Grid parameters set.

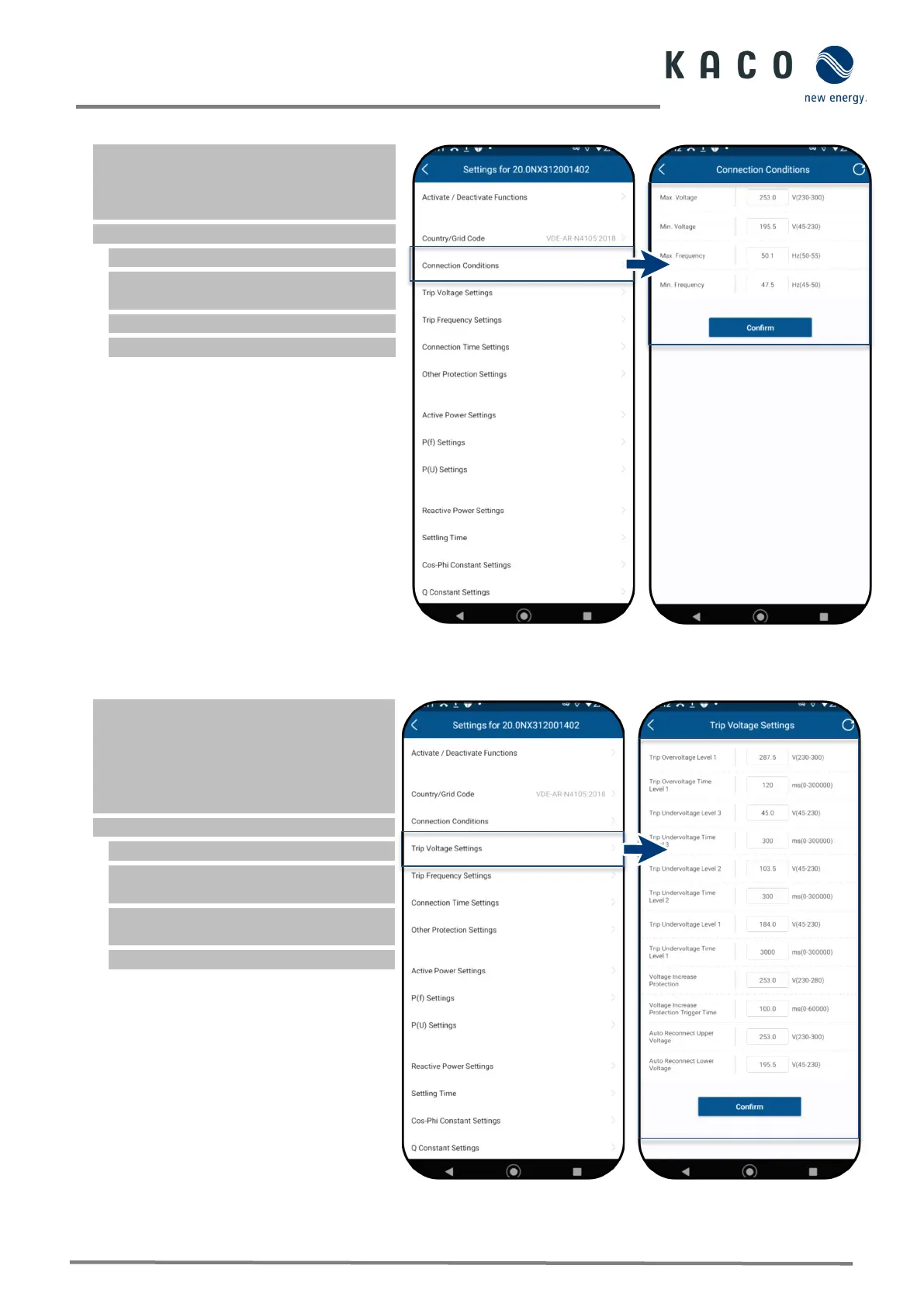

Fig. 96. Connection conditions
Fig. 97. Setting grid parameters
9.12.2 Voltage shutdown settings
Note: There are three thresholds for
overvoltage and undervoltage protection. The
first threshold value indicates the lower
range. The middle threshold range is freely
adjustable. The third threshold value
indicates the upper range.
 The <Settings for> menu is opened.
1. Select <Voltage shutdown settings>.
2. Set min. and max. shutdown time with
associated voltage for each phase.
3. Confirm the settings with the <Confirm>
button.
» Voltage protection defined.
Fig. 98. Select voltage shutdown
settings
Fig. 99. Define voltage range and
shutdown times
