Maintenance
10 --- 73
Screw on the new filter using hand pressure only. Do not use any tool.
The oil filter is turned clockwise to tighten.
Start the machine and carry out a test run
Close all access doors; replace and secure all removable panels.
Open the user’s shut---off valve between the machine and the air main.
Switch on the power supply and reset the maintenance interval counter.
Allow the machine to idle for at least one minute. Then switch to LOAD.
After about five minutes, check the oil level and top up if necessary.
Carry out a visual check for leaks.
10.15 Changing the Oil Separator Cartridge
Material: Spare parts
Cleaning rags
Pre---condition: Machine switched off.
Mains isolator locked off
Machine fully vented (no pressure).
Pressure gauge on the oil separator tank indicates zero.
Machine cooled down.
The life of the oil separator cartridge is influenced by:
contamination in the air drawn into the compressor,
adherence to the schedule of oil and air filter changes,

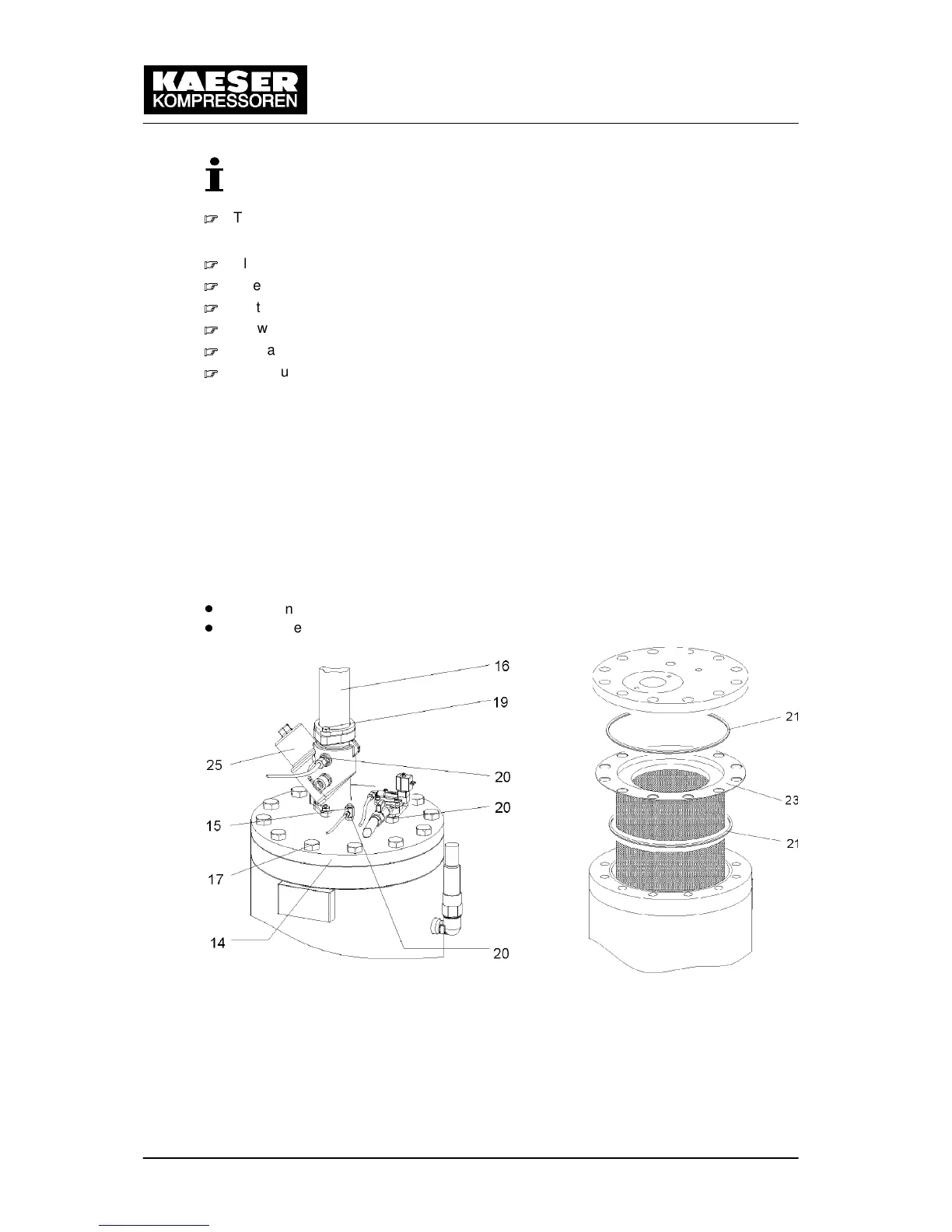

Fig. 36 Changing the Oil Separator Cartridge
14 Cover 19 Pipe fitting
15 Dirt trap 20 Fitting
16 Air pipe 21 Gasket
17 Retaining screw 23 Oil separator cartridge
25 Minimum pressure/check valve
