The life of the oil separator cartridge is influenced by:
■ contamination in the air drawn into the compressor,
■ Adherence to the changing intervals for:
─ Cooling oil
─ Oil filter
─ Air filter
The machine must be isolated from the compressed air network and completely vented be‐
fore undertaking any work on the pressure system.
Material Spares
Cleaning cloth
Precondition The supply disconnecting device is switched off.
The disconnecting device is locked in the off position.
A check has been made that no voltage is present.
The machine is fully vented,
the pressure gauge on the oil separator tank reads 0 psi.

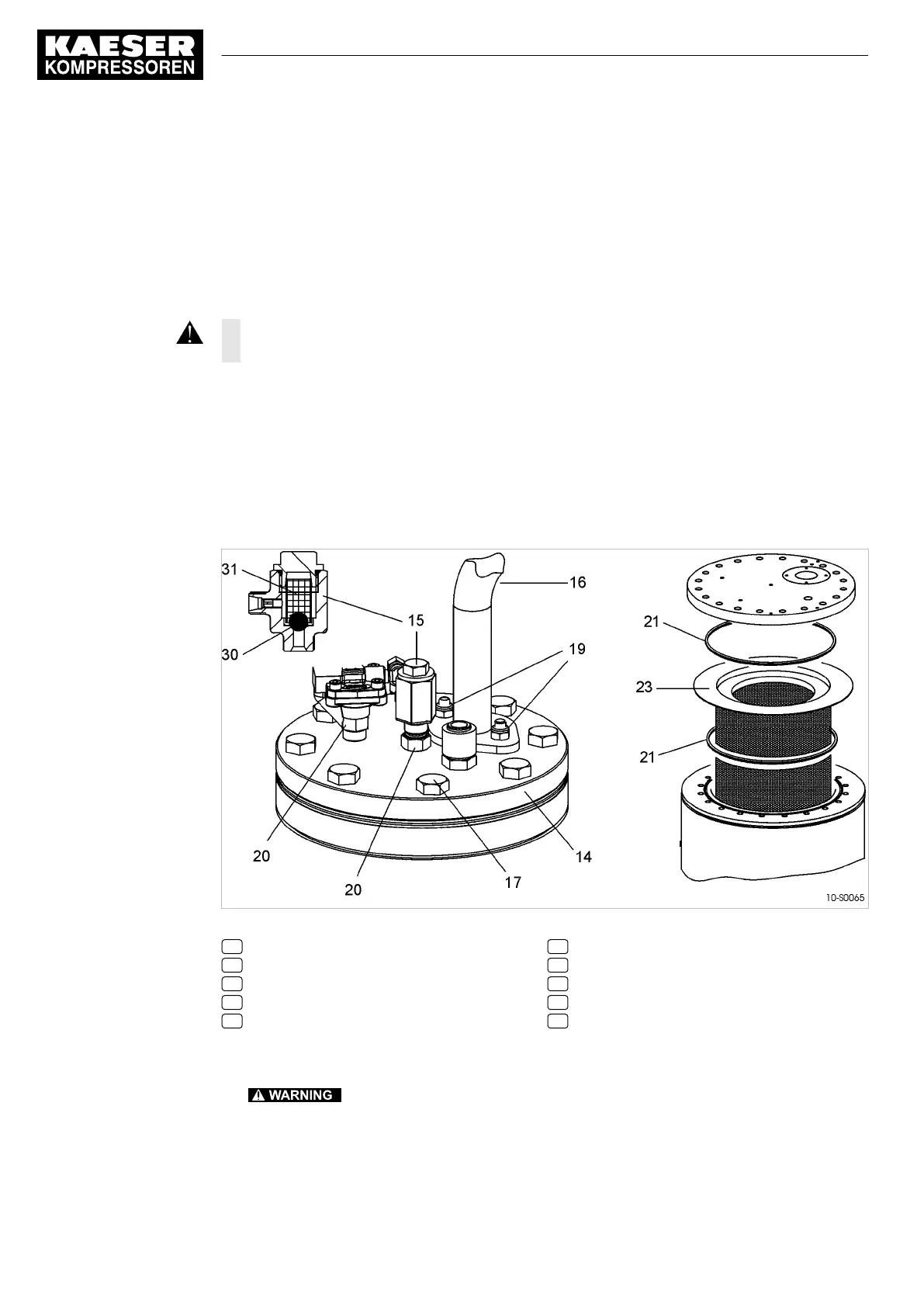

Fig. 33 Changing the oil separator cartridge
14 Cover
15 Dirt trap
16 Air pipe
17 Retaining screw
19 Self-locking nut
20 Screw connection
21 seal
23 Oil separator cartridge
30 Ball (functioning as a check valve)
31 Strainer
Changing the oil separator cartridge
1.
Compressed air!
Compressed air and pressurized devices can cause serious injury or death if the contained en‐
ergy is suddenly released.
➤ Vent all pressurized components and chambers completely.
10 Maintenance
10.18 Changing the oil separator cartridge
74
Operator Manual Screw Compressor
SM Tri-Voltage, SIGMA CONTROL 2 9_5875 33 USE
