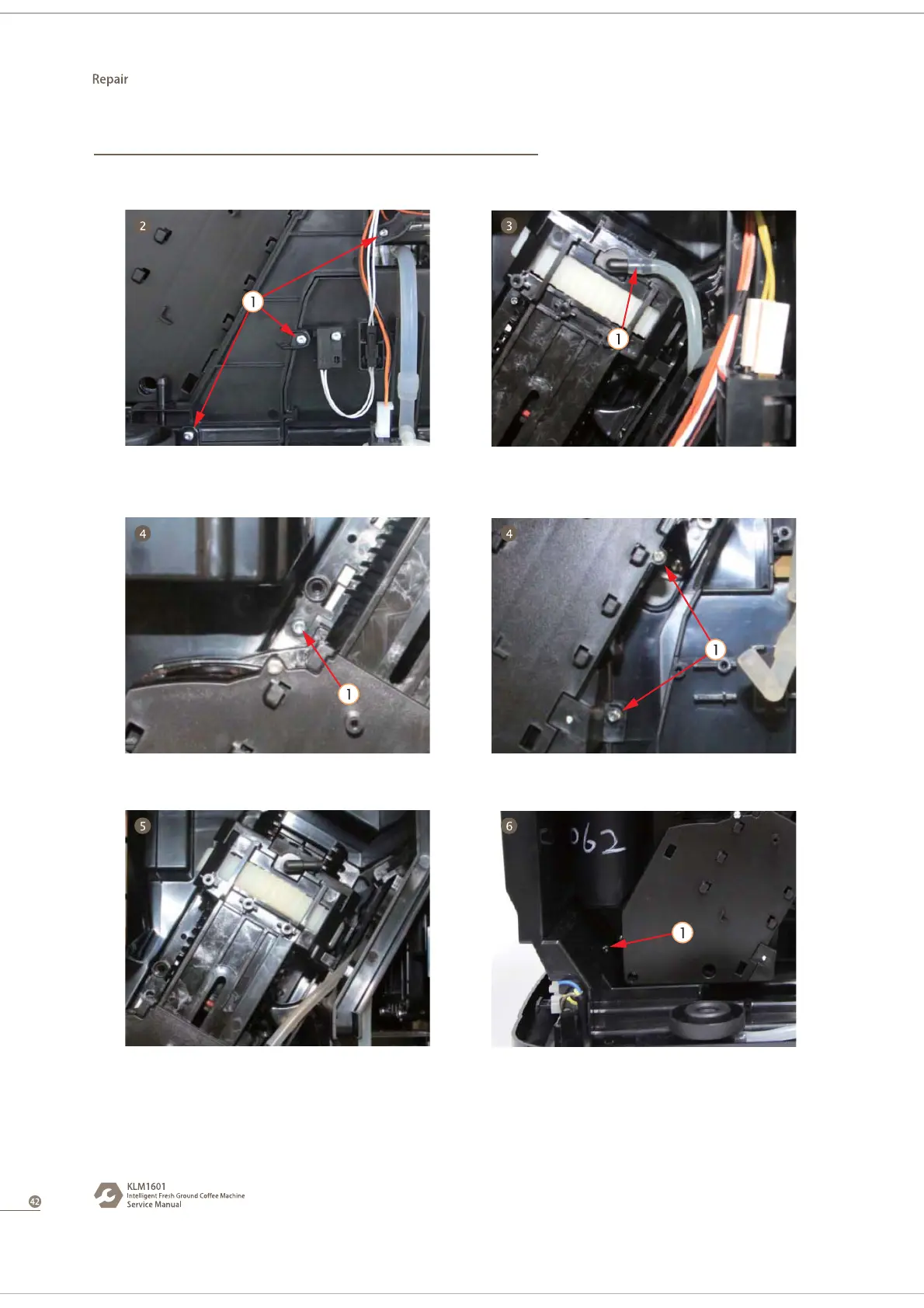

4.2.3 Disassemble brew unit
1. Refer to 4.2.1- Disassemble exterior parts of the machine
2. Disassemble 3 screws, and take
out frame support
3. Pull out silicon pipe from brew unit
4. Disassemble 3 screws from brew unit
5. Pull the brewing unit outward and
rotate the gear clockwise to the
position as the picture shows
6. Disassemble 1 screw from backside
and take out brew unit
