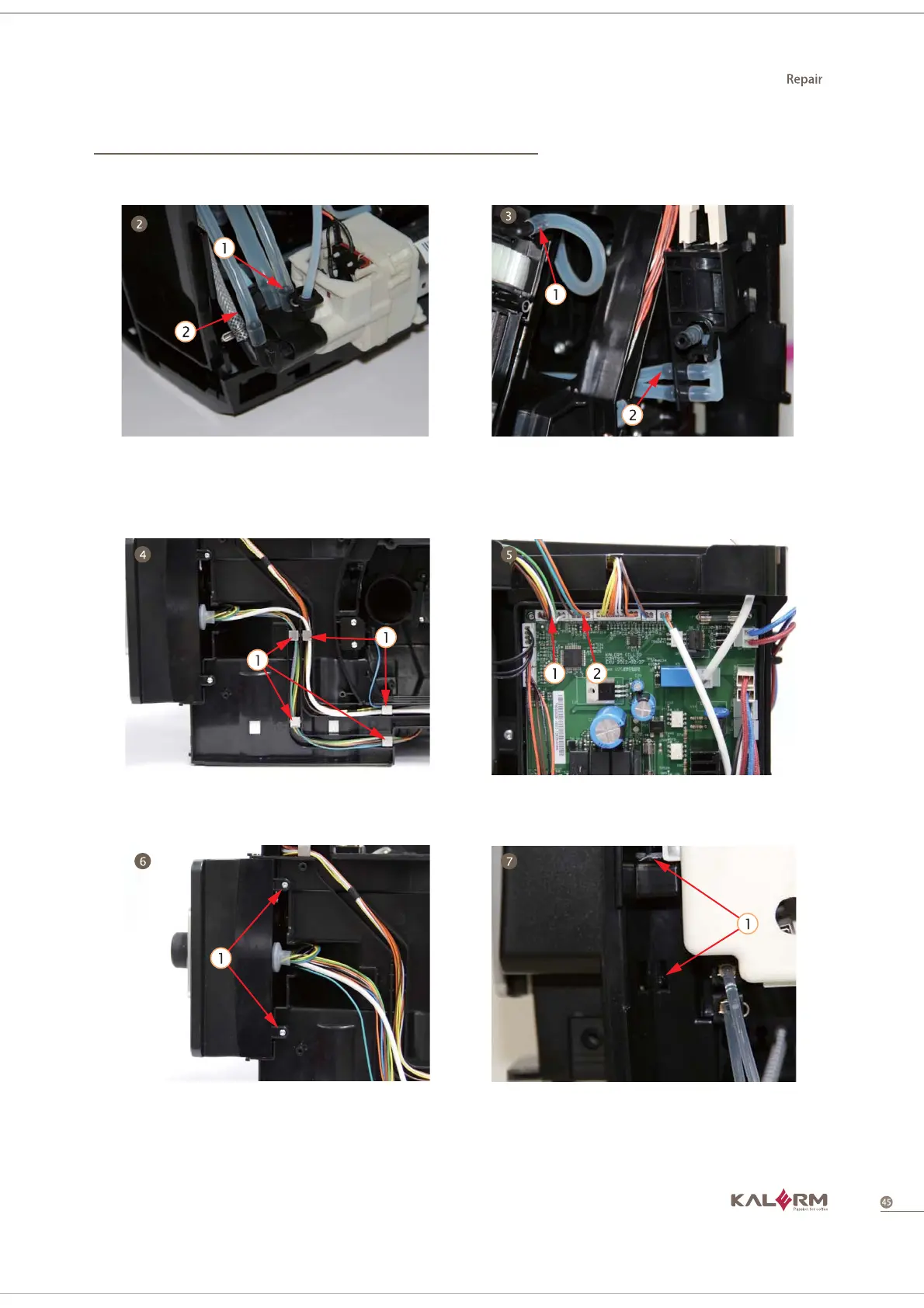

2. Pull out two silicon pipes from the
dispenser valve on the right side of
the machine
3. Pull out two silicon pipes from the
left side of the machine
4. Disassemble 5 cable racks 5. Pull out terminal on PCBA which
connected to control panel
6. Disassemble 2 screws from the
support
7. Disassemble left and right hooks on
the support and take out control panel
group
1. Refer to 4.2.1-disassemble exterior parts
4.2.8 Disassemble control panel group
