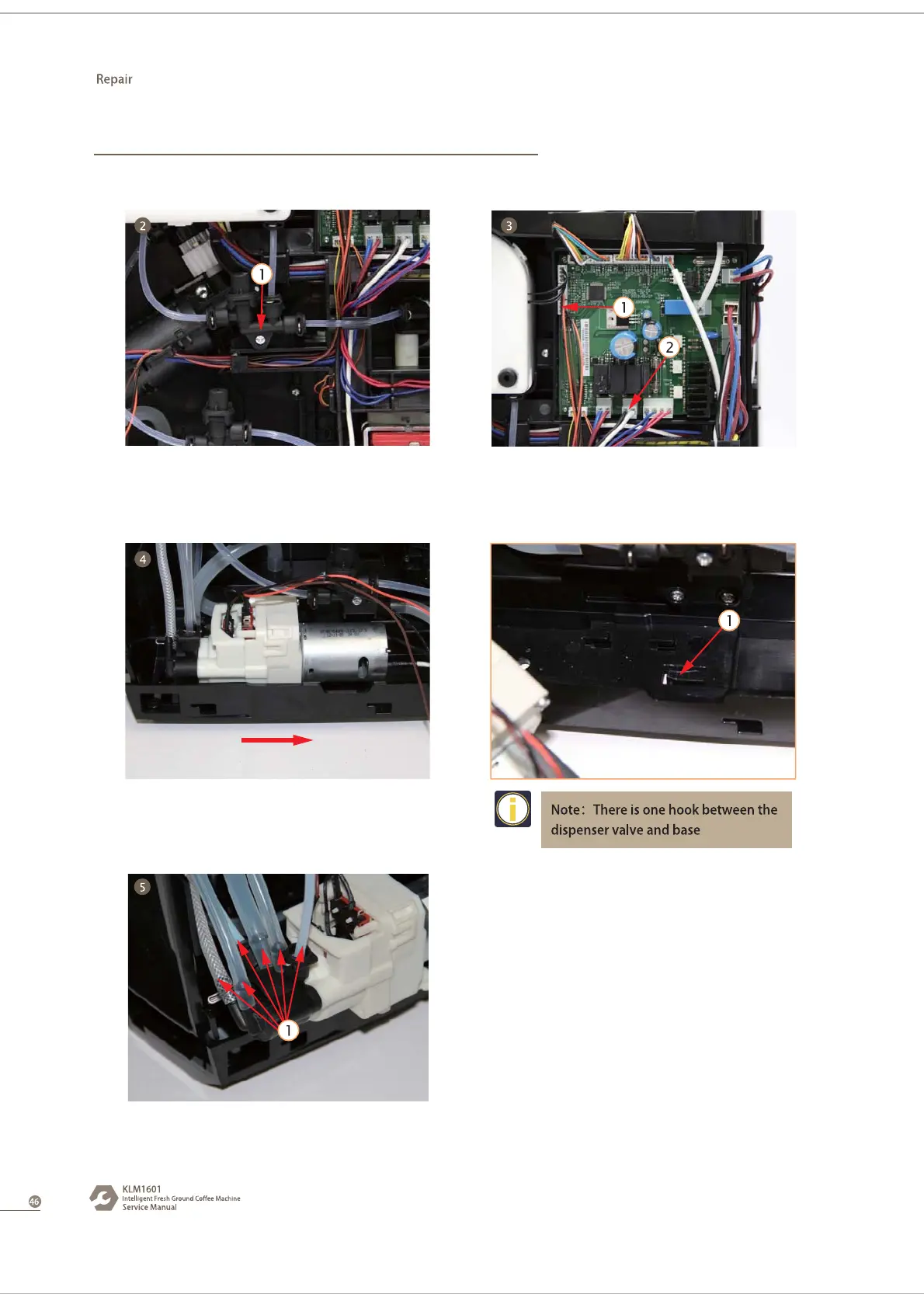

4.2.9 Disassemble dispenser valve group
1. Refer to 4.2.1.1-4.2.1.4-disassemble right side section
2. Disassemble 1 screw from dispenser
valve 3W so that the wire can be
taken out from the cable rack
3. Pull out dispenser valve terminal on
PCBA, and take it out from the cable
rack
4. Move the dispenser valve group
to the right side according to the
direction of the arrow
5. Pull out 5 pipes from dispenser
valve, and take out dispenser valve
group
To Next Page
