4.3.3 Grinder group

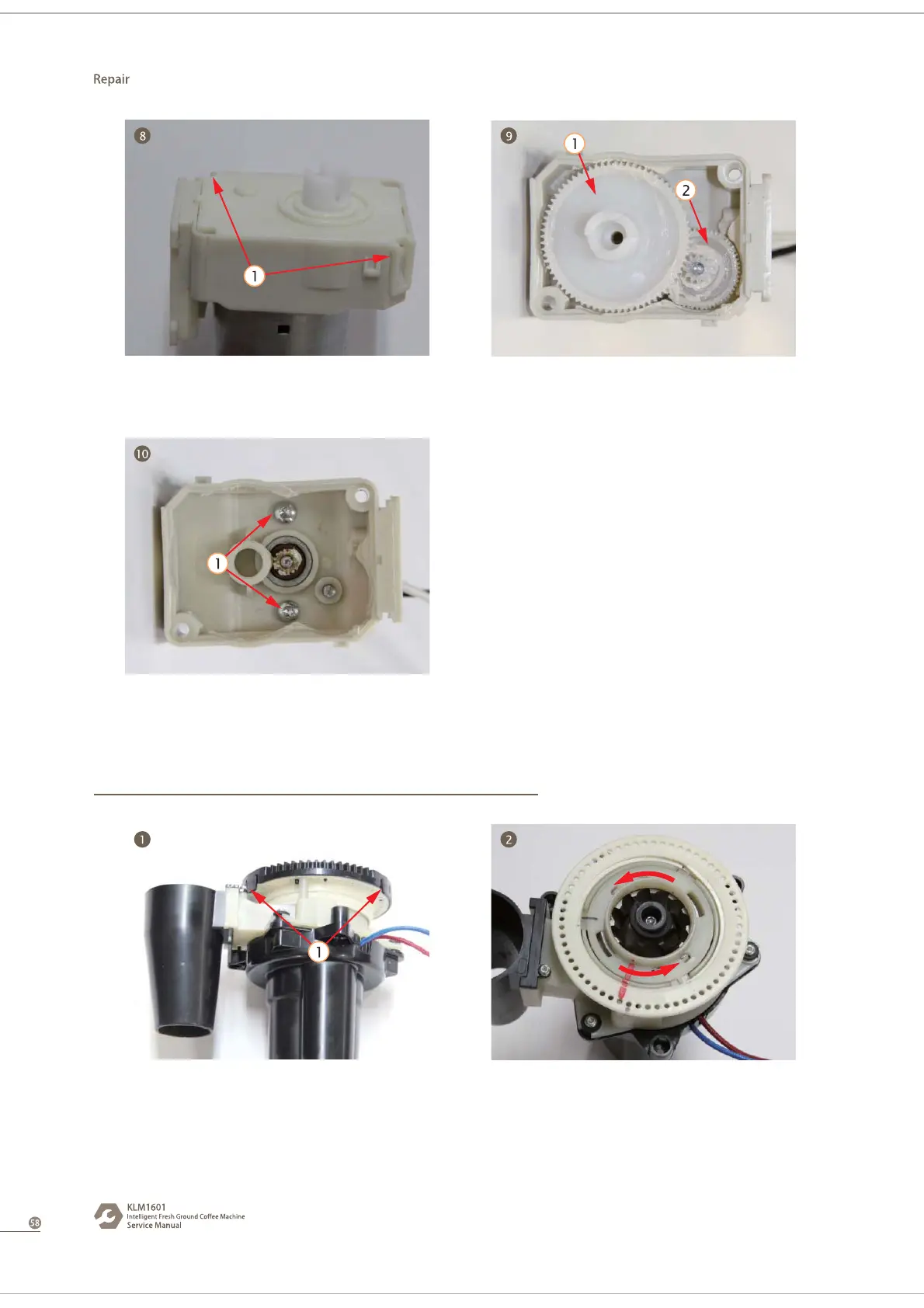

8. Disassemble the hook on gear
box lid, and take out gear box lid
9. Take out dispenser valve gear A
and dispenser valve gear B
10. Disassemble 2 screws inside the
gear box, and take out the motor
for dispenser valve
1. Disassemble the 3 hooks from the
grinder adjustment sector and take
out the grinder adjustment sector
2. Rotate the upper burr group
anticlockwise
To Next Page
