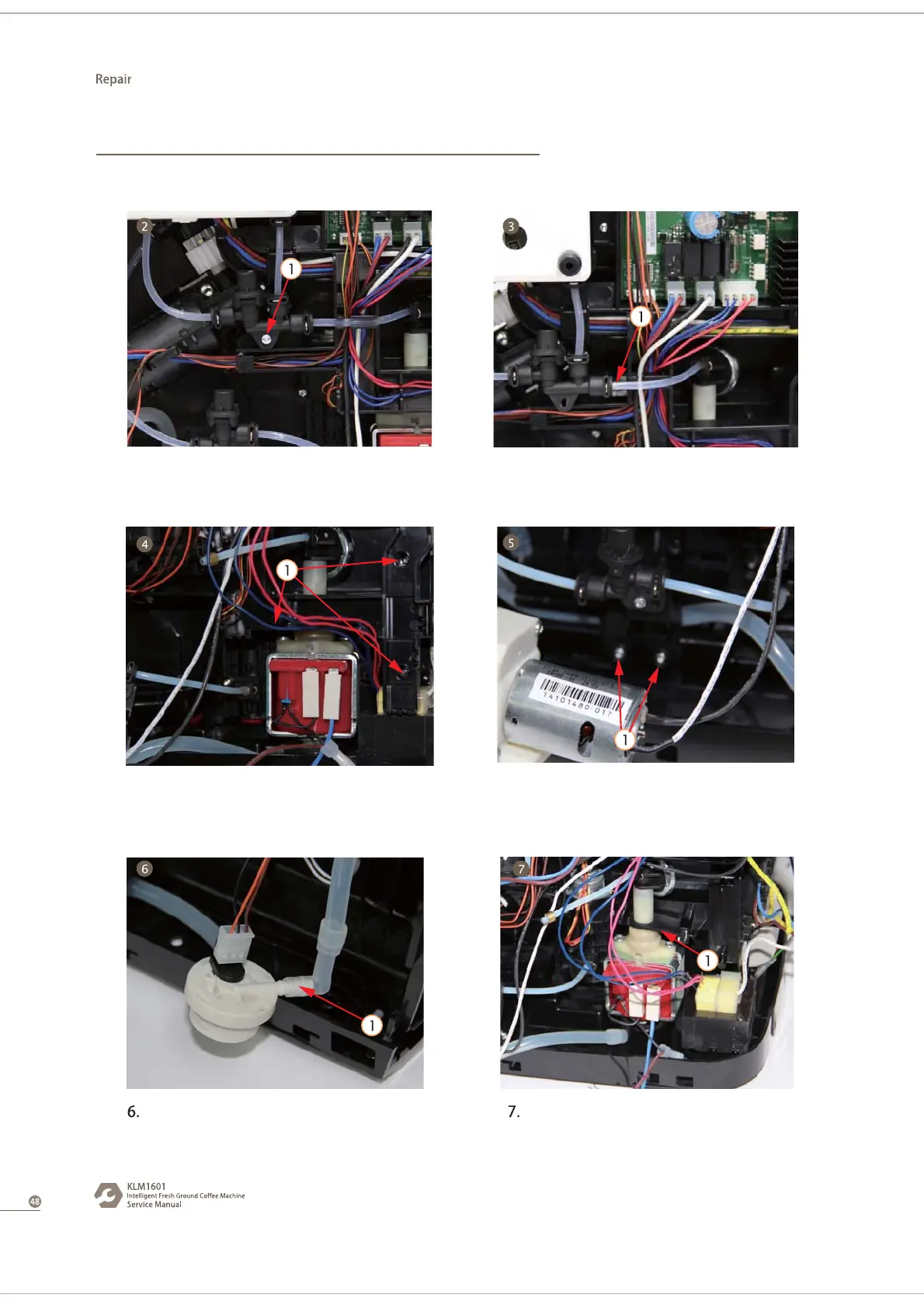

4. Take out all of line pencil from
cable rack, disassemble 3 screws
from cable rack and take out cable
rack
5. Pull out silicon pipe on condensator
that connected to pump
Pull out pump clamp from the
support and take out pump group
1. Refer to 4.2.1.1-4.2.1.4-disassemble right side section
4.2.11 Disassemble pump group
Pull out the flowmeter and pull out
the silicone pip
2. Disassemble 1 screw from dispenser
valve 3W so that the wiring cable can
be taken out from the cable rack.
3. Pull out Teflon pipe on dispenser
valve 3W that connected to pump
To Next Page
