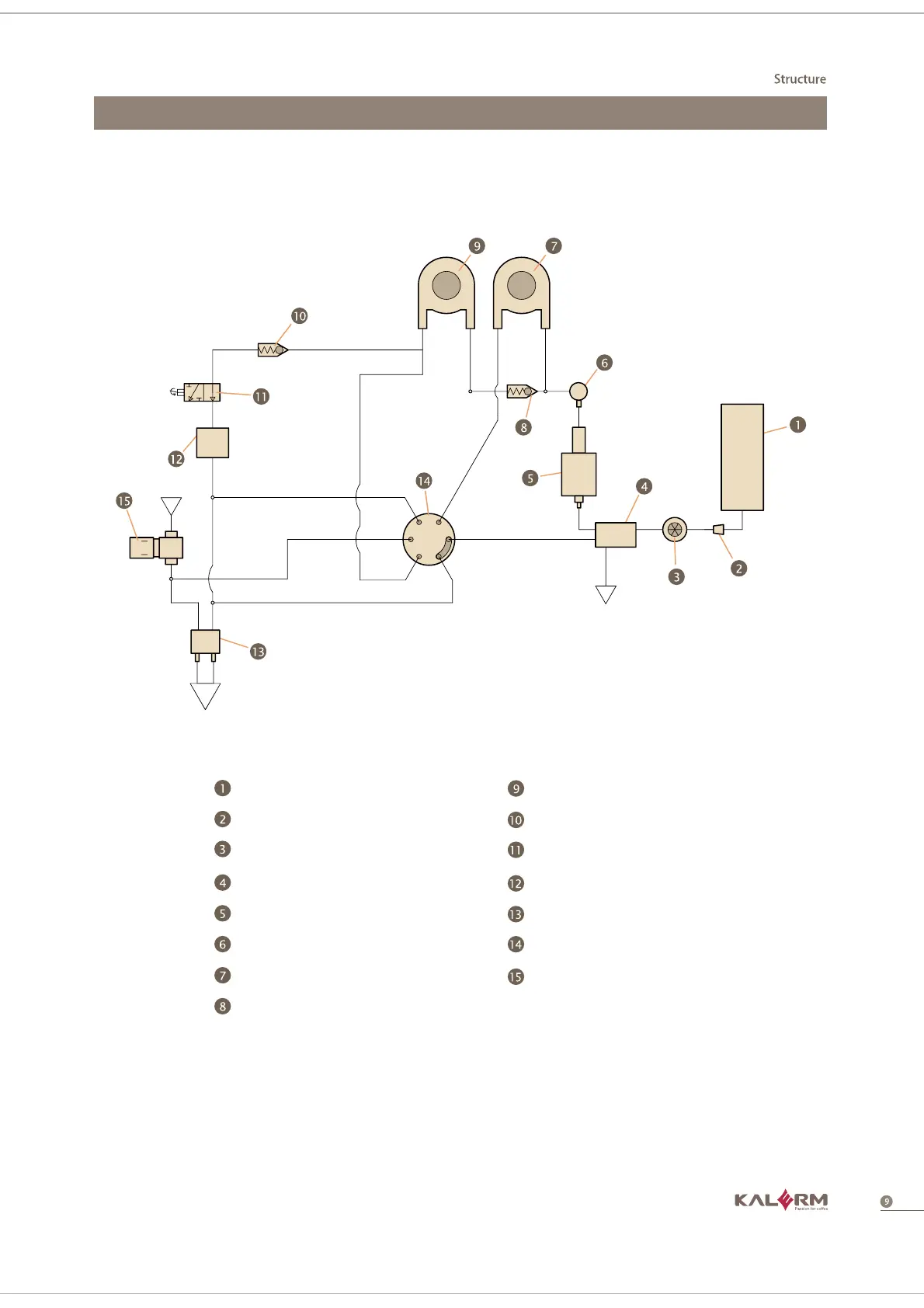

2.3 Water circuit
2.3.1 Overview of water circuit
12
3
45
6
Water tank
Sieve
Flowmeter
Condensator
Pump
Pressure maintaining valve
Steam thermoblock
Dispenser valve 3W
Coffee thermoblock
Dispenser valve 2W
Drainage valve
Brew unit
Beverage export
Reversing valve
Solenoid valve
