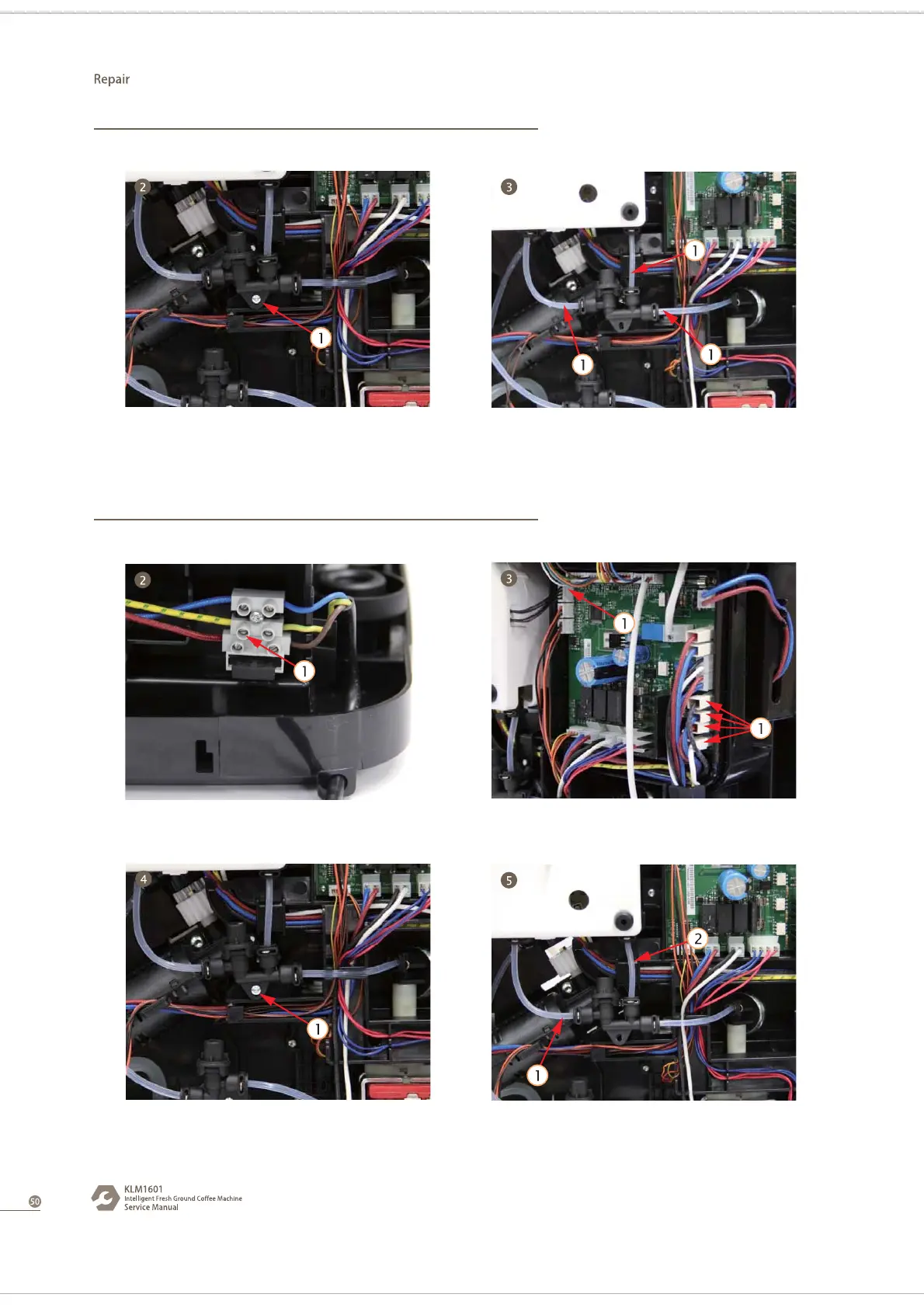

Kalerm KLM2601 - Disassemble Dispenser Valve 3 W Group; Disassemble Thermoblock Group

2. Disassemble 1 screw from
dispenser valve 3W
3. Pull out 3 Teflon pipes which connected
to dispenser valve 3W, and take out
dispenser valve 3W
1. Refer to4.2.1.1-4.2.1.4-disassemble right side section
4.2.14 Disassemble dispenser valve 3W group
3. Loose the screw near the ground
wire on the line pencil connector
4. Disassemble 1 screw from dispenser
valve 3W
5. Pull out Teflon pipe which connected
thermoblock group and dispenser valve
3W and dispenser valve 2W
1. Disassemble top cover according to 4.2.1.1-4.2.1.6
4.2.15 Disassemble thermoblock group
2. Loose screw on the line pencil
connector
