ZEUS-VD INSTALLER’S MANUAL
9.5 PROGRAMMING OUTPUT STATUS - OS
The ZEUS4-VD device has four open collector outputs and each of them can be programmed
through network in a different way: as a bi-stable or mono-stable (pulse) output. The programming
time is in seconds.

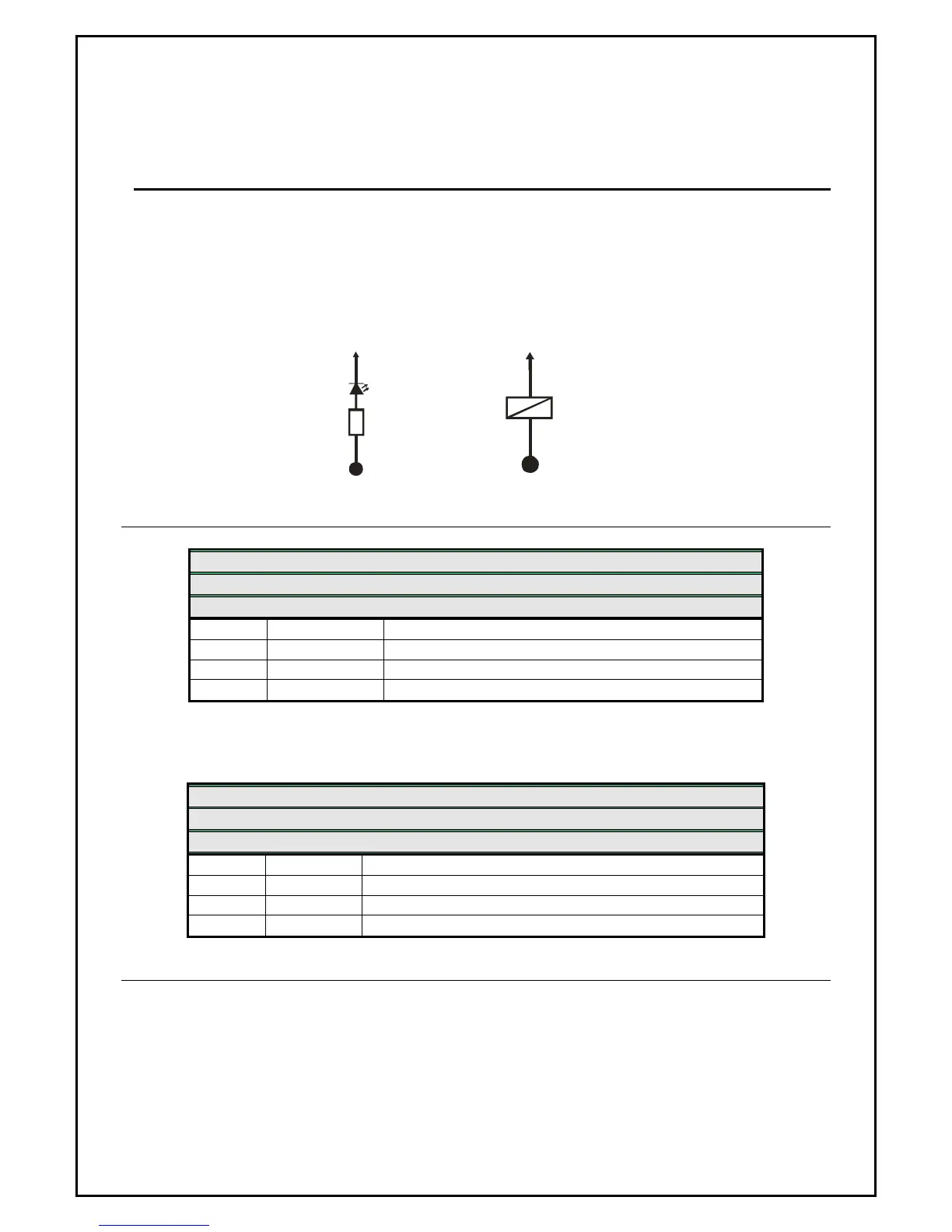

Typical connection for the output:
+12V DC
OUTPUT 1-4
R 1K
LED
+12V DC
1-4OUTPUT
RELAY
12V DC
9.5.1 Programming table for output status
ZEUS4-VD - GSM PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name Number (default) Description
OS1 1
Status for the 1
st
output – enabled
OS2 1
Status for the 2
nd
output – enabled
OS3 1
Status for the 3
rd
output – enabled
OS4 1
Status for the 4
th
output – enabled
Example:
ZEUS4-VD - GSM PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name Number Description
OS1 1
ON/OFF mode output
OS2 0
Disabled output
OS3 20
20 second pulse output
OS4 5
5 second pulse output
9.5.2 OS remote programming by SMS
For the upper example send the following SMS from the host phone to the ZEUS4-VD:
;OS1=1;OS2=0;OS3=20;OS4=5;
If you want to get the confirmation SMS back then write “+” before SMS command:
;+OS1=1;OS2=0;OS3=20;OS4=5;
