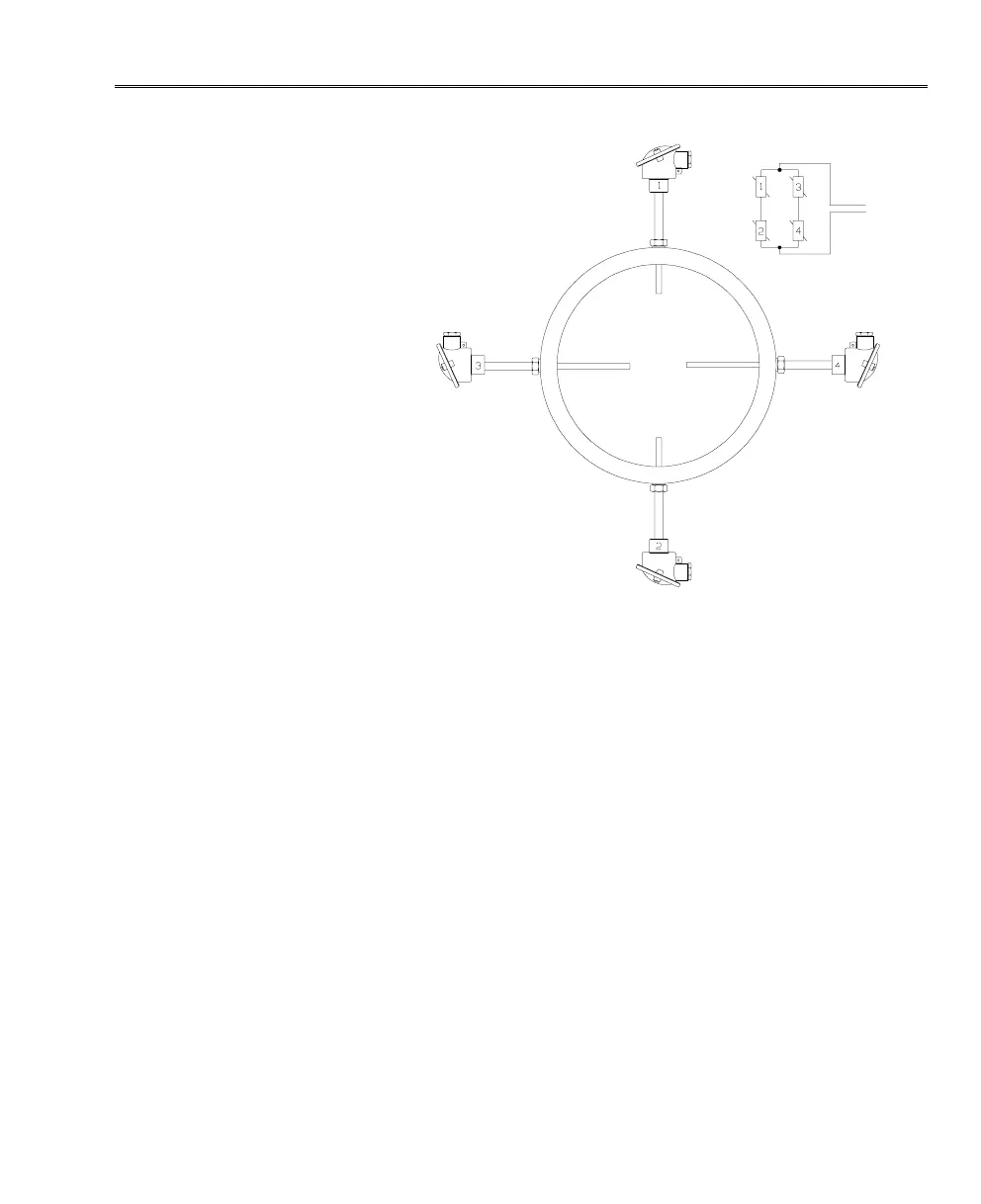

Example 1
4 sensor sets - with different sensor tube lengths - are installed in
both the flow and return lpipes. The four sensors are connected
both in series and parallel, so that the original sensor characteris-
tics are maintained. This method can be used with both the Pt100
and Pt500 versions of MAXICAL
®
III - note, however, that only
paired sensors sets must be used for this purpose. The sensor sets
used must be connected serial/parallel in the same way both in the
flow and return pipes.
