MAXICAL
®
III5511-229 GB/98.06/Rev. B1
43
10.3 Data Acquisition via Connection Terminals
Serial data communication - with the same function as the optical
read out head - can be connected to the right of MAXICAL
®
III,
where all the connection terminals are placed. This means that
both programming and data acquisition is possible via this data
port. The data section is galvanically separated by means of opto-
couplers.
As MAXICAL
®
III’s data port is passively isolated, a circuit with

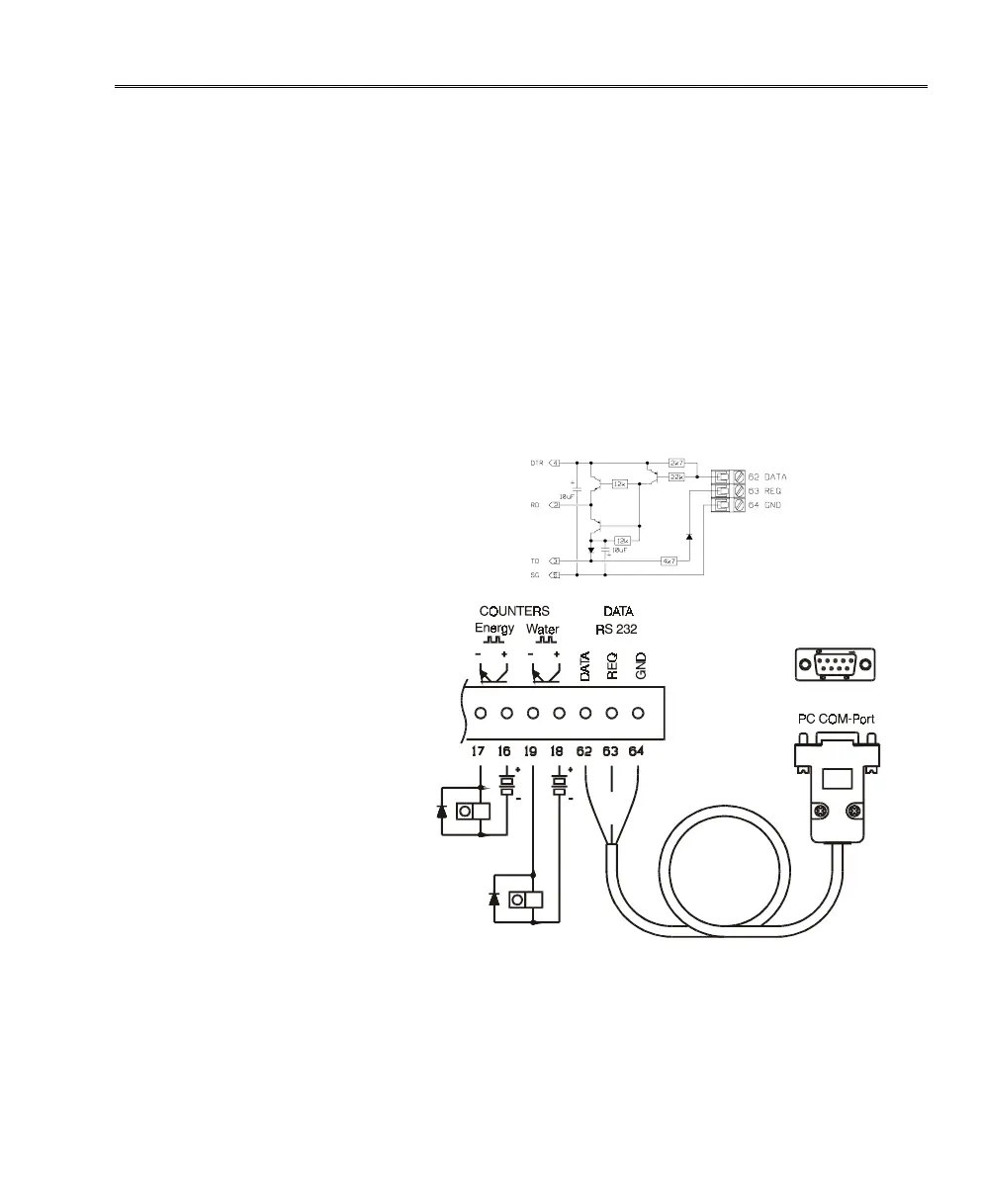

direction connection to a computer must be created. The following
drawing can be used as an example:
Brown
White
Green
