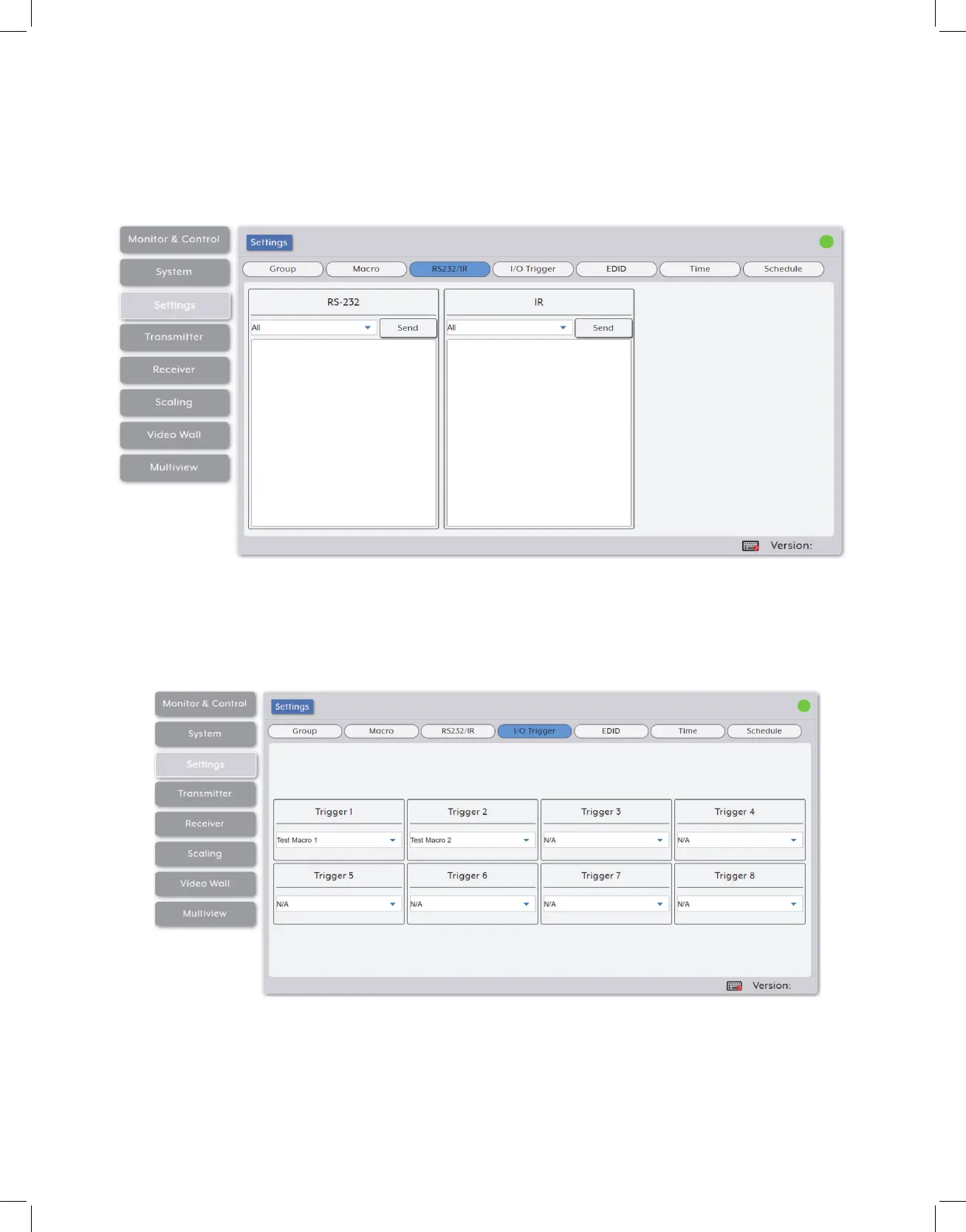

3. RS232/IR: This section provides a way to manually send individual RS- 232 or IR
commands to specific receiver endpoints within the current system.
• RS-232: To send an RS-232 command, use the dropdown to select the target
endpoint, type or paste the command into the space provided, and then click “Send”
to transmit the command immediately.
Note: To transmit hex data, each ASCII hex pair (octet) must be preceded by “\x”. For example a
carriage return would be “\x0D”.
4. I/O Trigger: This section provides a way to assign macros to each of the 8 trigger
inputs on the unit as well as to the 8 IR remote buttons.
• Trigger 1~8: use the dropdowns to select the macro to assign to each trigger pin on
the unit.
Note: The IR remote button number assignments will match the trigger assignments.
