KaVo ABSORmatic plus - A 5.1 Connecting the suction hoses

8
ABSORmatic
®
plus.

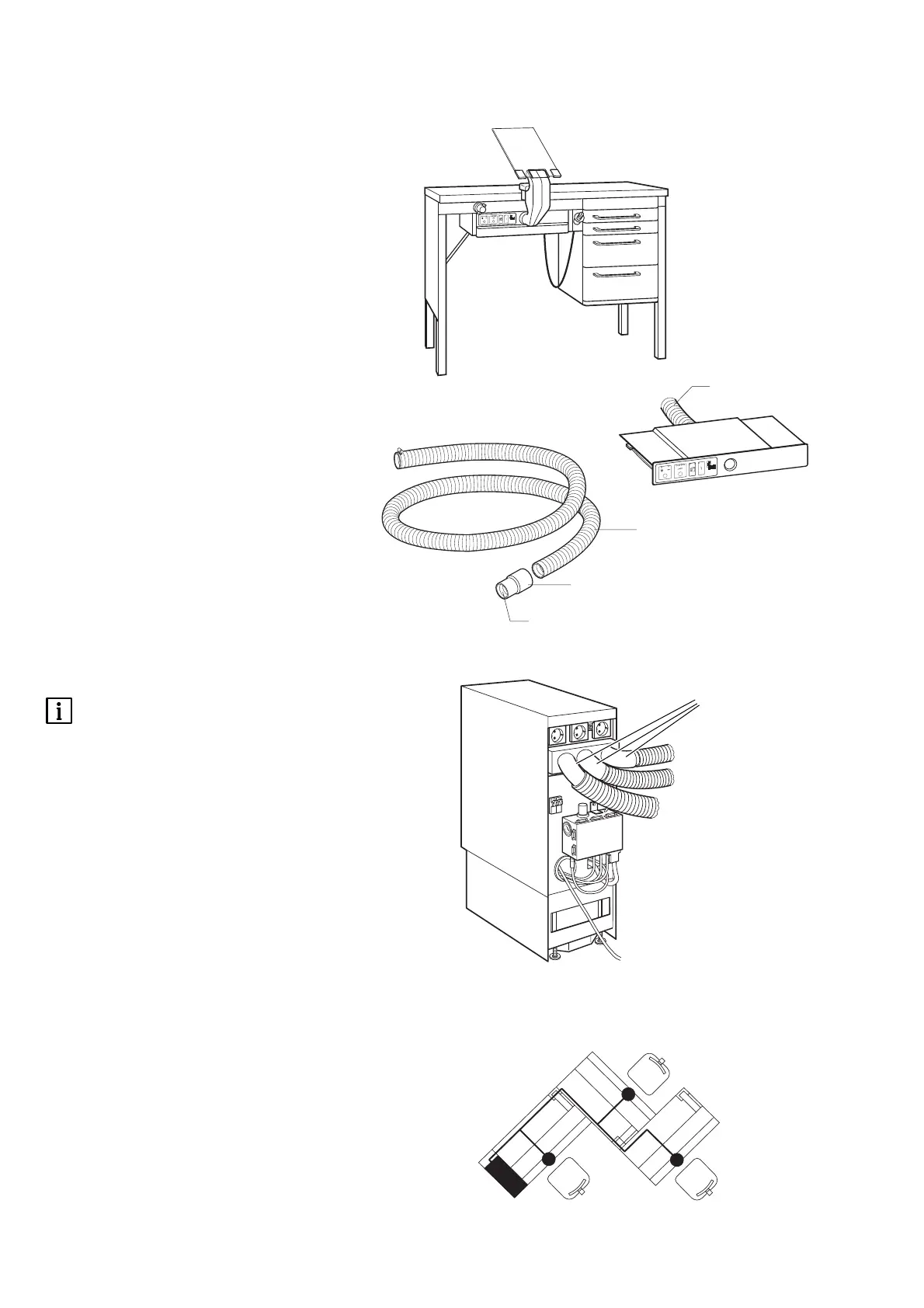

A 5.1 Connecting the suction hoses
The recommended hose diameter for labo-
ratory workstations and for connection to
collection points or rack modules is
42 mm ∅.
Push 42 mm ∅ hose onto the nozzle of the
collection point or of the rack and secure
with hose clip.
Screw suction hoses ∅ 42 mm and ∅ 50
mm into 50/42 mm adapter. If necessary,
cut the suction hose to length, so that it can
be connected without hanging down (also
without being under tension).
Fit ∅ 50 mm suction hose onto pipe bend
 and fit pipe bend  with suction hose
fitted onto suction unit.
In the case of collection points with
recessed suction openings, ensure
that the hose is the optimum length, is not
kinked, not under tension and glides
smoothly on the hose slide.
Steep rises and “sagging“ in the hose
should be avoided. Use hose clips as
required.
Ø 42 mm
Ø 50 mm
Ø 50 mm
A
B
S
O
R
m
a
t
i
c
®
Ø 42 mm
A
B
S
O
R
m
a
t
i
c
®
Å
