6
ABSORmatic
®
plus.

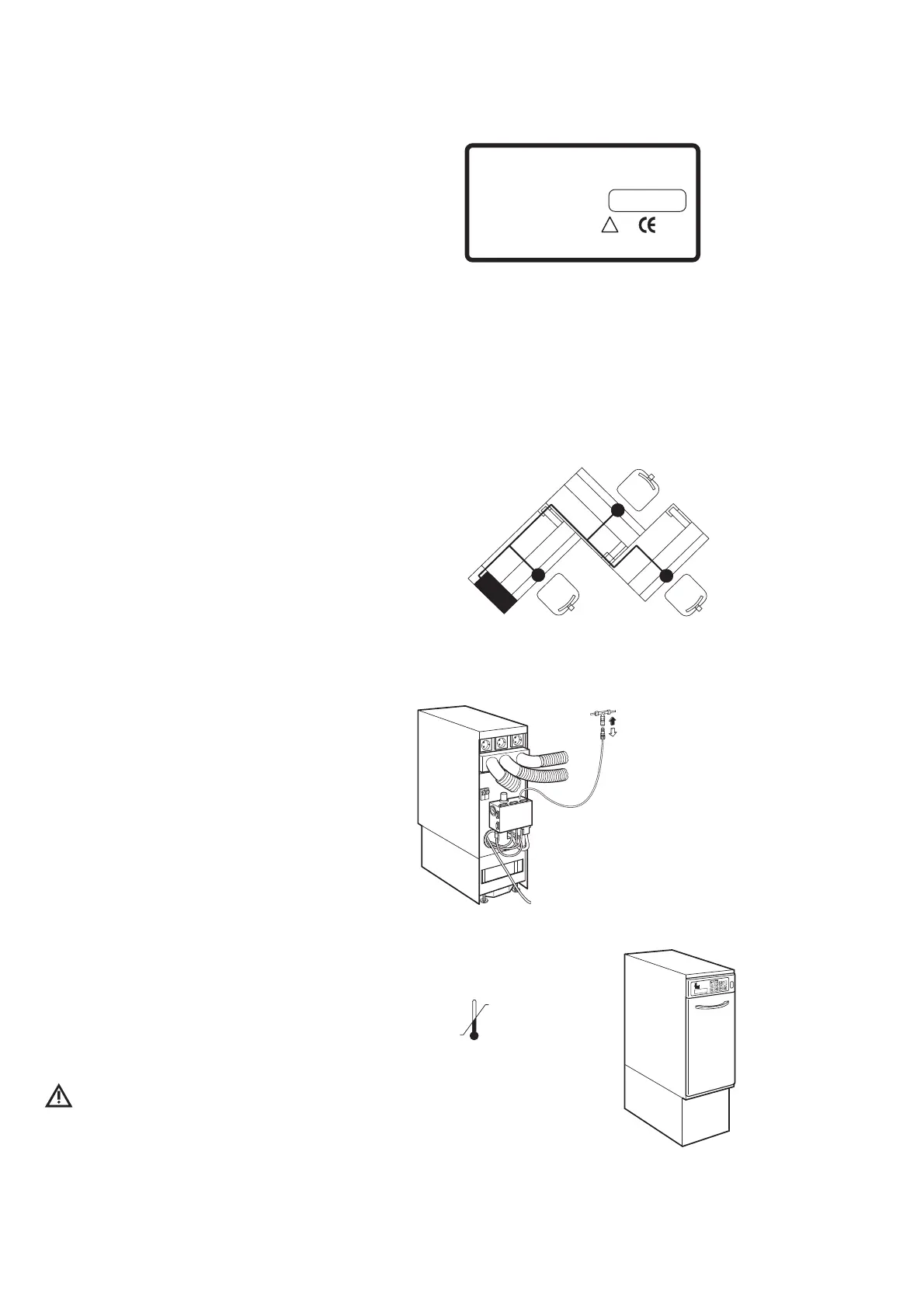

A 3 Mains voltage and mains fre-
quency
Electrical connection
Check that the mains voltage and frequency
are the same as stated on the nameplate.
Connected load
Total connected load
Max: 3000 Watt
(1900 Watt for external socket outlets)
Power rating:
Dust extraction 1100 Watt
A 4 Location
Electrical supply required.
Free-standing or built-into or under a bench
possible.
Note total connected load of max. 3000 W.
No compressed air connection and no suc-
tion unit diverter is necessary when operat-
ing with only one suction point (Close
unused, open suction point with plug
Mat.- No. 0.657.0492).
Upon operation with more than 1 dust col-
lector, a compressed air connection is also
required (supply pressure of min. 1 to max.
6 bar). The output operating pressure to the
suction unit diverter is connected via a con-
trol unit with pressure-regulating valve -
output approx. 0.8 bar.
Correct use requires compliance with the
provisions of DIN 61010.
- Internal use
- Temperature 5°C to 40°C
- Max. relative air humidity 80% at tem-
peratures up to 31°C, reducing linearly to
50 % relative air humidity at 40°C.
- Supply voltage fluctuations must not
amount to more than ± 10 % of the rated
voltage.
- Overvoltage category II
- Pollution severity 2 (acc. to IEC 664).
- To comply with the required limits, the
recycled air volume flow rate may be not
more than 50% of the fresh air volume
flow rate (room volume VR times
number of air changes AC).
Do not extract any substances poten-
tially explosive such as steam, gaz,
liquidities etc.
