KaVo ABSORmatic plus - A 7 Control and functional elements

12
ABSORmatic
®
plus.

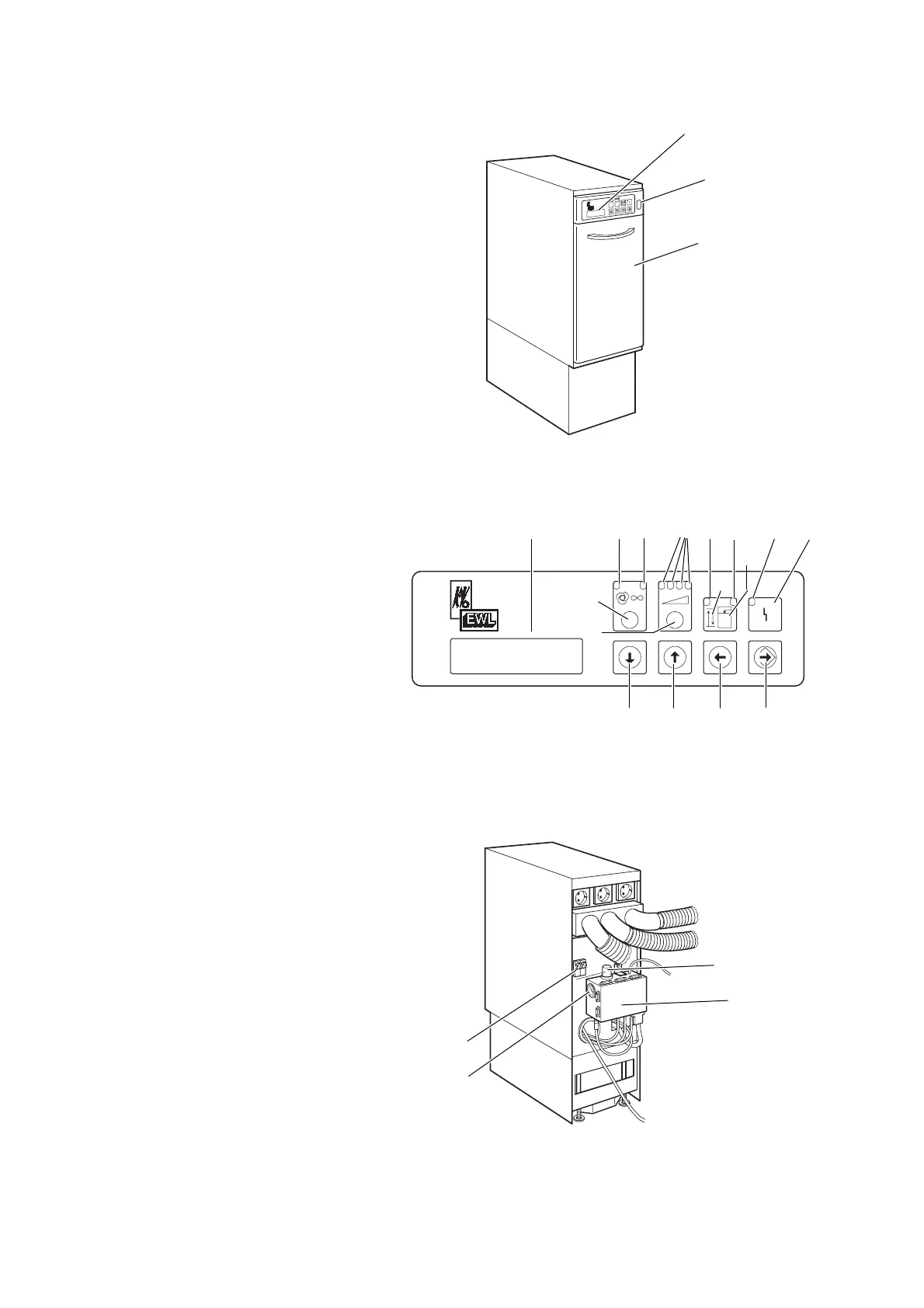

A 7 Control and functional elements
 Control display
 Power switch ON “I“ - OFF “0“
 Front panel
 LED pilot indication for “Automatic
mode“
 LED pilot indication for "Continuous
mode"
 LED pilot indication for selected
suction stage 1/2/3/4
 LED operating mode: “Filter“
 LED operating mode: “Waste container“
 LED Functional disturbance
 Pushbutton “Automatic mode“ -
“Continuous mode“
 Pushbutton “Suction stage“
 Symbol for filter
 Symbol for waste container
 Symbol for functional disturbance
 Pushbutton "down"
 Pushbutton "up"
 Pushbutton "back to last input"
 Pushbutton "programme stored -input
finished"
 Circuit breaker
 Pressure-regulating valve
 Pressure gauge
 Suction route switching module
