KaVo ABSORmatic plus - A 5.2 Levelling; A 5.3 Connect the Load

10
ABSORmatic
®
plus.

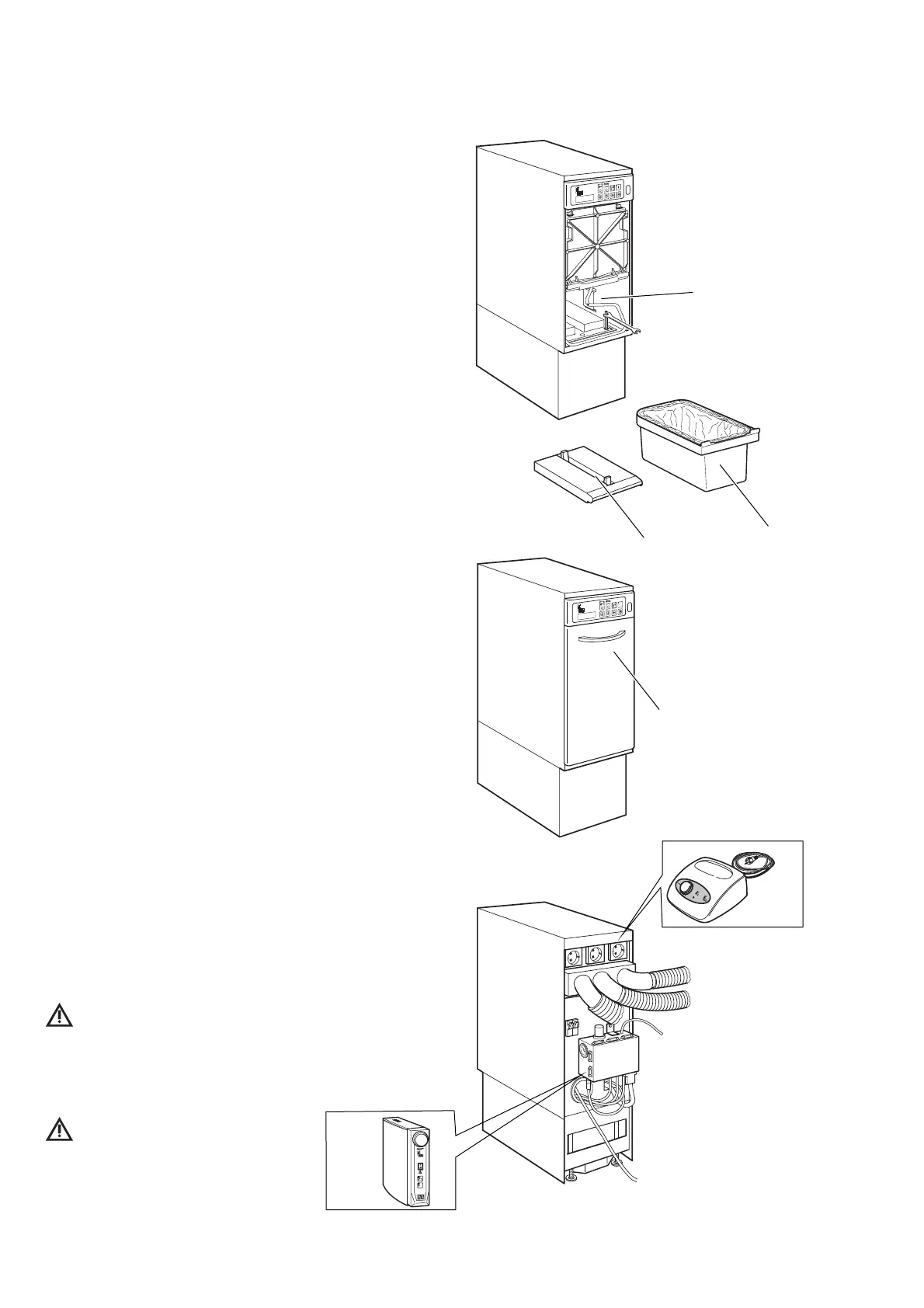

A 5.2 Levelling
Remove the front panel  and take out the
waste container . Take out the cover 
from over the active carbon filter.
Adjust the 4 level adjusters with hexagon-
slot wrench  to obtain correct levelling.
Brace the dust collector to the work bench
with level adjusters.
Finally close off the apertures over hexa-
gon-slot screws with the stoppers provided
(dust protection).
Refit cover  for the active carbon filter
and waste container. Lock waste container
 and close the front panel .
A 5.3 Connect the load
Connect the power cord of the suction
route switching modul (e.g. K9 ins-talla-
tion, K11 installation, devesting and blast-
ing system etc.).
With appropriately prepared units, e.g. K-
Control controller, the ABSORmatic plus
can also be actuated with the aid of a con-
trol signal (connecting cable from unit to
suction path diverter module required). In
this case, it is not necessary to insert the
mains cable of the unit into the mains
socket on the back.
It is essential for the electrical con-
nection and the suction hose connec-
tion to be correctly assigned (see mark-
ings).
The total connected load must not
exceed 1900 Watt, but can be distrib-
uted between 3 socket outlets.
