A 5.3 Connection requirements
• The compremend air coming from the
dental unit into ELECTROtorque unit
need to be dry, clean and oil-free.
• If necessary please use air-filter, water
reparator or air-dryer.
• To avoid demages at the motor and the
handpiece it’s important to observe the
air requirements.
Air requirements:
Dry, free from contamination and oil.
If necessary
• Use a compressor with a dry air system.
• Install an air filter if necessary (50 µm).
• Blow out the lines before installation.
• cooling air pressure : 2,5 - 4,5 bar
• spray air pressure: 1,0 - 2,5 bar
• spray water pressure: 0,8 - 2,0 bar
• Air flow for the handpiece, coming out
from e- type connection, must be
between 6 - 10 NL/min.

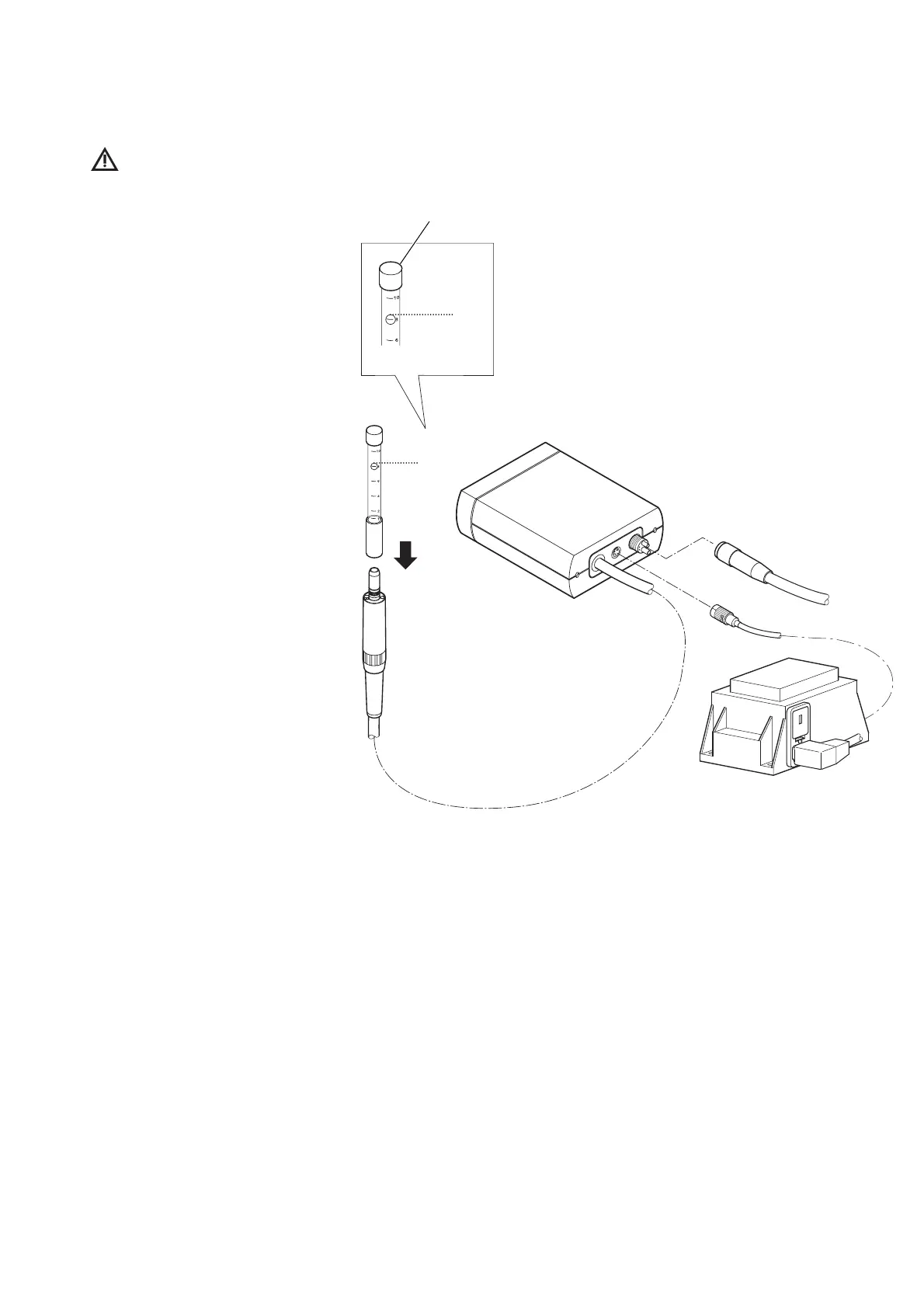

this can easly be proofed with the KaVo
flow meter 1 0.411.4441 or 1.001.9932.
Please push the flow meter upright on
the motor and start the motor by pressing
the foot control. Check the upper edge of
the ball 2.
15
ELECTROtorque 4890/K200.
