SETTING UP YOUR KAYPRO 10

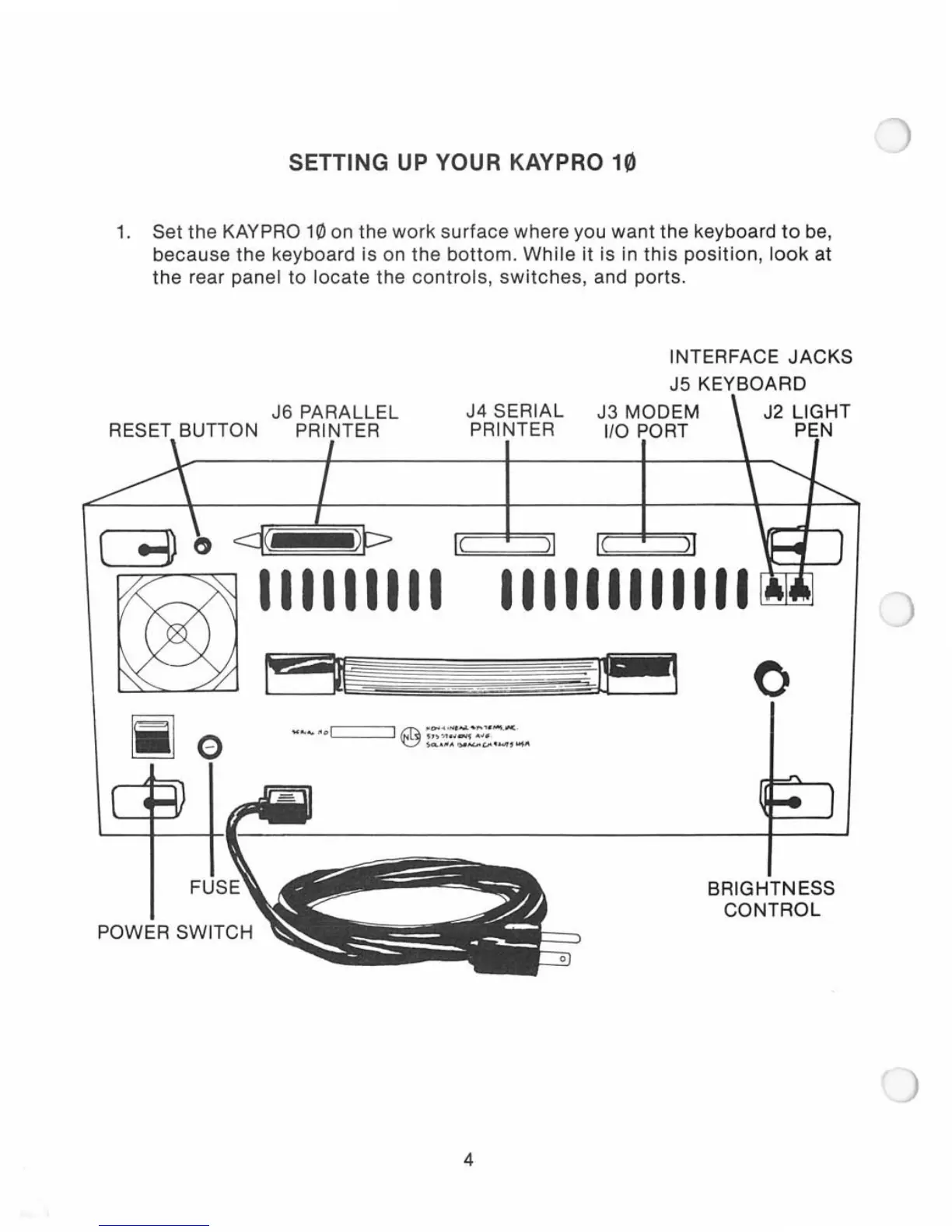

1. Set the KAYPRO 10 on the work surface where you want the keyboard to be,
because the keyboard is on the bottom. While it is in this position, look at
the rear panel to locate the controls, switches, and ports.
J6 PARALLEL
RESET
BUTTON PRINTER
II1III1II
POWER SWITCH
INTERFACE
JACKS
J5 KEYBOARD
J4
SERIAL J3 MODEM
PRINTER I/O
RT
III1IIIIIIII
4
o
BRIGHTNESS
CONTROL
