A6. RESET
The Multi-Function Input Terminals can be used to reset the drive, after a fault has been cleared, by
connecting a switch or contact to any Multi-Function Input Terminal “1” – “7”, as shown in Figure 31.
Set the respective Multi-Function Input Terminal (Function Nos. 7.00 – 7.06), which will be used for
“Reset”, to “0009”. In Figure 31, Multi-Function Input Terminal “4” has been arbitrarily chosen.
FIGURE 30 – EXTERNAL FAULT AUXILIARY EQUIPMENT SWITCH OR CONTACT CONNECTION AND FUNCTION SETTING
TB1
15
116
18
321
16 17
4 5
19 20 23
87
21 22
9 10
24 25 28
1312
26 27
14
Auxiliary Equipment
Function Setting
Function No. Code
7.04
Multi-Function
Input Terminal 5
0008
External
Fault
FIGURE 31 – RESET SWITCH OR CONTACT CONNECTION AND FUNCTION SETTING
TB1
15
116
Reset
18
32
1
16 17
4 5
19 20 23
87
21 22
9 10
24 25 28
1312
26 27
14
Function Setting
Function No. Code
7.03
Multi-Function
Input Terminal 4
0009
Reset

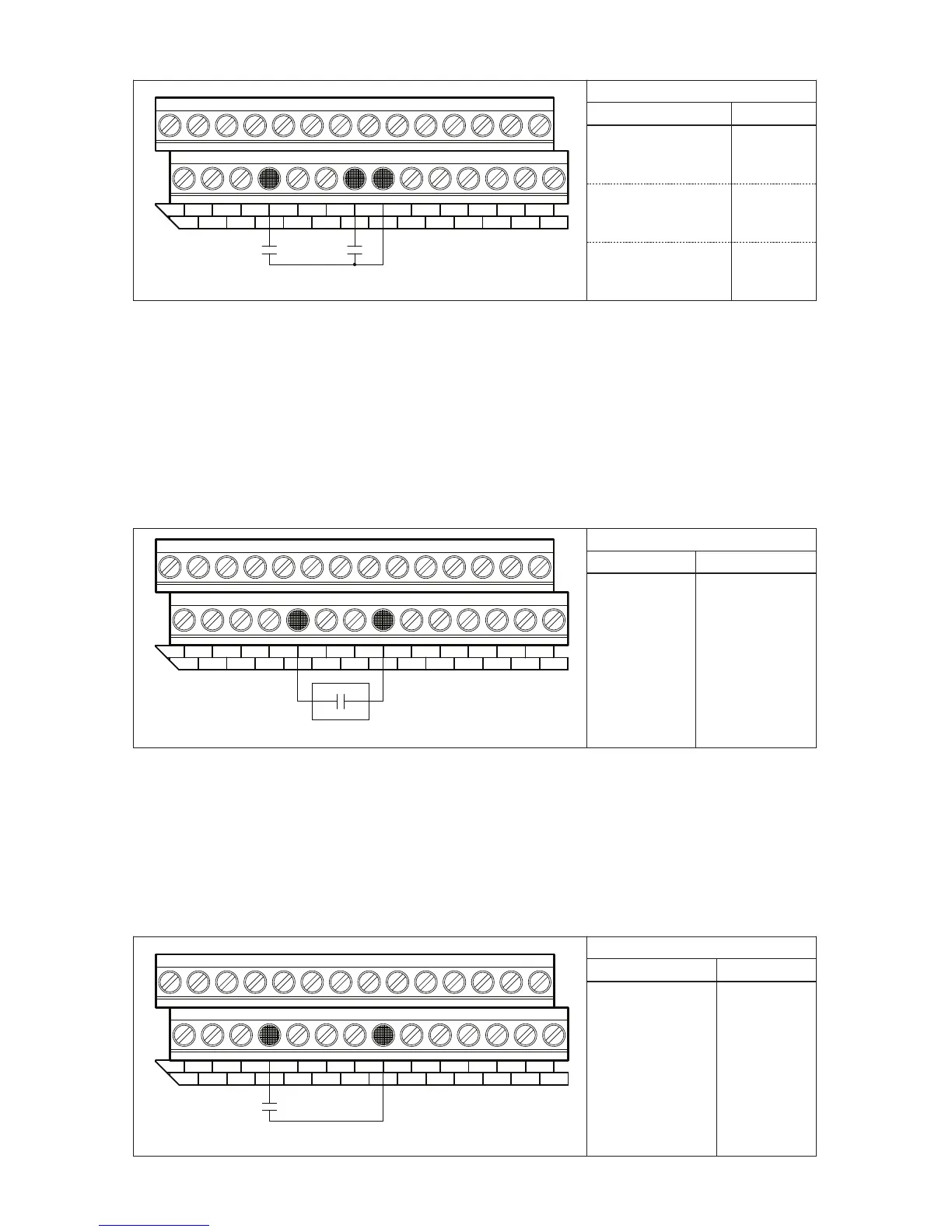

FIGURE 29 – FORWARD/STOP-REVERSE/STOP SWITCH OR CONTACT CONNECTIONS AND FUNCTION SETTINGS
1615
1
TB1
Reverse/Stop
26211817
2 3
2019
5
46
2322
7 8
2524
10
9 11 14
2827
12 13
Forward/Stop
Function Settings
Function No. Code
1.00
Run/Stop-Forward/Reverse
Control
0001
External
Contacts
7.03
Multi-Function
Input Terminal 4
0006
Forward/Stop
Command
7.06
Multi-Function
Input Terminal 7
0007
Reverse/Stop
Command
A5. EXTERNAL FAULT
The Multi-Function Input Terminals can be used to provide feedback to the drive when a fault condition
occurs in auxiliary equipment. The connection to the Multi-Function Input Terminals is typically from a
normally open relay, contact, or PLC, as shown in Figure 30. When the circuit is closed, the drive will
“stop” and the display will show “EF-t”.
Set the respective Multi-Function Input Terminal (Function Nos. 7.00 – 7.06), which will be used for
“External Fault”, to “0008”. In Figure 30, Multi-Function Input Terminal “5” has been arbitrarily chosen.
