KB Electronics KBDA-24D User Manual

27
*The factory setting of Display Mode (Function No. 4.00) is Frequency (“0000”).

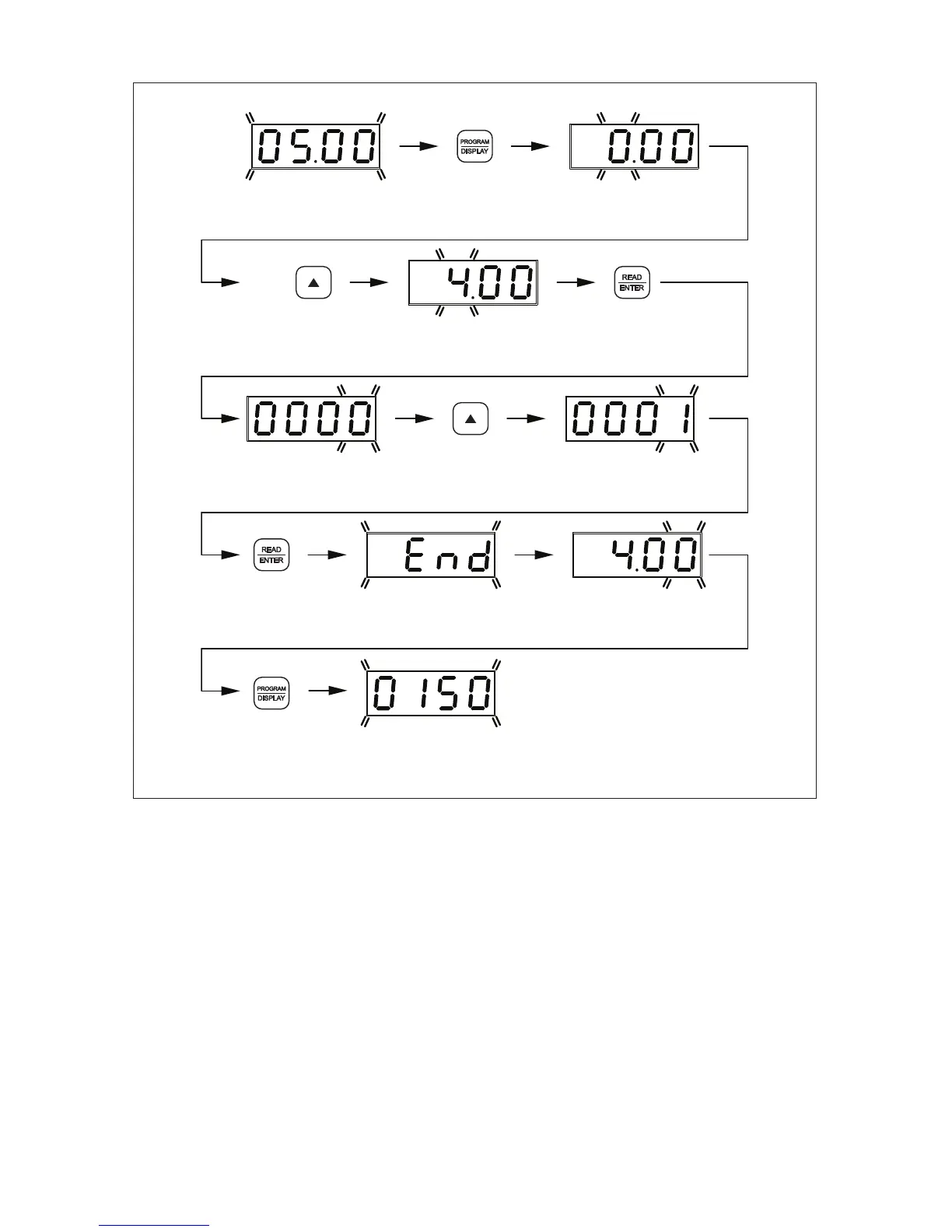

FIGURE 20 – FLOW CHART TO PROGRAM THE DRIVE TO DISPLAY MOTOR RPM
Digit Flashes
Group No.
("FWD", "STOP", "Hz" LEDs On)
Set Frequency Flashes Press Program Key
("PGM" LED On)
to Display
Function No.
POWER ON
to Change Display
Press Display Key
(”0150” RPM = 5 Hz)
("FWD", "STOP" LEDs On)
Set Motor RPM Flashes
to Save New
Press Enter Key
which Confirms Programming
"End" Momentarily Displays
Code Setting
Function No.
Display Mode
Digit Flashes
Press Up Key 4 Times Display Mode
Function No. to Read
Press Read Key
to Increase Digit
Digit Flashes Display Mode Setting
Frequency Display Mode *
Digit Flashes
Code Setting
Press Up Key 1 Time
Digit Flashes
Code Setting
RPM Display Mode
to Increase Digit
