KB Electronics KBDA-24D User Manual

23

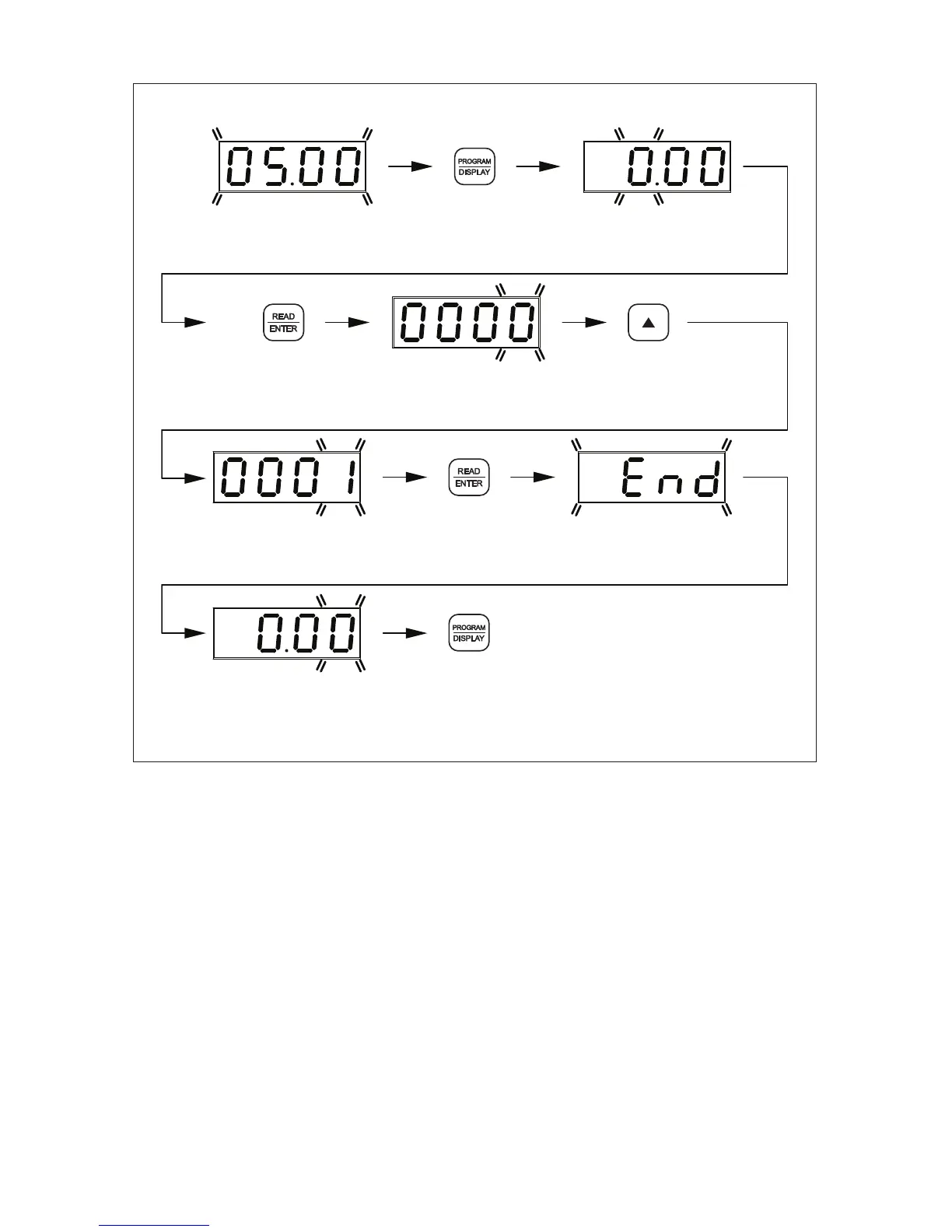

FIGURE 16 – FLOW CHART TO PROGRAM THE DRIVE FOR 50 HZ MOTORS
Set Frequency Flashes
("FWD", "STOP", "Hz" LEDs On)
("PGM" LED On)
Group No.
Digit Flashesto Display
Function No.
Press Program Key
POWER ON
Digit Flashes
Rated Motor Frequency
Code No.
Press Display Key
to Set Frequency Display
to Return
"End" Momentarily Displays
which Confirms Programming
Digit Flashes
50 Hz Rated Motor Frequency
Code
Press Enter Key
to Save New Code
Press Read Key
to Read Code
Code (60 Hz)
Rated Motor Frequency
Digit Flashes
to Increase Digit
Press Up Key 1 Time
