4.3 Name plates
8
9
10
11
12
Aktiengesellschaft
D- 67225 Frankenthal
Made in Germany
2014w07
Th.Cl F IP 68 T 40° C
1,7 A 2800 1/min S3 50%
EN 12050-1
Q
max 26,5 m³/h H max 11,9 m
ZNI 1448 F
mini-Compacta U1.100 D
400 V 3~ 50 Hz P2 0,75 KW
1
2
3
4
5
6
7

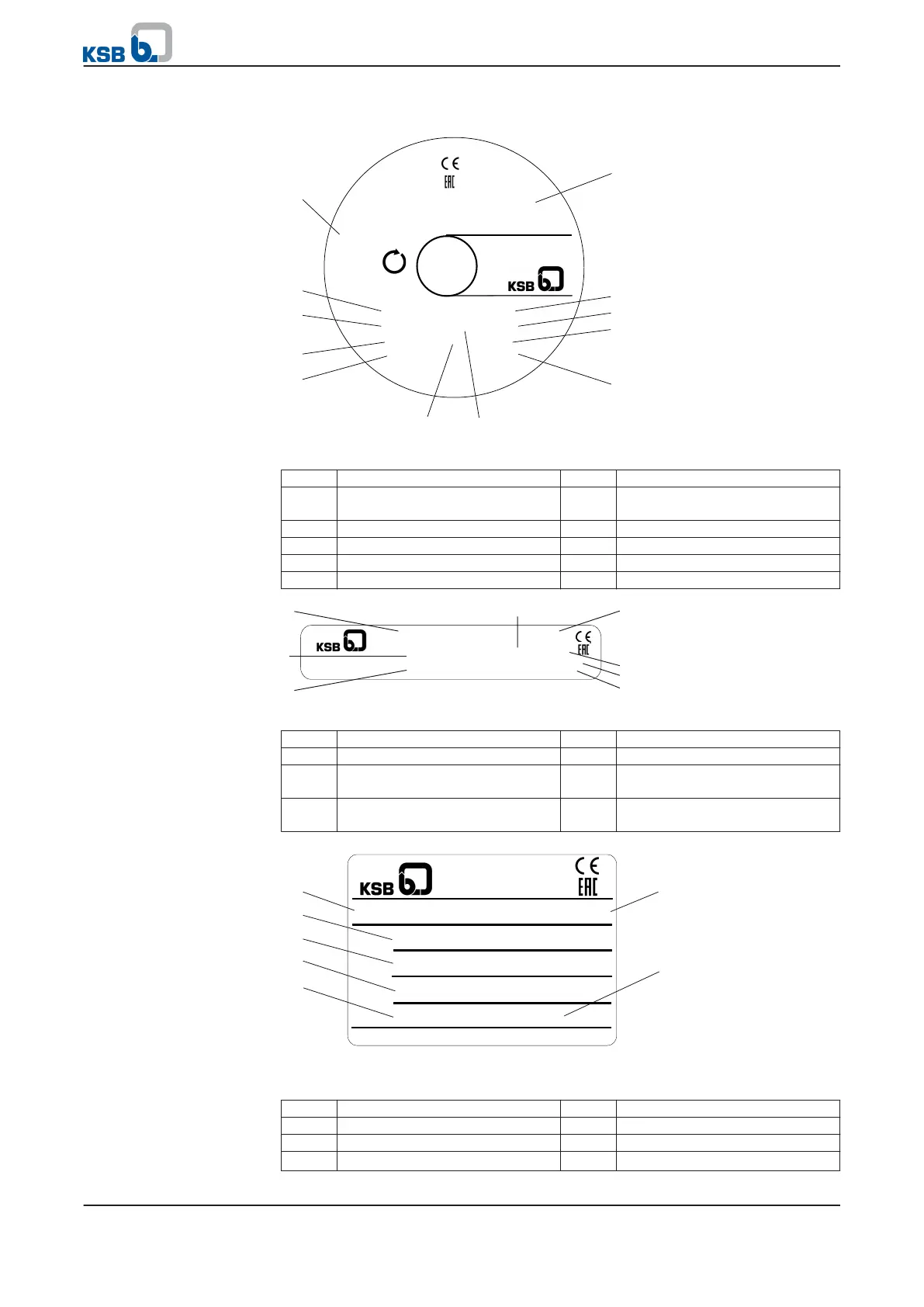

Fig. 1: Motor name plate (example)
1 Year/week of construction 2 Rated voltage/frequency
3 Rated current 4 Thermal class of winding
insulation
5 Maximum flow rate 6 Enclosure
7 Rated speed 8 Type series, size
9 Rated power 10 Operating mode
11 Maximum fluid temperature 12 Maximum head
Aktiengesellschaft
D-67225 Frankenthal
Made in Germany
EN 12050-1
mini-Compacta U1.100 D
26,5
11,9
Q
H
max
max
m³/h
m
2014w07
0197 07
DoP2317.1-01
54 kg
4
6
7
8
1
5
2
3
Fig. 2: Tank name plate (example)
1 Type series, size 2 Maximum flow rate
3 Maximum head 4 Total weight
5 Year/week of construction 6 Notifying body / year of
introduction
7 Declaration of performance
reference No.
8 Principles of construction and
testing
1
2
3
4
5
6
7
ZNI 1448xa
2014w07
BD706005
BC2400DFNO100
IP 54
Aktiengesellschaft
D-67225 Frankenthal
Made in Germany
Ue: 3/N/PE/AC 400 V 50 HZ
Ie: 6,3 - 10,0 A
LevelControl Basic 2
Fig. 3: Name plate
1 Designation 2 Product code
3 Rated voltage 4 Rated current
5 Number of circuit diagram 6 Year/week of construction
7 Enclosure
Motor
Tank
Control unit
4 Description
mini-Compacta
13 of 86
