10.3 Dimensions
10.3.1 mini-Compacta U60 and U100
1
1
a) b)

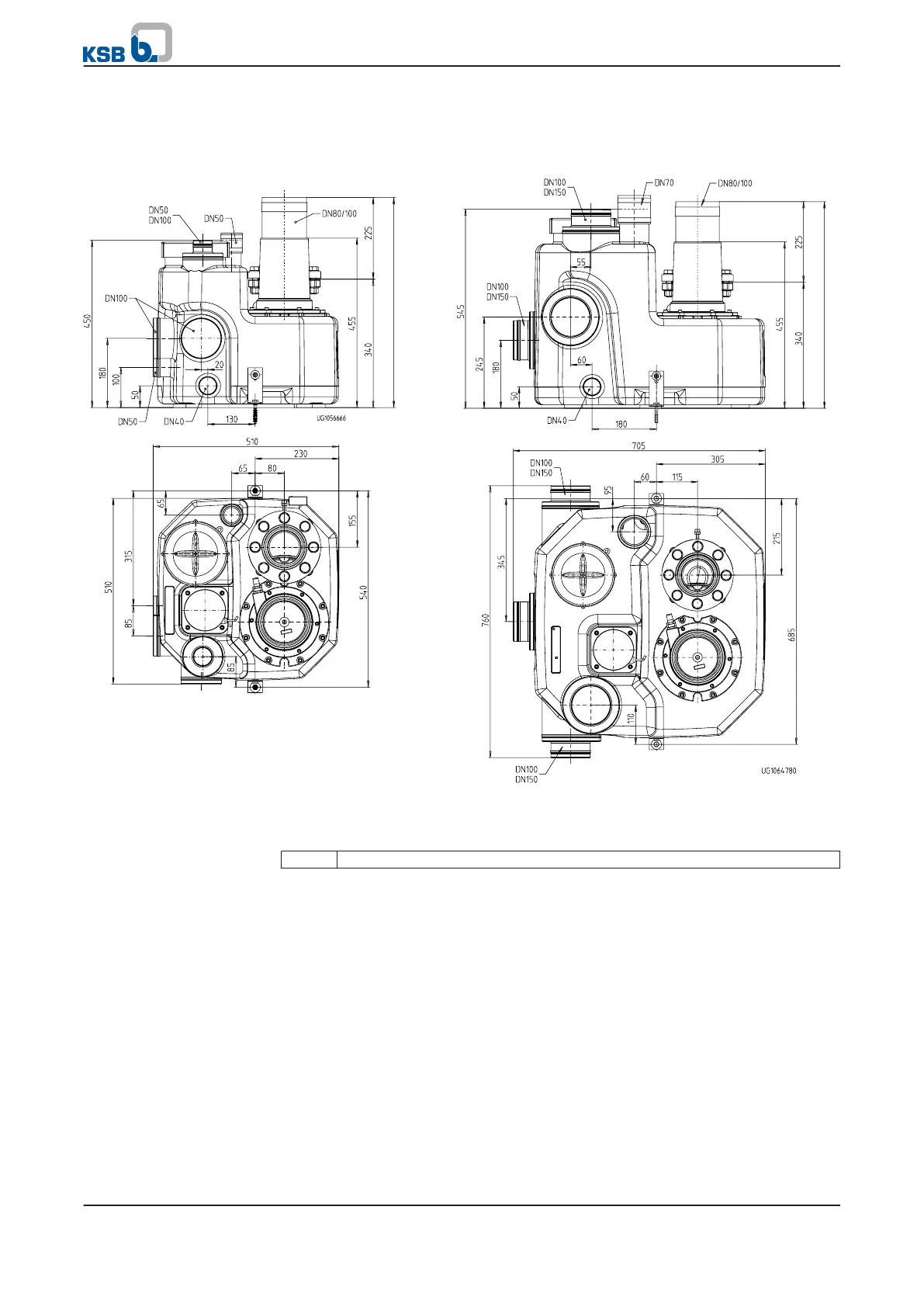

Fig. 44: Dimensions a) mini-Compacta U60 and b) U100
1 With gate valve: 745 mm
