KBS mini-Compacta - Connections

10.4 Connections
10.4.1 mini-Compacta U60 / U100
a)
b)

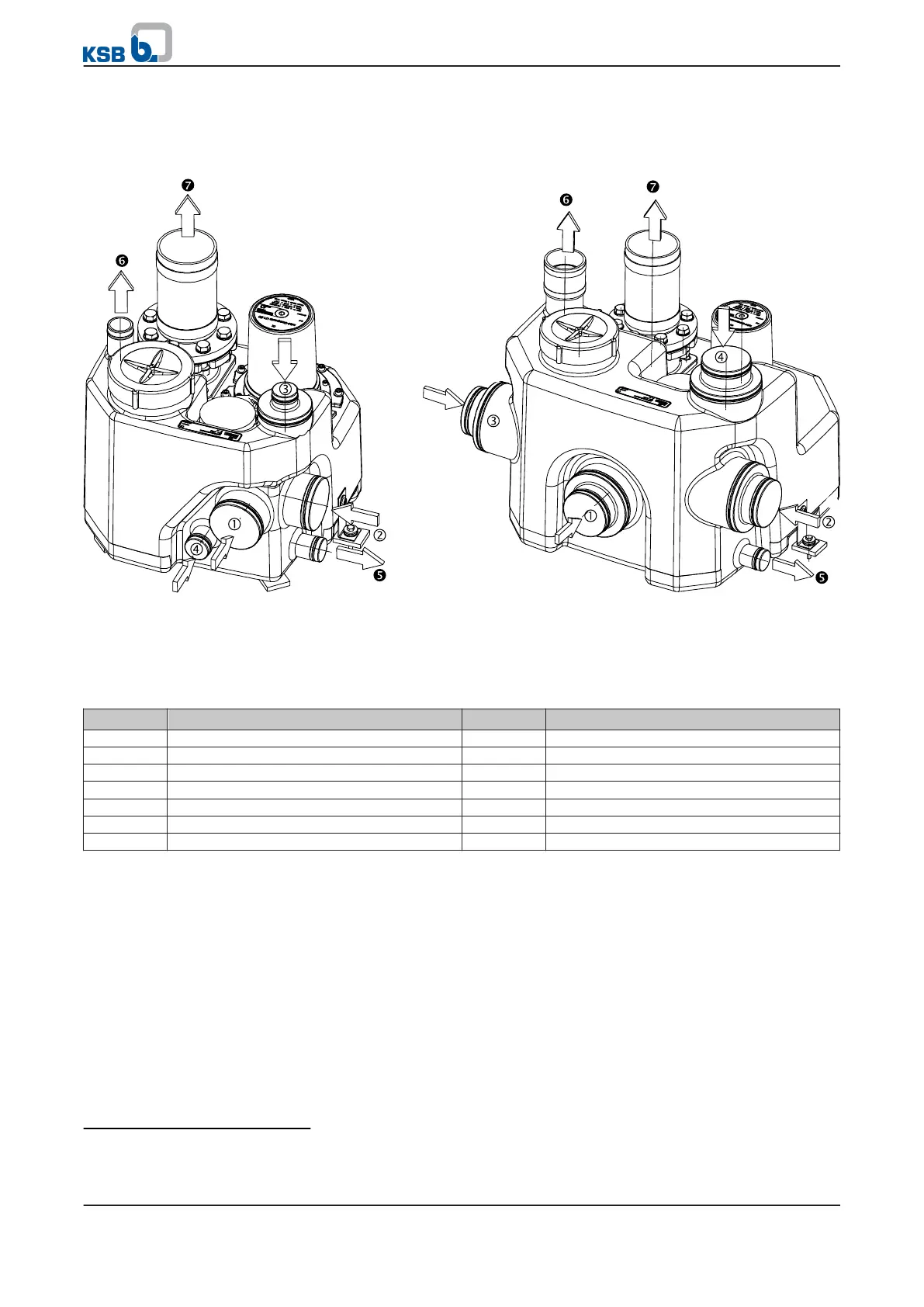

Fig. 50: Connections a) mini-Compacta U60 and b) U100
Table 22: Connections mini-Compacta U1.60 and U2.100
Number Connection for Number Connection for
① Inlet DN 100 ① Inlet DN 150/100
② Inlet DN 100 ② Inlet DN 150/100
③ Inlet DN 100/50 ③ Inlet DN 150/100
④
Inlet DN 50
6)
④ Inlet DN 150/100
➎ Drain DN 40 ➎ Drain DN 40
➏ Vent DN 50 ➏ Vent DN 70
➐ Discharge line DN 80/100 ➐ Discharge line DN 80/100
6)
To prevent backflow, all sanitary appliances must be connected to the lifting unit with their pipe invert at least 180 mm
above the tank floor. This connection is not suitable for discharge from shower basins.
