10.4.2 mini-Compacta US100/UZ150
a)
b)

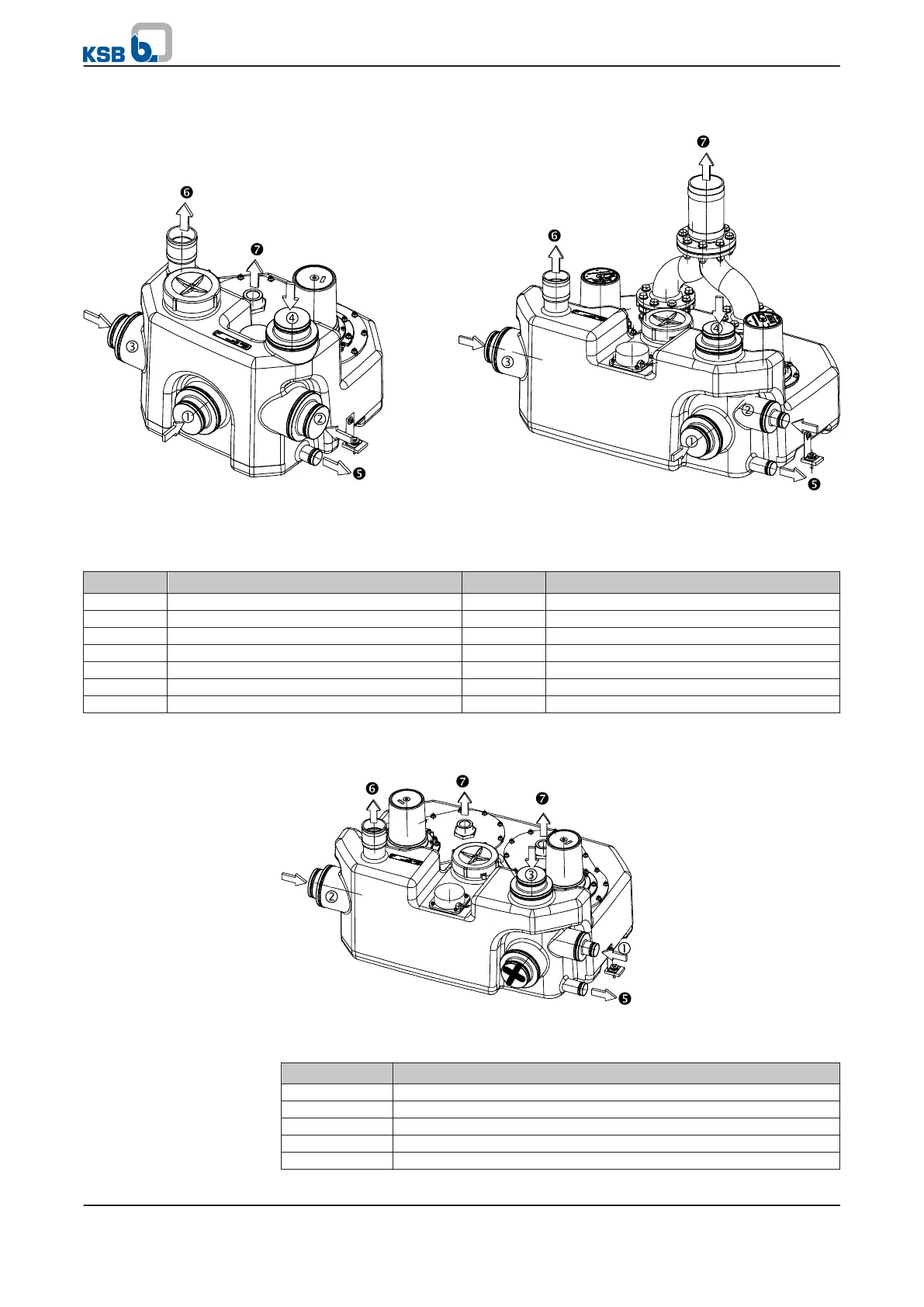

Fig. 51: Connections a) mini-Compacta US100 and b) UZ150
Table 23: Connections mini-Compacta US2.100 and UZ1.150
Number Connection for Number Connection for
① Inlet DN 150/100 ① Inlet DN 150/100
② Inlet DN 150/100 ② Inlet DN 100/50
③ Inlet DN 150/100 ③ Inlet DN 150/100
④ Inlet DN 150/100 ④ Inlet DN 150/100
➎ DN 40 drainage nozzle ➎ DN 40 drainage nozzle
➏ Vent DN 70 ➏ Vent DN 70
➐ Discharge line DN 50 (DN 32) ➐ Discharge line DN 80/100
10.4.3 mini-Compacta UZS150
Fig. 52: Connections mini-Compacta UZS150
Table 24: Connections mini-Compacta UZS1.150
Number Connection for
① Inlet DN 100/50
② Inlet DN 150/100
③ Inlet DN 150/100
✖ Inlet cannot be used on "S" models
➎ DN 40 drainage nozzle
