Fig. 4: LevelControl Basic 1
LevelControl Basic 2
Type BasicCompact (BC)
▪ Pump control and monitoring unit in compact plastic housing
▪ For either one or two pumps
▪ With display
▪ Level detection via:
–
Level sensor 0 - 5 V
▪ DOL starting
2
3
1

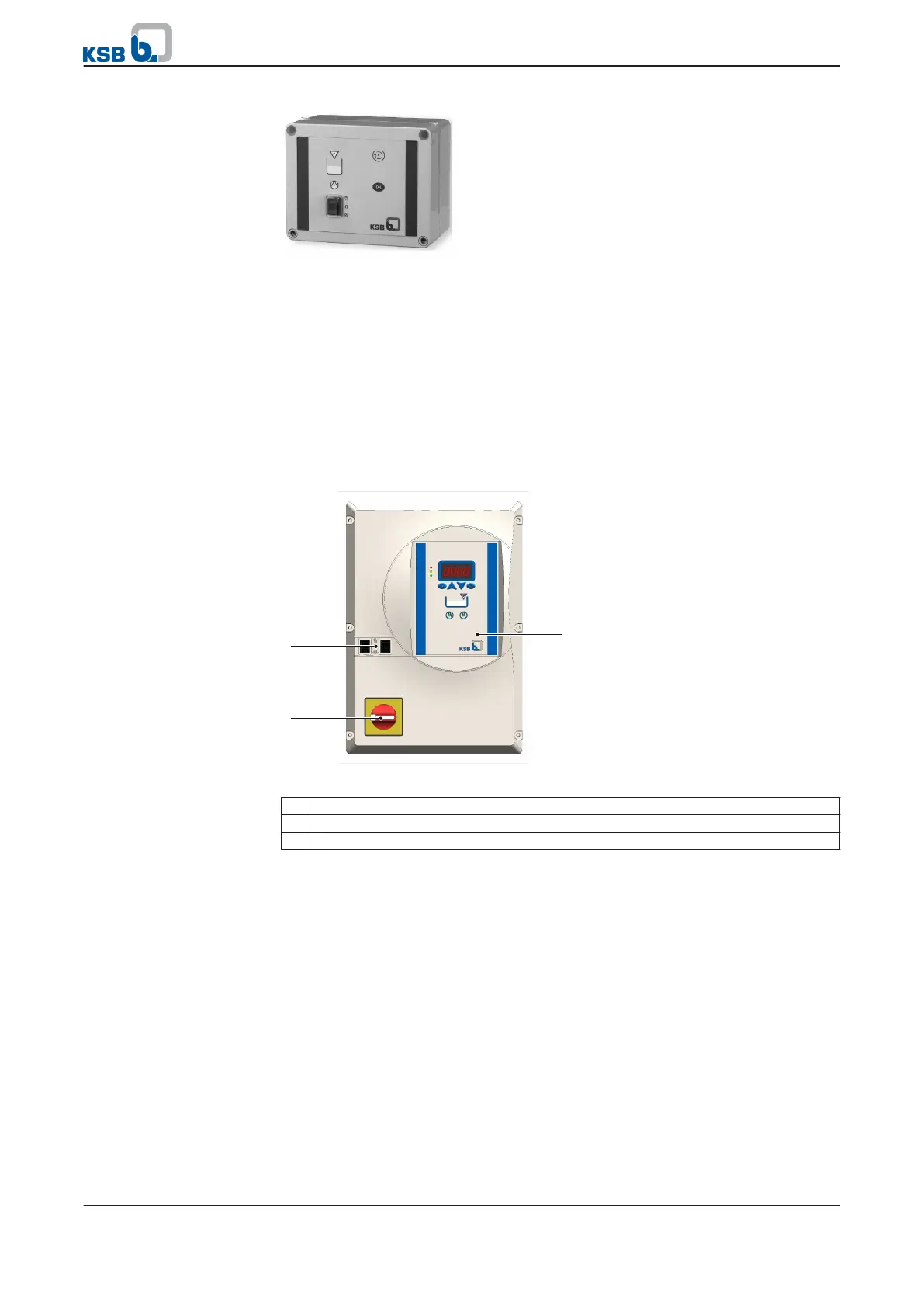

Fig. 5: Type Basic Compact (BC)
1 Control panel
2 Master switch (optional)
3 Manual-0-automatic switch
LevelControl Basic 2
Type Basic Control Cabinet (BS)
▪ Pump control and monitoring unit in sheet steel housing
▪ For either one or two pumps
▪ With display
▪ Level detection via:
–
Level sensor 0 - 5 V
▪ DOL starting or star/delta starting
4 Description
