Pump LED "High water" LED Operation
relay/
general fault
message
Pump Integrated
alarm buzzer
External fault
gone
Off Contact 11-14
closed
On or Off Off
LiveZero – Broken wire detection:
LiveZero
(unacknowledged)
Flashing red Contact 11-12
closed
Off Interval tone
LiveZero
(acknowledged)
Steady red Contact 11-12
closed
Off Off
LiveZero gone Off Contact 11-14
closed
Depending on
filling level
Off
Power failure:
Power failure Contact 11-12
closed
Off Interval tone
NOTE
If battery voltage drops below 5.3 V (Basic 1) or 10.6 V (Basic 2), the control units
automatically switch off the mains-independent alert, to prevent excessive
discharging of the battery.

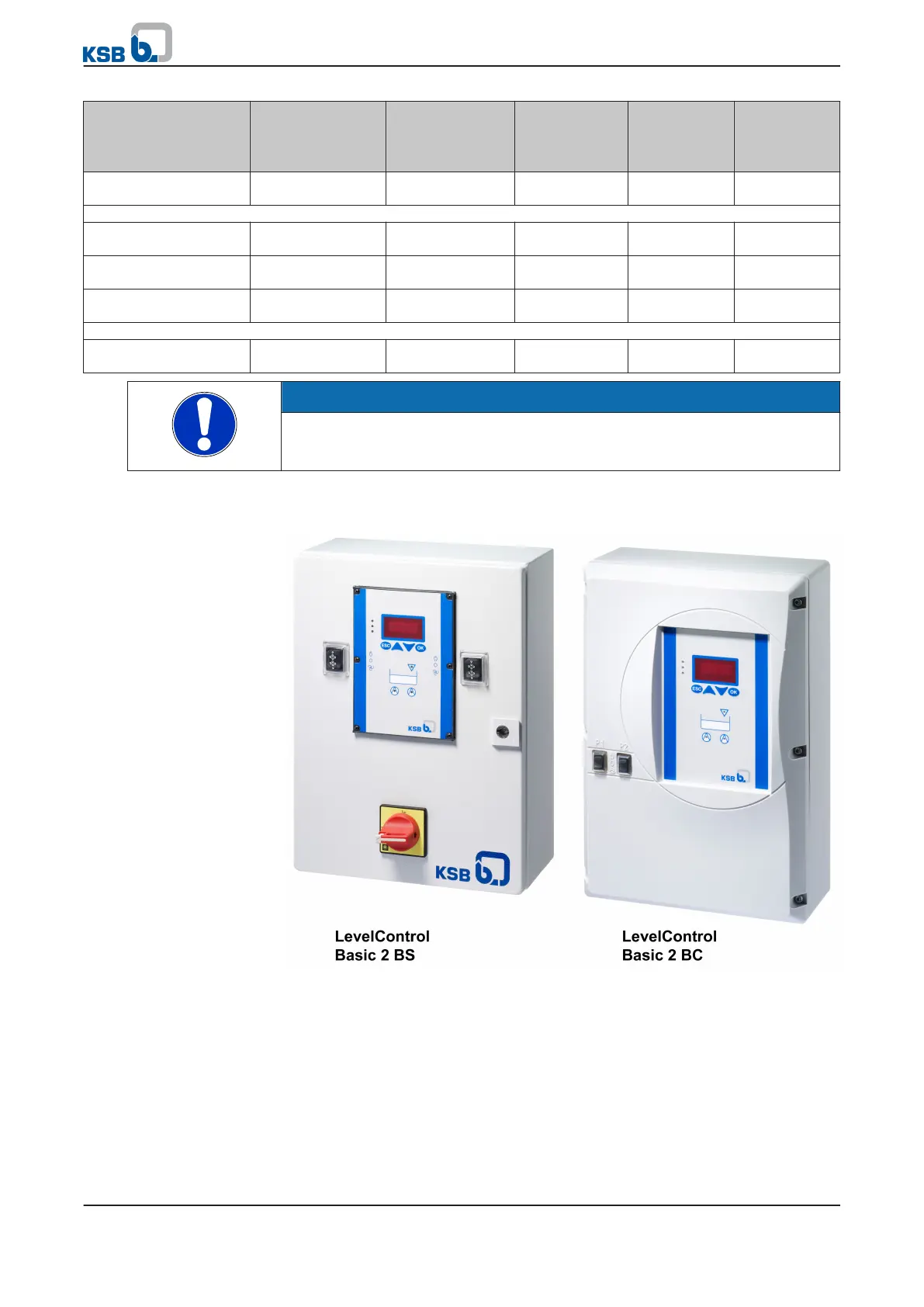

6.3.2 Lifting unit with LevelControl Basic 2
Steps required for commissioning:
1.
Set the parameter for the inlet nozzle to be used (recommended).
2. Connect the rechargeable battery.
3. Check the direction of rotation.
4. Test the lifting unit for correct function and leak-free operation.
