10.1.7 mini-Compacta UZS150 - Collecting tank

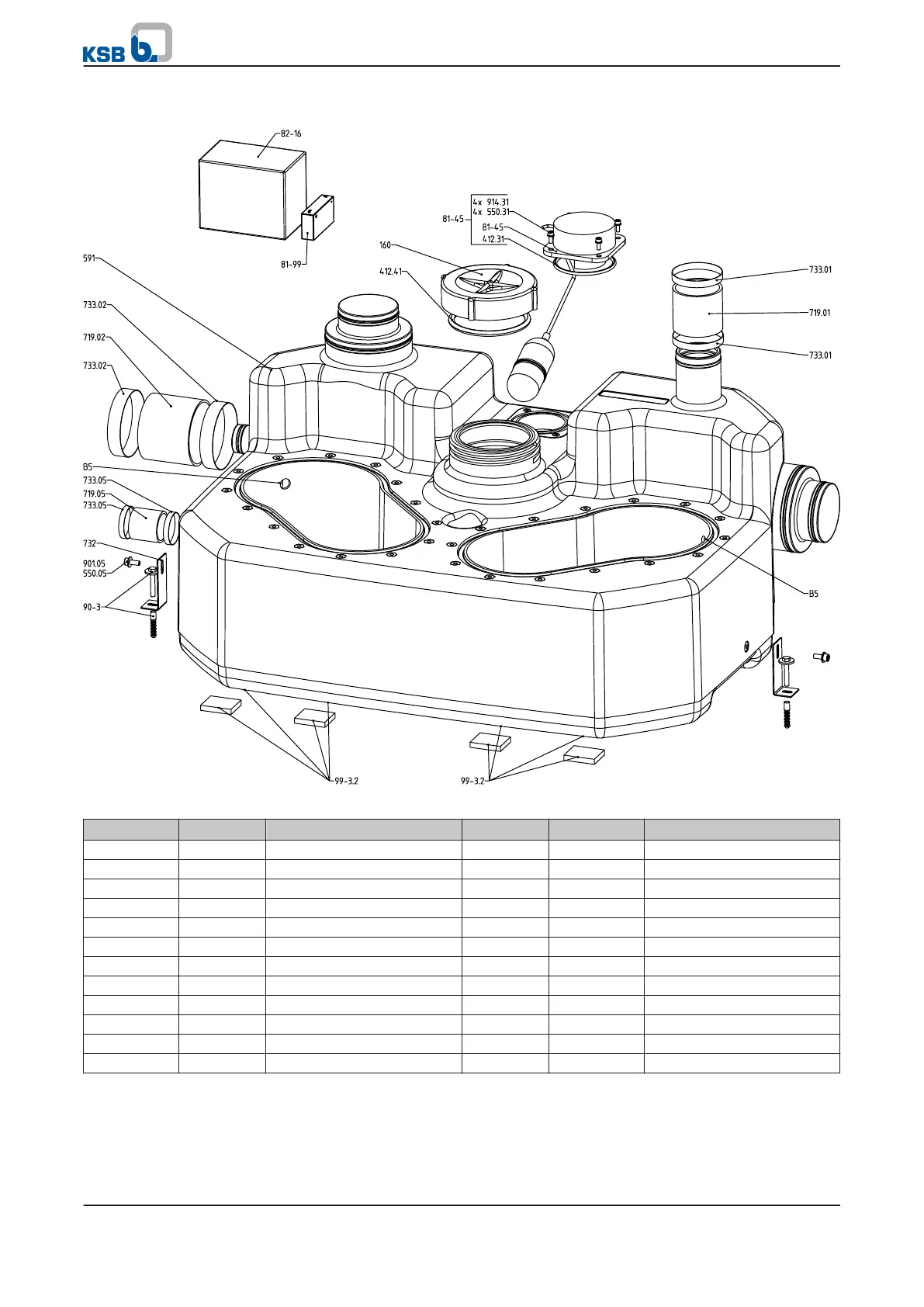

Fig. 41: Exploded view of mini-Compacta UZS150 - Collecting tank
Part No. Part No. Description Part No. Part No. Description
160 Cover 81-99 Rechargeable battery
412.31/.41 O-ring 92-16 Control unit
550.05 Disc 90-3 Set of mounting elements
591 Tank 901.05 Hex. head bolt
719.01/.02/.05 Hose 99-3.2 Set of pads
732 Bracket 5B Vent
733.01/.02/.05 Hose clip
81-45 Level sensor
412.31 O-ring
550.31 Disc
81-45 Level sensor
914.31 Hex. socket head cap screw
