KEB COMBIVERT F0 User Manual

85
ANTRIEBSTECHNIK

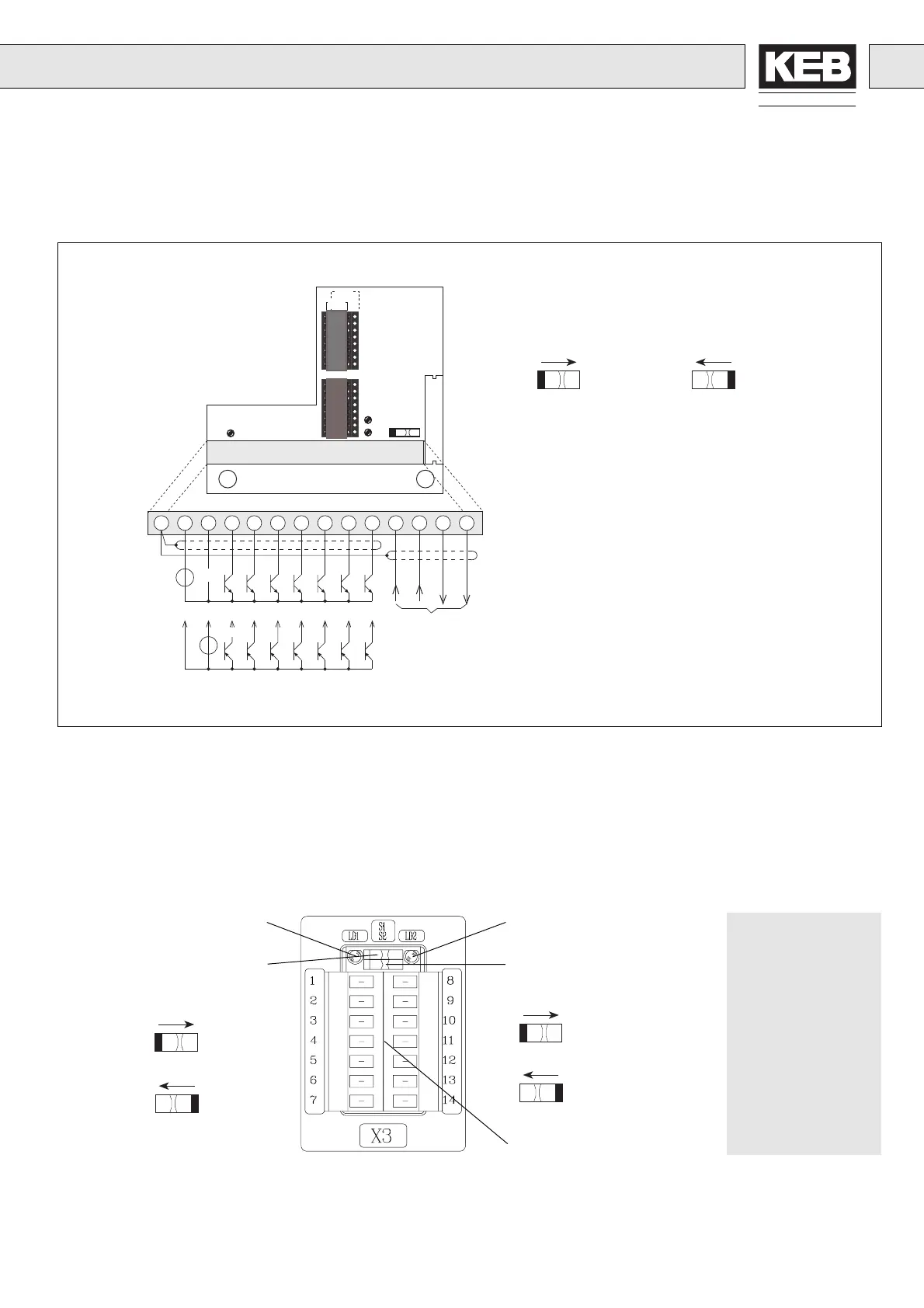

COMBIVERT F0
Rackversion Variante: 00.F0.D00-R20Z
Platine: 05.F0.010-0109
Rack Version Variant: 00.F0.D00-R20Z
Board: 05.F0.010-0109
LD1
RxD-Kontrolle/Control Light
S1 Abschlußwiderstand
S1 Terminal Resistance
150 ý
ohne
without
LD2
TxD-Kontrolle/Control Light
S2 NPN/PNP-Eingangslogik
S2 NPN/PNP Input Logic
PNP
NPN
X3
BA
BA
X3 Klemmenbelegung
X3Terminal Assignment
1 – 24 VDC
2 – TxD-B
3 – TxD-A
4 – GND
5 – RxD-A
6 – RxD-B
7–PE
8–F
9–R
10 – ST
11 – RST
12 – I3
13 – I2
14 – I1
SW1
AbschlußwiderstandRS485 / Terminal resistance RS485
150 ý ohne / without
LD1
RxD - Kontrolle / Control light
LD2
TxD - Kontrolle / Control light
LD3
24 VDC Kontrolle / 24 VDC Control light
CN2
1–PE 8–F
2 – 24 VDC 9 – R
3 – GND 10 – RST
4 – I1 11 – RxD - B
5 – I2 12 – RxD - A
6 – I3 13 – TxD - B
7 – ST 14 – TxD - A
BA BA
12345678910 11 12 13 14
+
Ð
RS485
CN2
Ð
+
24 VDC
24 VDC
20
1
LD2
LD1
LD3
SW1
00.F0.021-0209
CN2
JP2
JP1
NPN
PNP
NPN – potentialgetrennt / potential separated
PNP – potentialgetrennt / potential separated
JP1 / JP2
Eingangslogik der Steuereingänge.
JP1 und JP2 auf gleiche Logik einstellen!
Input logic of control inputs.
Adjust JP1 and JP2 to the same logic!
Chassisversion Variante: 00.F0.D00-020Z
Platine: 00.F0.021-0209
Chassis Version Variant: 00.F0.D00-020Z
Board: 00.F0.021-0209
