RS232/485- Baugruppe potentialgetrennt für Rackversion
Variante: 00.F0.D00-R02Z
Platine: 05.F0.010-0029
Der KEB COMBIVERT F0 in Rackversion wird standardmäßig mit
einer potentialgetrennten RS232/485-Baugruppe geliefert. Die
Schnittstelle hat keinen internen Abschlußwiderstand. Der Leitungs-
abschluß erfolgt gemäß Bild 2 im Stecker.
RS232/485-Module isolated for Rack Version
Variant: 00.F0.D00-R02Z
Board: 05.F0.010-0029
The rack version of the KEB COMBIVERT F0 will be series-
produced with an isolated RS232/485-unit. There is no build-in
terminal resistance in the RS485-interface. The line termination is
done according to fig. 2 in the connector.
RxD-Kontrolle/Control Light
TxD-Kontrolle/Control Light
Belegung Buchse X3 / Occupancy of socket X3
PIN Nr. RS485 Signal Bedeutung Meaning
Bezug / Norm
1 – – frei free
2 – TxD Sendesignal/RS232 transmit signal/RS232
3 – RxD Empfangssignal/RS232 receive signal/RS232
4 A' RxD-A Empfangssignal A/RS485 receive signal A/RS485
5 B' RxD-B Empfangssingal B/RS485 receive signal B/RS485
6 – VP Versorgungsspannung-Plus, supply voltage plus,
+5 V (Ri = 1kOhm) +5 V (Ri = 1 kOhm)
7 C/C' DGND Datenbezugspotential data reference potential
8 A TxD-A Sendesignal A/RS485 transmit signal A/RS485
9 B TxD-B Sendesignal B/RS485 transmit signal B/RS485
Buchse X3
Socket X3
54321
9876

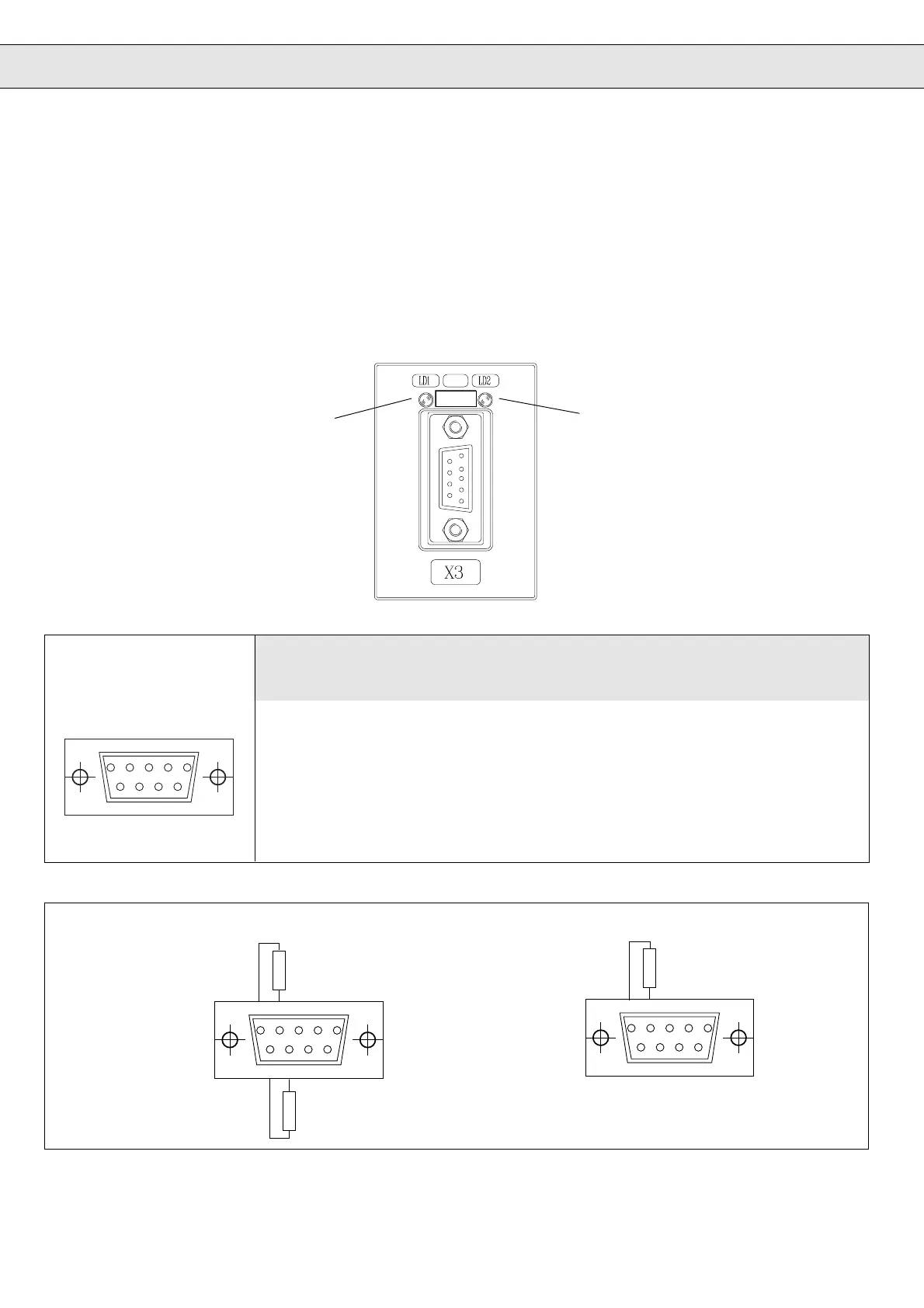

Bild 1/
Figure 1
Bild 2/
Figure 2
54321
9876
100
100
54321
9876
100
Vollduplex / Full duplex Halbduplex / Half duplex
