KEB COMBIVERT F5 Series Installation Guideline

31
Product Description
2. Product Description
2.1 Application
The frequency inverter KEB COMBIVERT F5 serves exclusively for the control and
regulation of asynchronous motors. The operation of other electric consumers is prohibited
and can lead to the destruction of the unit.
Frequency inverters are components which are intended for the installation in electric
systems or machines.
2.2 Rating plate

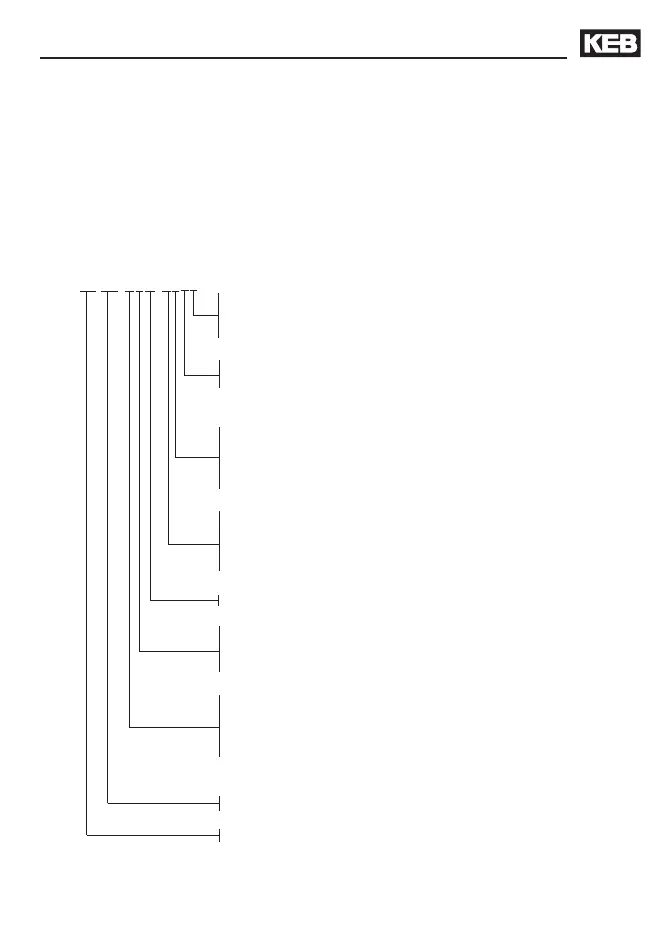

14.F5.G1E–3A00
Cooling
0: Standard 3: Convection
1: Flat rear A: Standard, varnished
Interface type
0: no interface
Switching frequency / overload characteristic
0: 2 kHz/125%/150% 6: 8 kHz/150%/180%
4: 2 kHz/150%/180% A: 8 kHz/180%/216%
5: 4 kHz/150%/180% B:16 kHz/180%/216%
Input identification
1: 3ph 230 V AC or DC-Supply
3: 3ph 400 V AC or DC-Supply
Housing type E
Accessory
1: GTR 7 B: such as 1 but with driver relay
3: GTR 7 and integrated filter D: such as 3 but with driver relay
Control type
B: BASIC
C: COMPACT
G:GENERAL
Series F5
Inverter size

KEB COMBIVERT F5 Series Specifications

General

Control Method	Vector Control, V/f Control
Protection Class	IP20
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit, overtemperature
Communication Interfaces	CAN, PROFIBUS, Modbus RTU
Cooling Method	Fan Cooled
Relative Humidity	Up to 95% (non-condensing)
