KEB COMBIVERT F5 Series Installation Guideline

35
Installation and Connection
3. Installation and Connection

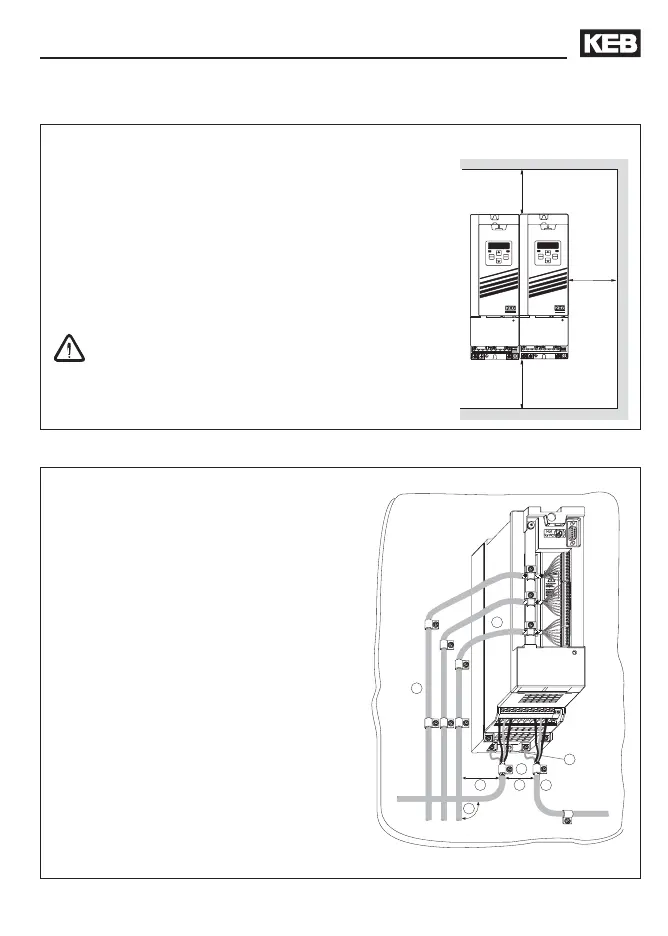

3.1 Control Cabinet Installation
3.2 EMC-conform Installation
Installation position and min. distances
Protective system: IP20
Operation temperature: -10...45 °C (14...113 °F)
Storage temperature: -25...70 °C (-13...158 °F)
max. heat sink temperature: 90 °C (194 °F)
Climatic category (EN 50178): 3K3
Relative humidity (without condensation): max. 95 %
Protect the COMBIVERT against aggressive gases and
aerosols !
1) Always apply the shielding of motor and
control cables over a large contact
surface on both sides.
2) Distance between control and power
cables at least 10..20 cm (4...8 inch).
3) Lay motor and power cable separately.
4) If it cannot be avoided, cross control
and power cables in a right angle.
5) Install all cables as close as possible
to the mounting plate - ideal in a metal
cable duct.
6) Mount COMBIVERT well conducting
with the mounting plate. Remove the
paint beforehand.
You can find further instructions regarding
the EMC-conform wiring in the Internet at
KEB.
150 mm
30 mm
100 mm
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNIK
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNIK
6 inch
1 inch
4 inch
90°
10-20cm
1
1
4
2 3
5
5
6

KEB COMBIVERT F5 Series Specifications

General

Control Method	Vector Control, V/f Control
Protection Class	IP20
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit, overtemperature
Communication Interfaces	CAN, PROFIBUS, Modbus RTU
Cooling Method	Fan Cooled
Relative Humidity	Up to 95% (non-condensing)
