30

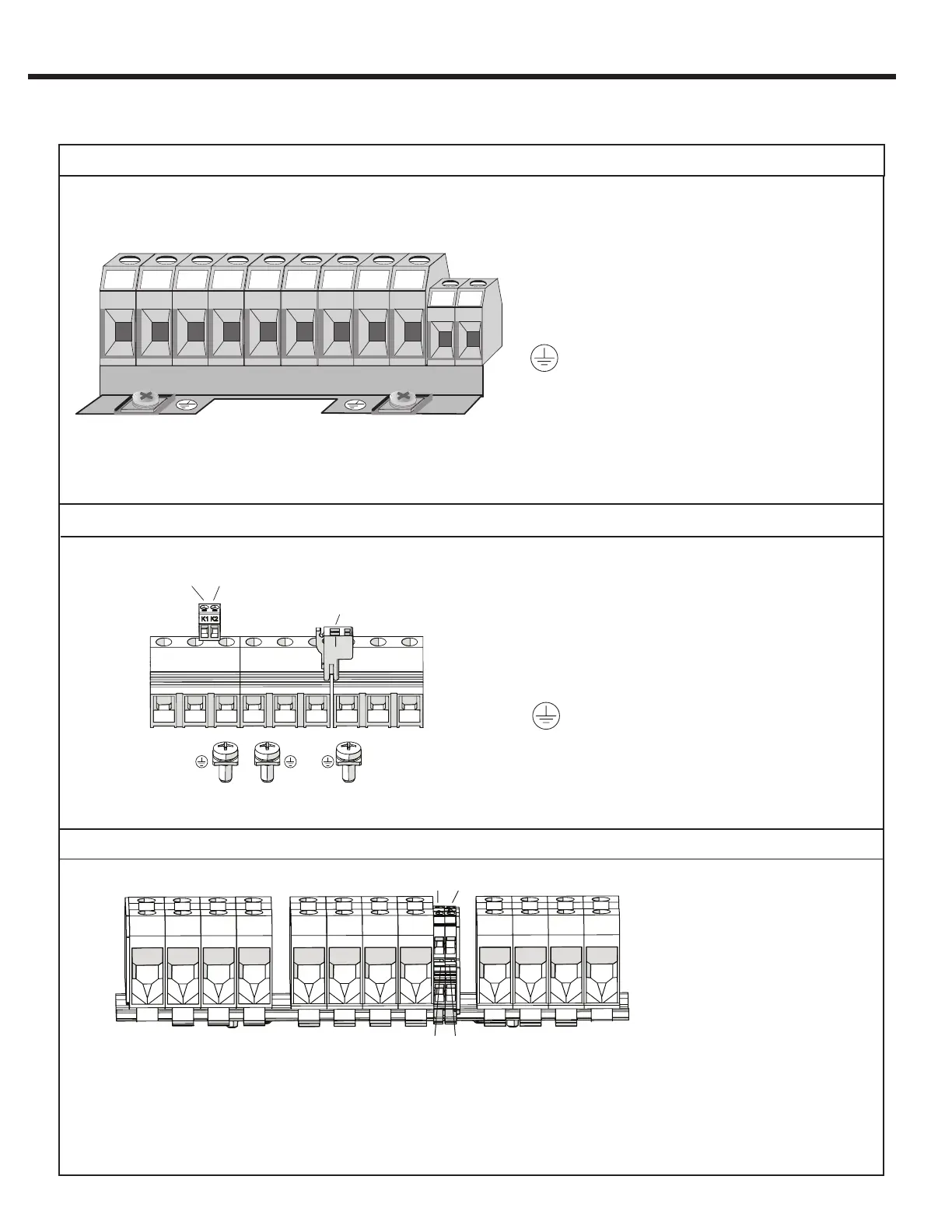

Power Circuit Terminal Summary
L1, L2, L3 3 phase supply voltage
+ +, - - DC supply connection
+ +, PB Connection for braking resistor
Housing Size H
Verify input voltage with name plate for proper connection 230V or 480V
T1, T2 Connection for temperature sensor
K1,K2 Brake transistor monitor terminals
U, V, W Motor connection
PE Connection for earth ground
Housing Size E
Housing Size G
L1, L2, L3 3 phase supply voltage
++, - - Connection for DC supply
++, PB Connection for braking resistor
K1,K2 Brake transistor monitor terminals
T1, T2 Connection for temperature sensor
U, V, W Motor connection
Connection for earth ground
L1, L2, L3 3 phase supply voltage
++, - - Connection for DC supply
++, PB Connection for braking resistor
U, V, W Motor connection
T1, T2 Connection for temperature sensor
Connection for earth ground
Verify input voltage with name plate for proper connection 230V or 480V
Verify input voltage with name plate for proper connection 230V or 480V
Terminal Tightening Torque: 35 inlbs (4Nm)
Terminal Tightening Torque: 11 inlbs (1.2Nm)
Terminal Tightening Torque: 4.5 inlbs (0.5Nm)
1. 7. Power Circuit Terminal Summary
L1 L2 L3
K1 K2
++ - -PB
U
V
W
T2
T1
L1 L2 L3 PE PE ++ - -PBPEU VW
K1
K2
T1
T2
To Next Page
General
