KeepRite DLCCHR - DLCCAR;DLCCHR Wiring (Size 18, 208;230 V); DLCCAR;DLCCHR Wiring (Size 24, 208;230 V)

328 080000 01 11
Specifications subject to change without notice.
WIRING DIAGRAM − OUTDOOR UNIT − DLCCAR / DLCCHR (CONT)

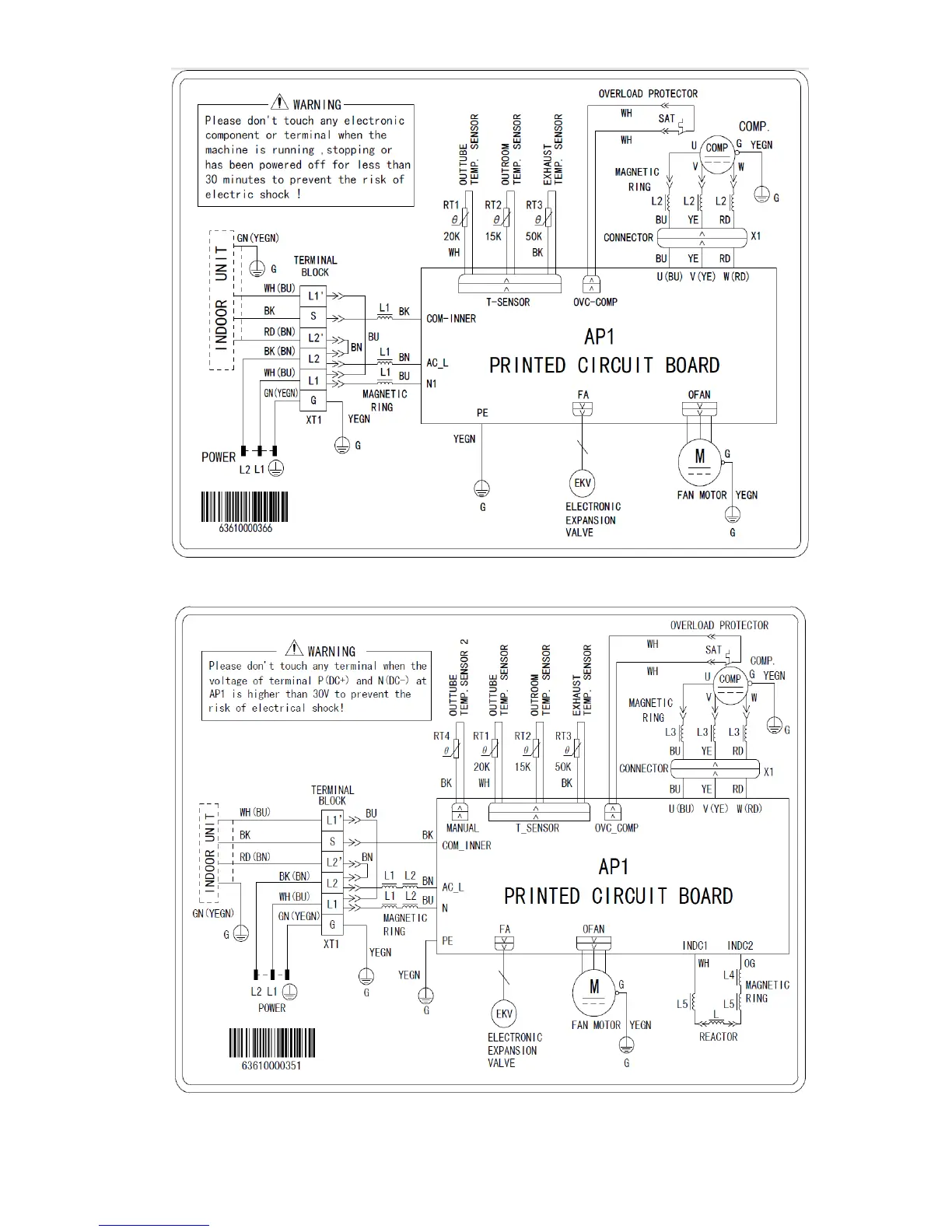

Fig. 14 - Outdoor Unit Size 18 (208/230V)
Fig. 15 - Outdoor Unit Size 24 (208/230V)
