PCB PRINTED DIAGRAMS (CONT)
4321
5
6
7
8910111213
GRJW819-A3 V1.2 2013/06/25/12

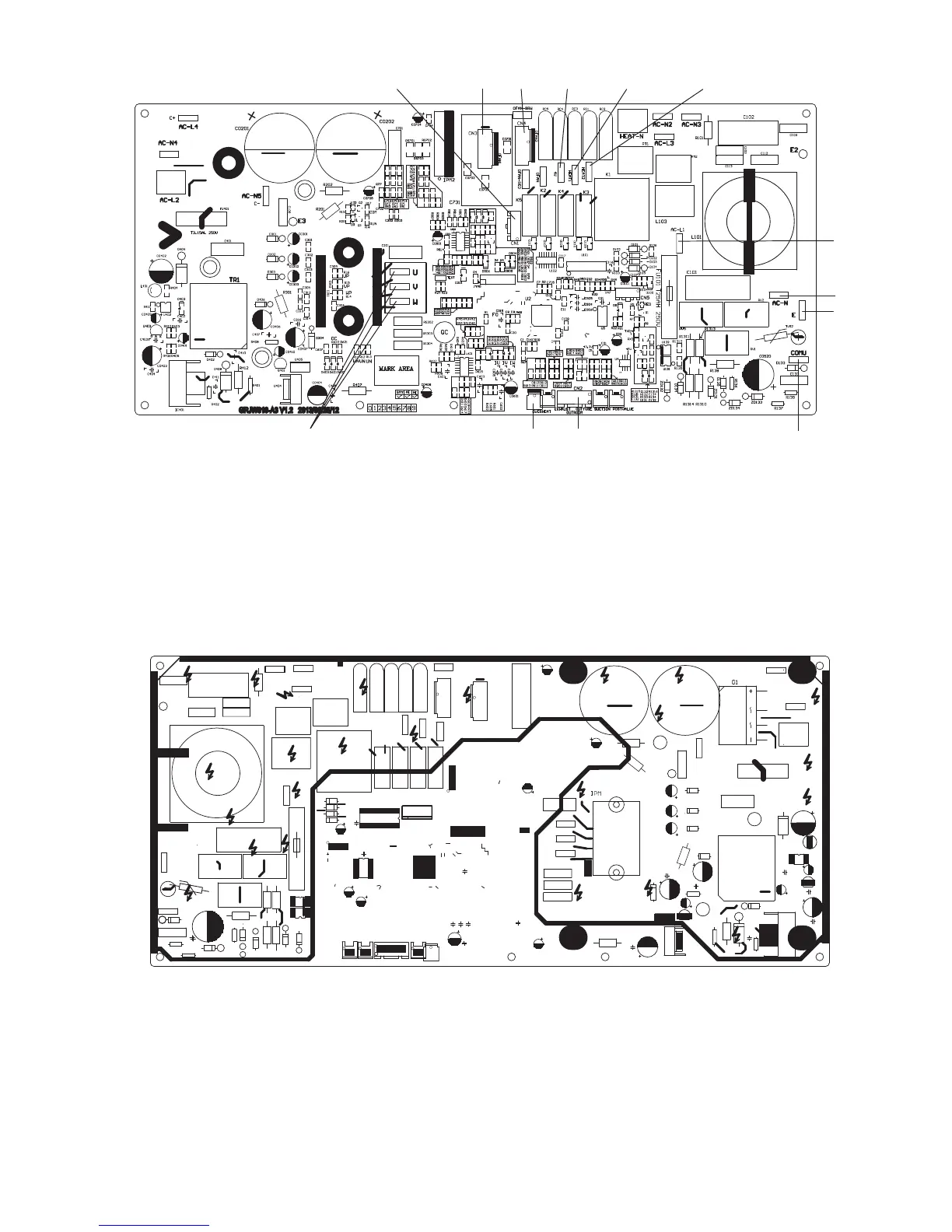

Fig. 32 - Outdoor Units DLCCAR / DLCCHR 115V sizes 9 and 12 Top View
Table 14—Outdoor Units DLCCAR / DLCCHR
NO. NAME NO. NAME NO. NAME
1 Compressor output port 6 Power neutral wire port 11 AC fan motor port
2 Overload port 7 Live wire 12 DC fan motor port
3 Temperature sensor port 8 Compressor electric heating belt port 13 Electronic expansion valve port
4 Communication wire port 9 Compressor electric heating belt port / /
5 Earthing wire port 10 Port of AC fan motor / /
Fig. 33 - Outdoor Units DLCCAR / DLCCHR 115V sizes 9 and 12 Bottom View
