KeepRite DLCCHR - Dimensions − Outdoor

4 328 080000 01
Specifications subject to change without notice.
DIMENSIONS − OUTDOOR
N
M
H
D
W
S
P

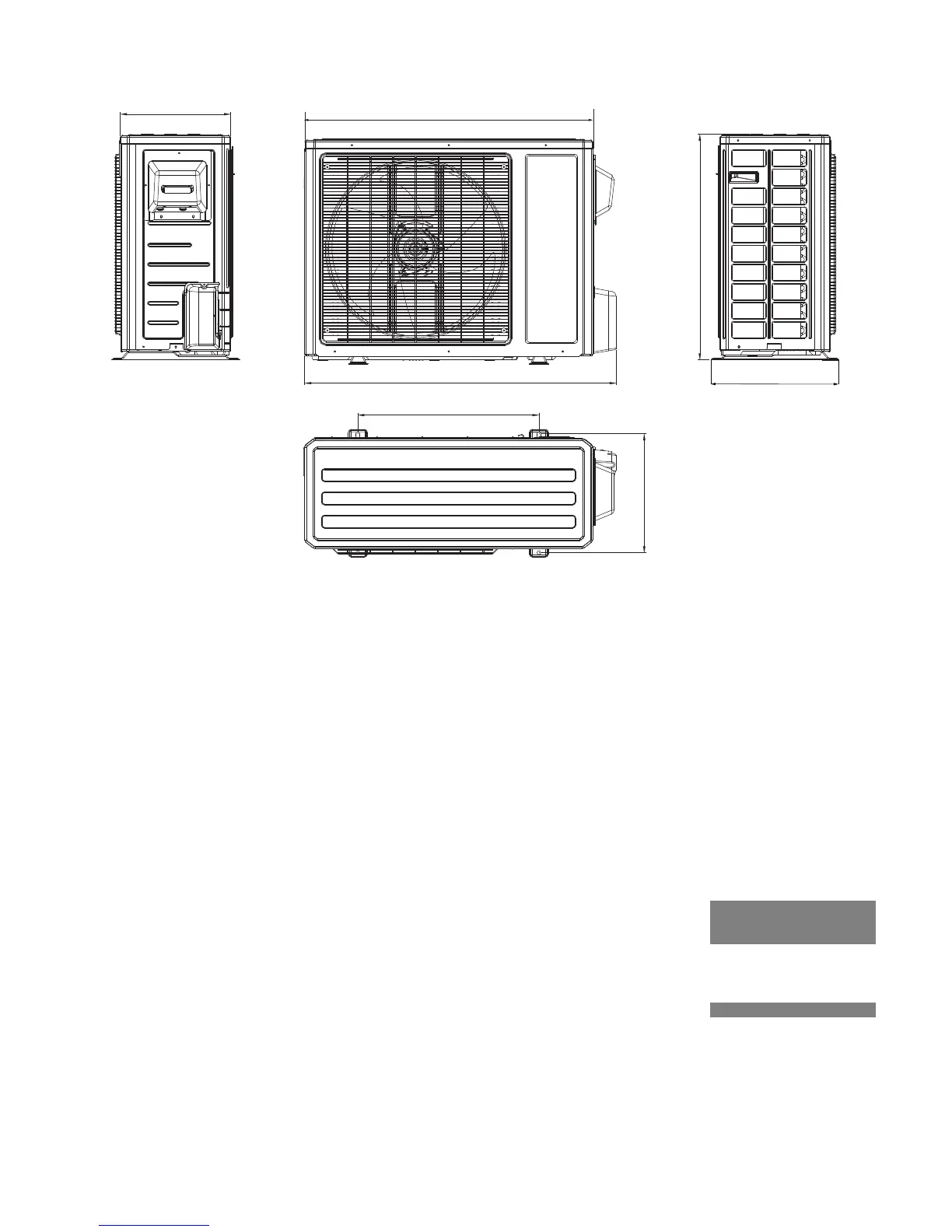

Fig. 3 - Outdoor Unit
Table 5—DLFCAB / DLCCAR / DLFCHB / DLCCHR
SYSTEM SIZE 9K 12K 9K 12K 18K 24K 30K 36K
Voltage 115/1/60 115/1/60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Height (H) in 21.3 23.3 21.3 23.3 27.6 31.1 31.1 31.1
Width (W) in 33.4 33.4 33.4 33.4 37.6 38.6 38.6 38.6
Depth (D) in 12.6 12.6 12.6 12.6 15.6 16.8 16.8 16.8
M in 10.0 10.0 10.0 10.0 13.4 14.6 14.6 14.6
N in 30.0 30.0 30.0 30.0 35.0 36.2 36.2 36.2
P in 21.3 21.3 21.3 21.3 22.0 24.0 24.0 24.0
S in 11.3 11.3 11.3 11.3 14.3 15.6 15.6 15.6
NET Weight Cooling Only lbs 62.8 73.9 72.8 80.5 113.6 147.7 152.1 154.4
NET Weight Heat Pump lbs 71.7 77.2 78.3 86 114.7 142.2 154.4 161
Table 6—DLFDAB / DLCDAR / DLFDHB / DLCDHR
SYSTEM SIZE 9K 12K 9K 12K 18K 24K 30K* 36K*
Voltage 115/1/60 115/1/60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Height (H) in 21.3 21.3 21.3 21.3 27.6 27.6
Width (W) in 30.6 30.6 30.6 30.6 37.6 37.6
Depth (D) in 12.6 12.6 12.6 12.6 15.6 15.6
M in 10.1 10.1 10.1 10.1 13.4 13.4 14.6 14.6
N in 28.0 28.0 28.0 28.0 35.0 35.0 36.2 36.2
P in 20.0 20.0 20.0 20.0 22.0 22.0 24.0 24.0
S in 11.3 11.3 11.3 11.3 14.3 14.3 15.6 15.6
NET Weight Cooling Only lbs 59.5 63.9 66.2 70.6 90.4 103.6
NET Weight Heat Pump lbs 62.8 67.3 65.0 69.5 95.9 110.3 154.4 161.0
NOTE: * Sizes 30 and 36 not available as Cooling Only.
