DISASSEMBLY INSTRUCTIONS OUTDOOR UNIT SIZES 30−36 (CONT)
Steps

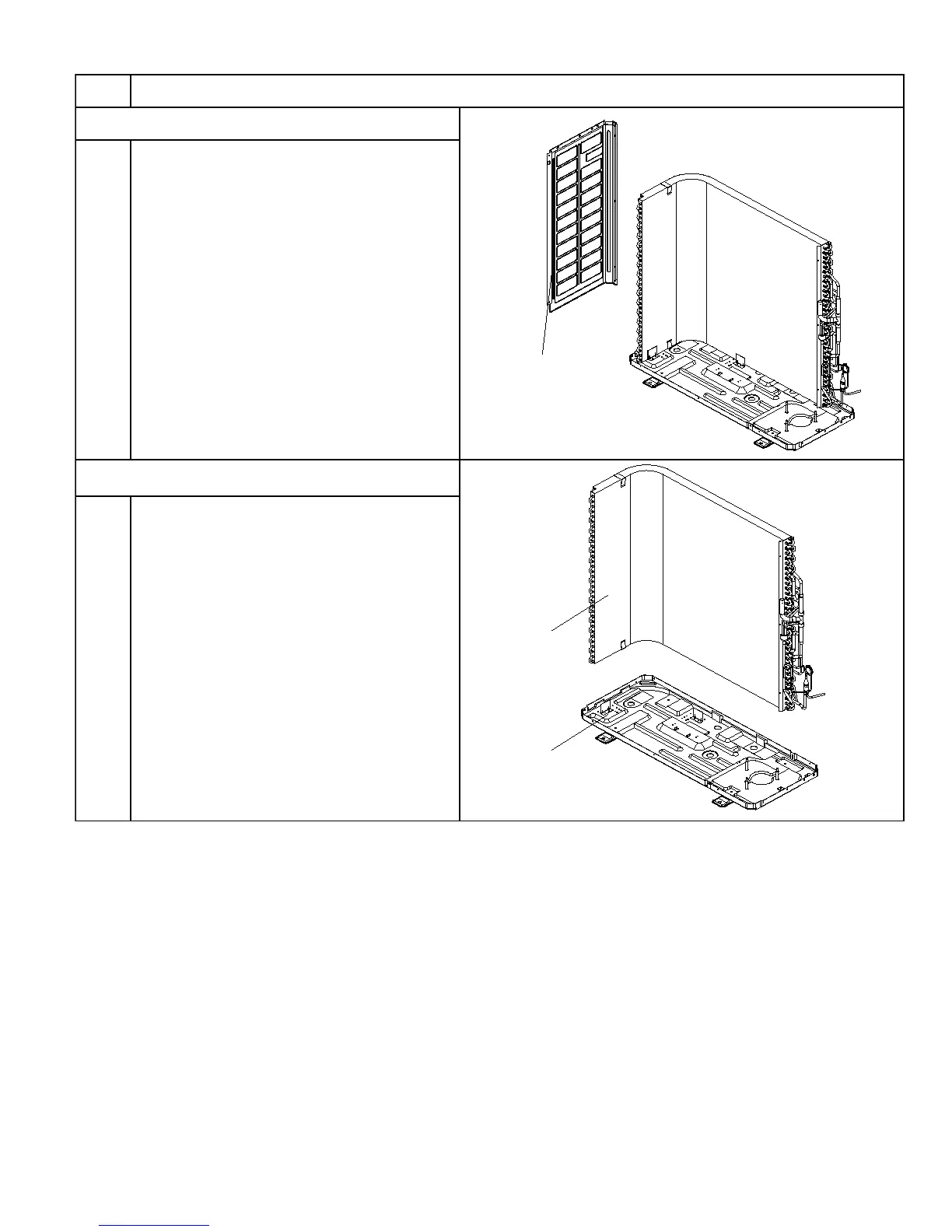

15.Remove the left side plate
left side plate
Twist off the screws connecting the left side plate
and chassis with a screwdriver, .
Next, remove the left side plate.
Pull it up to separate the chassis and condenser.
16.Remove the chassis and condenser
chassis
condenser
Procedure
