KeepRite DLCCHR - Outdoor Units DLCCAR; DLCCHR Size 18 Bottom View; Outdoor Units DLCCAR; DLCCHR Size 18 Top View

328 080000 01 23
Specifications subject to change without notice.
PCB PRINTED DIAGRAMS (CONT)
1234567
8
13
9
10
11
12

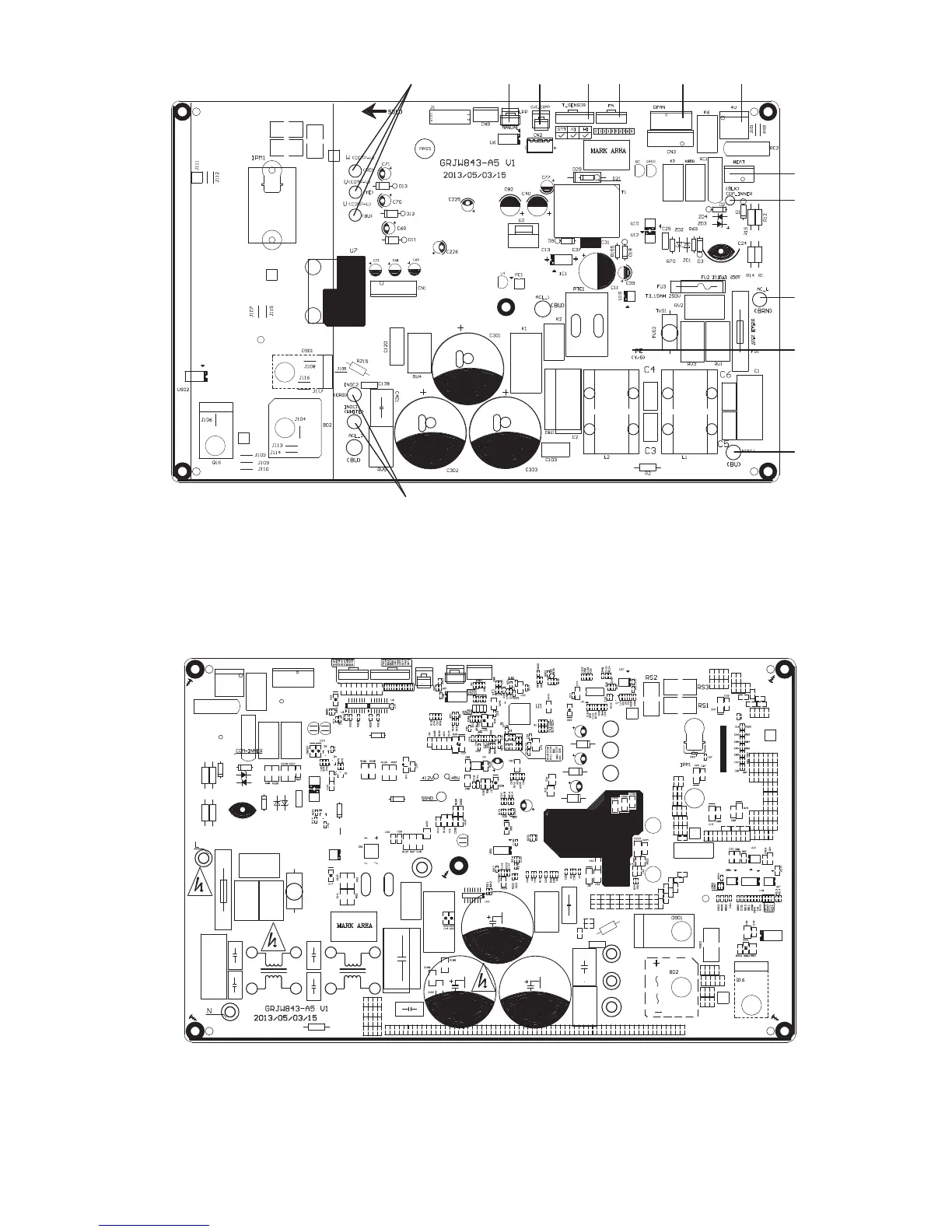

Fig. 36 - Outdoor Units DLCCAR / DLCCHR Size 18 Top View
Table 16—Outdoor Units DLCCAR / DLCCHR
1 2 3 4 5 6 7 8 9 10 11 12 13
Compressor
Wire Terminal
Outdoor heat
exchanger middle
copper pipe
temperature
sensor
terminal
Compressor
overload
protection
terminal
Outdoor
temperature
sensor
terminal
Electronic
Expansion
Valve Sensor
Outdoor Fan
Terminal
4-Way
Valve
Terminal
Indoor Unit
Communication
Wire
Power
Supply
Live
Wire
Earthing
Wire
Power
Supply
Neutral Wire
PFC
Induction
Wire
Chassis
Electric
Heater
terminal
Fig. 37 - Outdoor Units DLCCAR / DLCCHR Size 18 Bottom View
