KeepRite DLCCHR - Clearances for Installation; Indoor Unit Clearance Requirements; Outdoor Unit Clearance Requirements

328 080000 01 5
Specifications subject to change without notice.

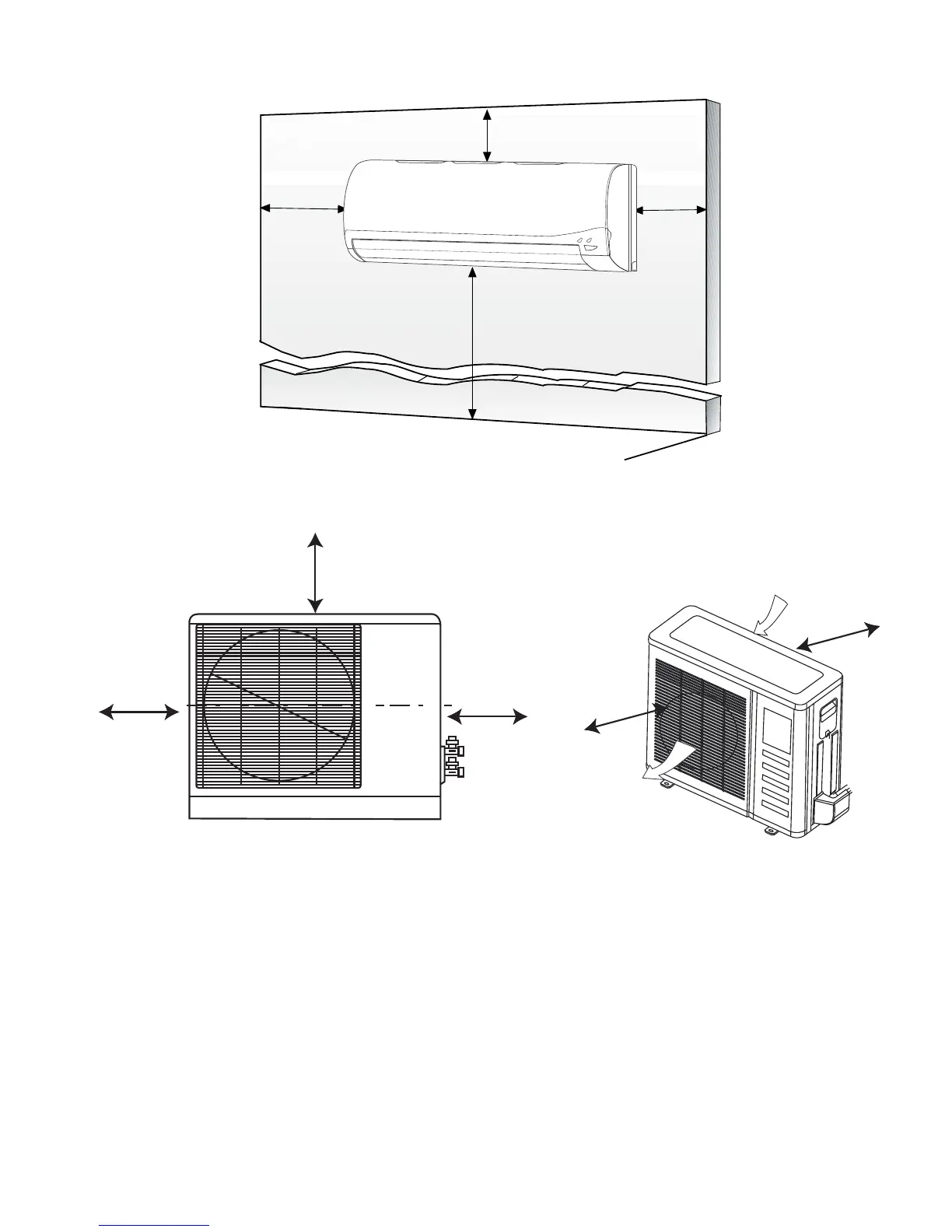

CLEARANCES − INDOOR
6 " (0.15m ) min.
5
"
(0.13m)
min.
6'
5 "
(0.13m)
min.
(1.8m)
CEILING
FLOOR
Fig. 4 - Indoor Unit Clearance
CLEARANCES − OUTDOOR
A
D
B
Air-outlet
Air-inlet
C
E
Fig. 5 - Outdoor Unit Clearance
Table 7—Outdoor Clearances
UNIT
MINIMUM VALUE
in. (mm)
A 24 (609)
B 24 (609)
C 24 (609)
D 4 (101)
E 4 (101)
