KeepRite DLCCHR - Outdoor Unit Wiring Diagrams (DLCD) (Continued); DLCDHR Wiring (Size 30, 208;230 V); DLCDHR Wiring (Size 36, 208;230 V)

328 080000 01 17
Specifications subject to change without notice.
WIRING DIAGRAM − OUTDOOR UNIT − DLCD (CONT)

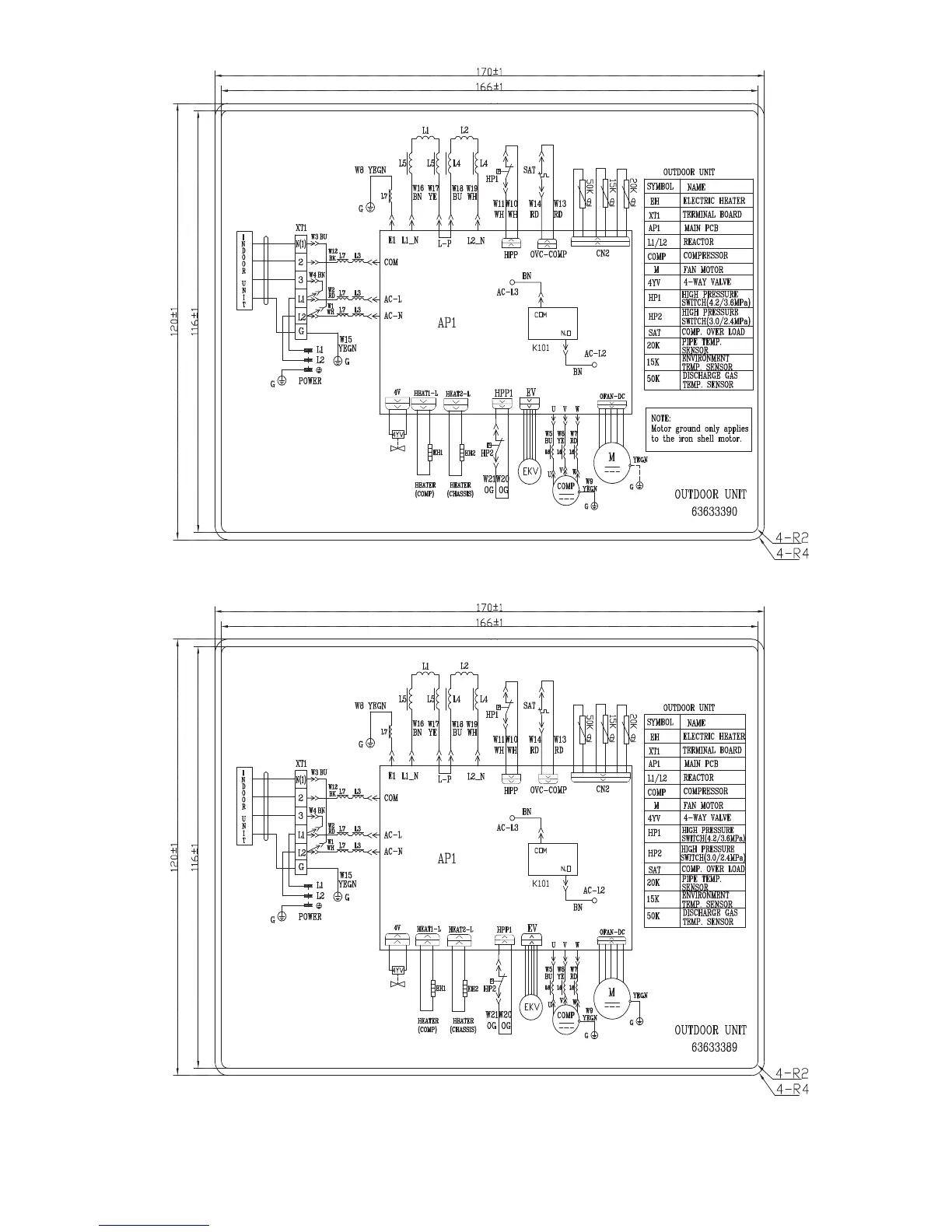

Fig. 26 - Outdoor Unit DLCDHR Size 30 (208/230V)
Fig. 27 - Outdoor Unit DLCDHR Size 36 (208/230V)
