KeepRite DLCCHR - Indoor Units DLFCAB; DLFCHB Sizes 30 and 36 Top View; Indoor Units DLFCAB; DLFCHB; Indoor Units DLFCAB; DLFCHB Sizes 30 and 36 Bottom View

20 328 080000 01
Specifications subject to change without notice.
PCB PRINTED DIAGRAMS (CONT)
1
2 2 2
3 3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18 19 20 21

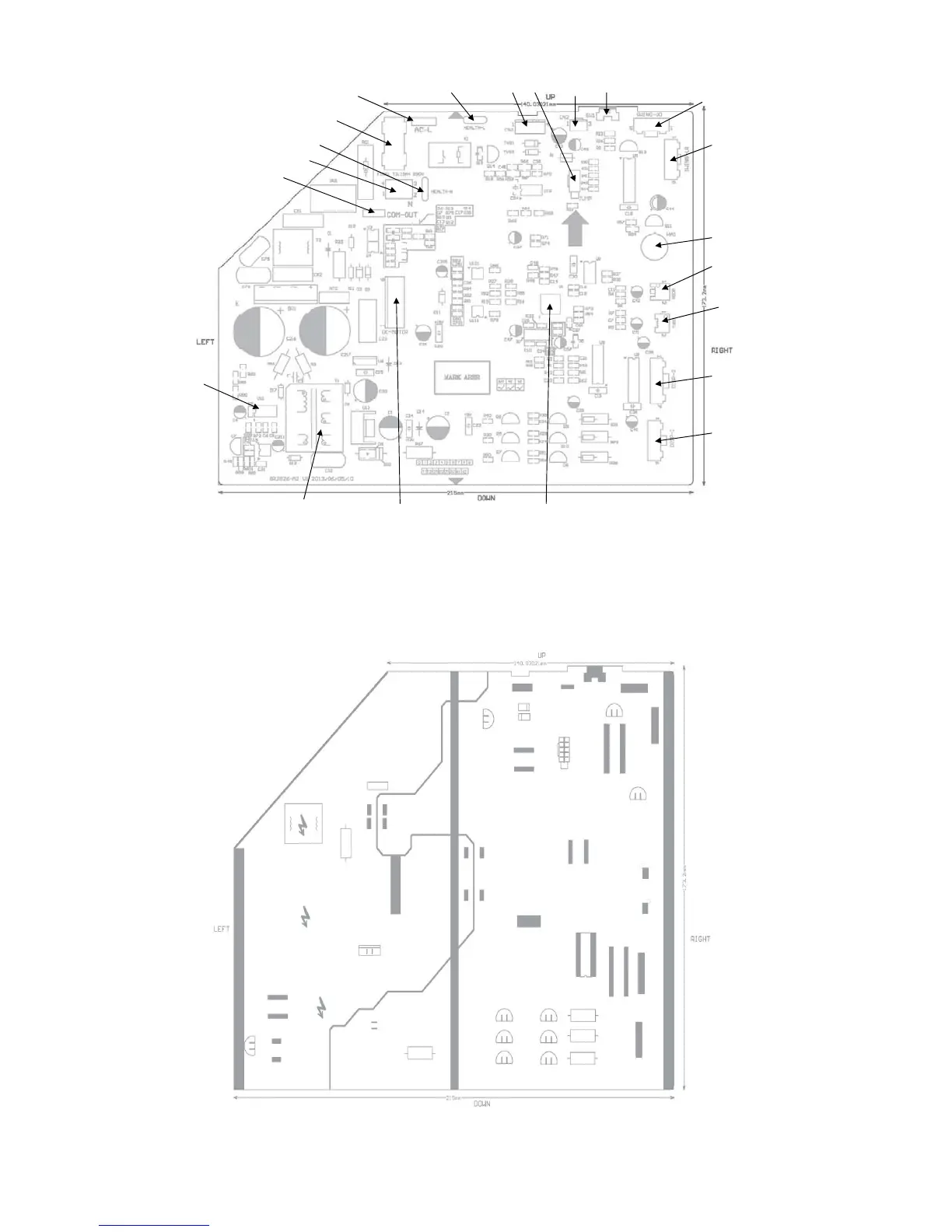

Fig. 30 - Indoor Units DLFCAB / DLFCHB Sizes 30 and 36 Top View
Table 13—Indoor Units DLFCAB / DLFCHB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 12
Power
supply
live wire
Fuse
Neutral
wire for
health
function
interface
Power
Supply
Neutral
wire
Communication
interface
Power
Switch
High−
frequency
transformer
Fan
motor
interface
Buzzer
Display
Interface
Display
Interface
Indoor tube
temperature
sensor
interface
Ambient
temperature
interface
Wired
Controller
Interface
Left &
Right
Swing
Terminal
Up &
Down
Swing
Terminal
Auto
Button
BMS
Interface
Jumper
Cap
Wired
Controller
Interface
Live Wire for
Health Function
Interface
Fig. 31 - Indoor Units DLFCAB / DLFCHB Sizes 30 and 36 Bottom View
