Keithley 2000 Quick Reference Guide

7
INPUTS switch in the REAR position. Note that current
(DCI and ACI) measurements cannot be made from the
rear panel terminals.
0
MULTIMETER
RANGE
!
F
500V
PEAK
FRONT/REAR
2A 250V
AMPS
HI
INPUT
LO
SENSE
Ω 4 WIRE
INPUTS
350V
PEAK
1100V
PEAK
AUTO
RANGE
R
Model 2000
Measure DCV, ACV,
Ω2, FREQ (PERIOD)
or TEMP *
* Temperature measurements are typically
performed through a thermocouple
scanner card, such as the Model 2001-TCSCAN.
See the User's Manual for details.
0
MULTIMETER
RANGE
!
F
500V
PEAK
FRONT/REAR
2A 250V
AMPS
HI
INPUT
LO
SENSE
Ω 4 WIRE
INPUTS
350V
PEAK
1100V
PEAK
AUTO
RANGE
R
Model 2000
Measure
DCI or ACI
0
MULTIMETER
RANGE
!
F
500V
PEAK
FRONT/REAR
2A 250V
AMPS
HI
INPUT
LO
SENSE
Ω 4 WIRE
INPUTS
350V
PEAK
1100V
PEAK
AUTO
RANGE
R
Model 2000
Measure
Ω4
R

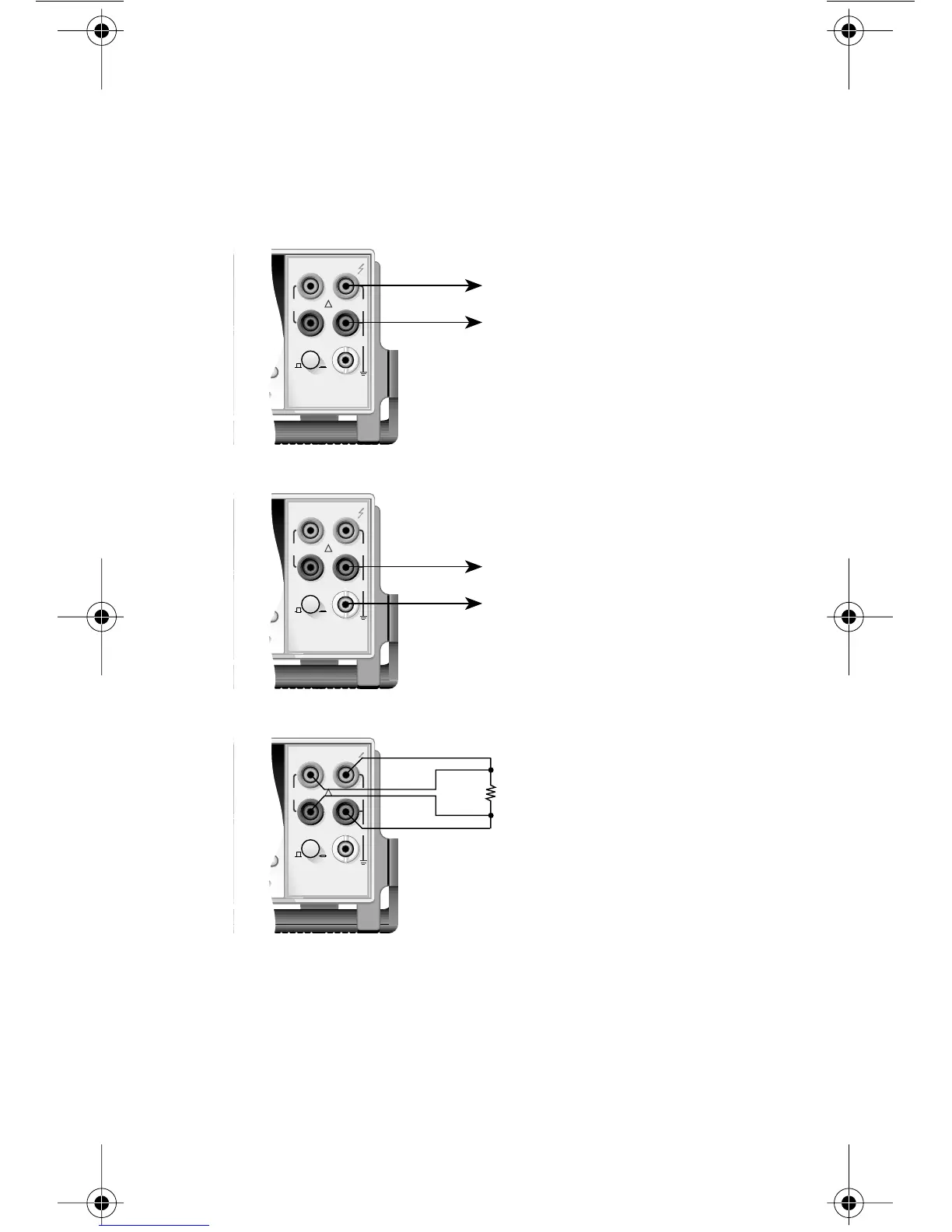

Figure 1. Basic measurement connections
2000-903-01A Page 7 Thursday, December 23, 1999 7:52 AM

Keithley 2000 Specifications

General

Digits	6.5
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	100 Ω to 100 MΩ
Connectivity	IEEE-488 (GPIB)
Display Type	VFD
