5½ Digit Multimeter Reference Manual Section 2:
2110-901-01 Rev. C/August 2013 2-7

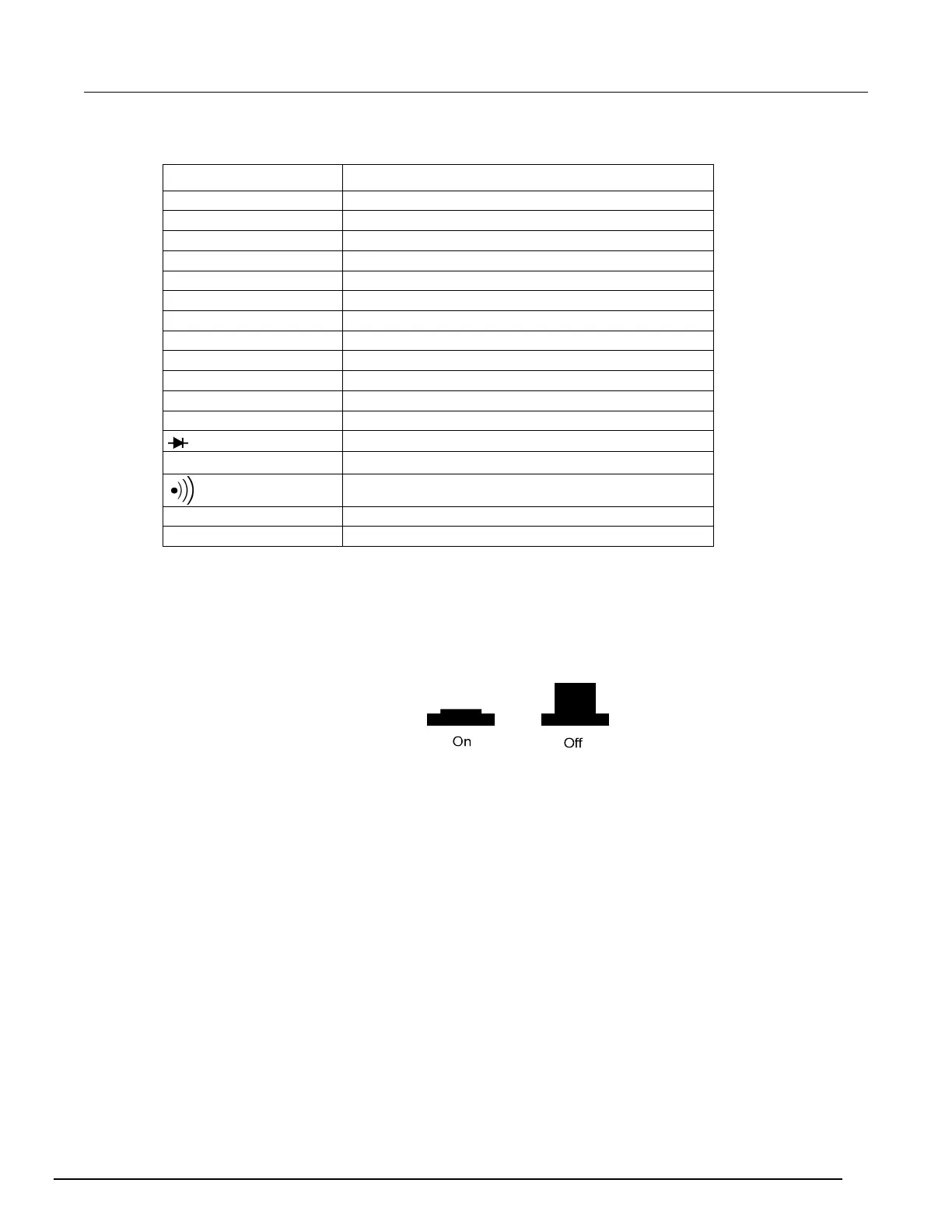

The following table describes the meaning of each lit indicator.
Indicator Indicates
Instrument is controlled via the GPIB Interface.
Remote interface operation via the USB Interface.
Manual range mode is selected.
External triggering is enabled.
The instrument has received a trigger.
Reading hold function is enabled.
Internal memory is in use.
MATH operation is enabled.
The digital filter is enabled.
The SHIFT key was just pressed.
RATIO operation is taken.
Diode testing operation was initiated.
4-wire mode is selected for resistance measurement.
Continuity testing is enabled.
Front-panel display is turned off.
Second function is in use.
(2) The Power key
Power switch. The in position turns the instrument ON; the out position turns it OFF.
Figure 11: Power switch
(3) The function and operation keys
The front panel has keys that allow you to select various functions and operations.
Function
The function keys are white. Pressing a function key causes the instrument to perform a specific
function. For example, pressing the DCV function key selects the DC voltage function.
Operation
The operation keys are gray. Pressing an operation key causes the instrument to perform a specific
operation. For example, after selecting DC voltage function, press Config to enter the configuration
menu for the DC voltage function.
Shift key
The SHIFT key is blue. All keys have a shifted function or operation printed in blue above the key.
The SHIFT key allows you to perform the shifted function or operation.
