Model 2651A High Power System SourceMeter® Instrument User's Manual Section 3: Using the web interface

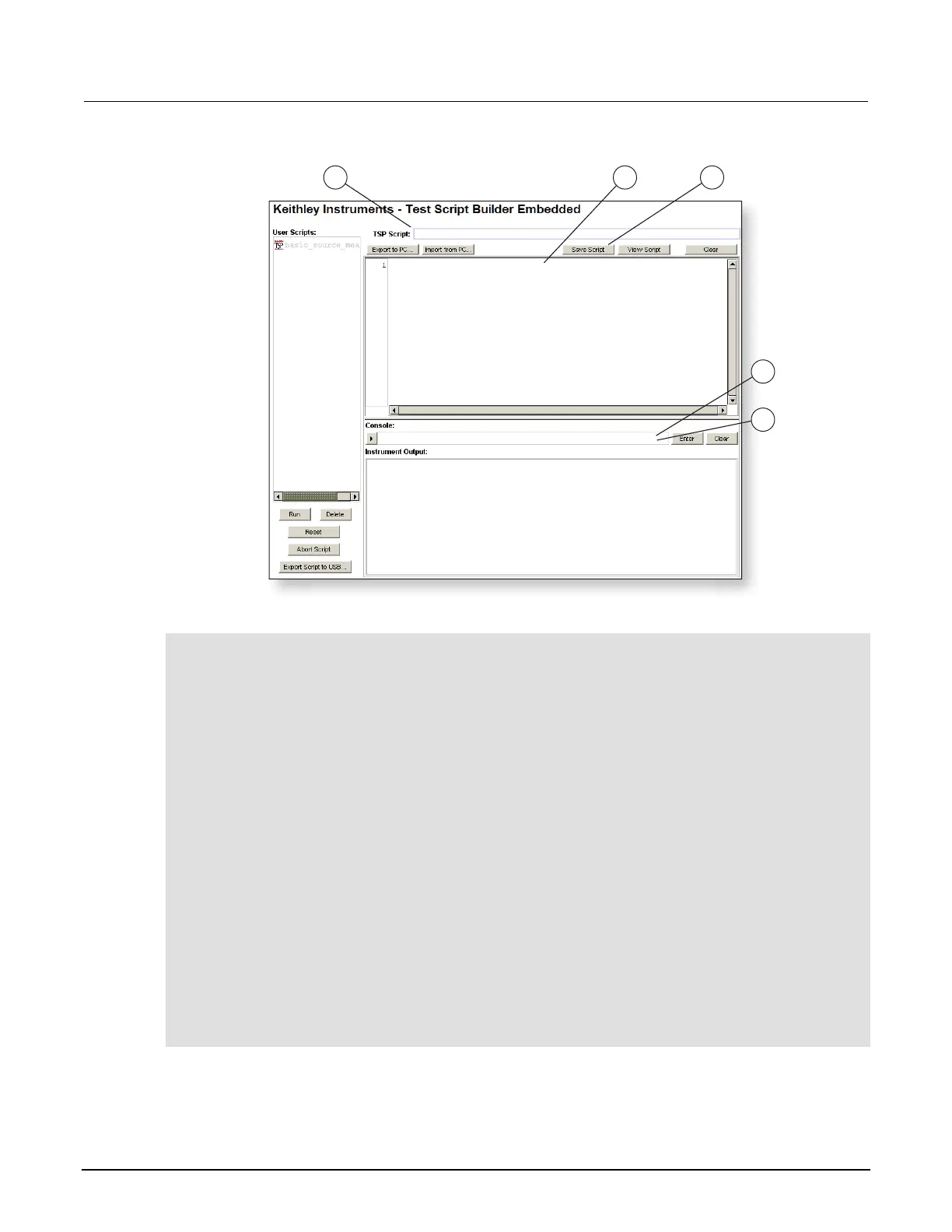

Figure 5: TSB Embedded page

basic_source_measure

basi

c_so

urce

_mea

-- Restore Model 2651A defaults...

smua.nvbuffer1.clear()

smua.nvbuffer1.appendmode = 1

1 2 3

3. Enter the code below in the script box (2).

-- Restore Model 2651A defaults.

smua.reset()

-- Select voltage source function.

smua.source.func = smua.OUTPUT_DCVOLTS

-- Set source range to auto.

smua.source.autorangev = smua.AUTORANGE_ON

-- Set voltage source to 5 V.

smua.source.levelv = 5

-- Set current limit to 10 mA.

smua.source.limiti = 10e-3

-- Set current range to 10 mA.

smua.measure.rangei = 10e-3

-- Turn on output.

smua.source.output = smua.OUTPUT_ON

-- Print and place current reading in buffer.

print(smua.measure.i(smua.nvbuffer1))

-- Turn off output.

smua.source.output = smua.OUTPUT_OFF

-- Beep.

beeper.enable = beeper.ON

beeper.beep(1, 1200)

beeper.enable = beeper.OFF
