Model 2651A High Power System SourceMeter® Instrument User's Manual Section 3: Using the web interface
Reading buffers
The Reading Buffers tab provides access to the Model 2651A reading buffers. The data used in this
example was created and placed in the buffer by the Exercise: Create and run a script with TSB
Embedded (on page 3-4).
Exercise: Retrieve readings from a buffer
To retrieve readings from a populated buffer:

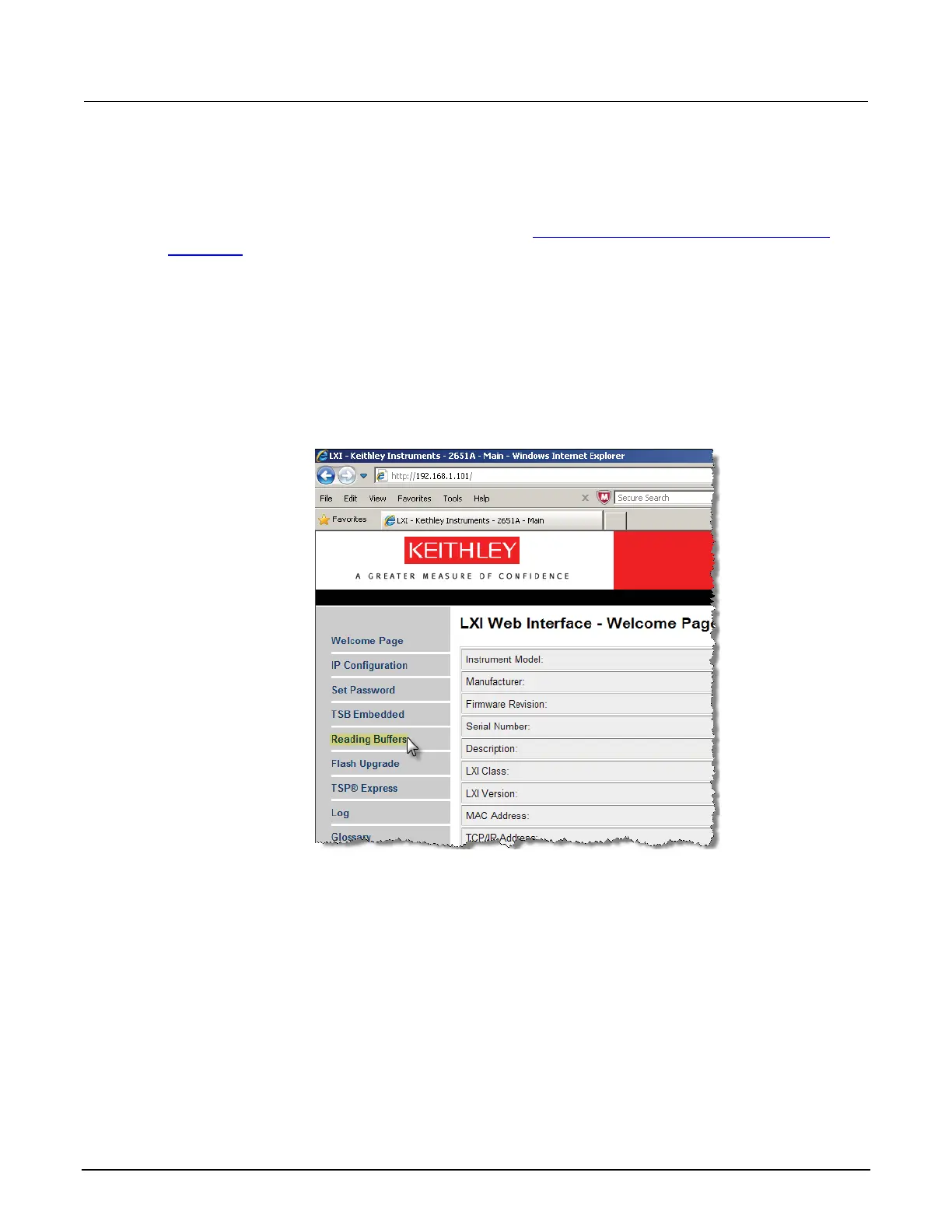

1. From the navigation area on the left side of the web interface, select Reading Buffers. The
Reading Buffers embedded page is displayed.
Figure 6: Select reading buffer
2. Select smua.nvbuffer1 (1).
3. In the Recall Attributes area (near the bottom of the page), select Values and Time Stamp (2).
4. Click Download (3). The table displays the present buffer data.
2651A-900-01 Rev. A / March 2011 3-7
